S470Pro 2500V Anti-Burn Analog Multimeter High-Precision Multimeter w/ Strong Magnets Hanging Holes

S470Pro 2500V Anti-Burn Analog Multimeter High-Precision Multimeter w/ Strong Magnets Hanging Holes

Features:

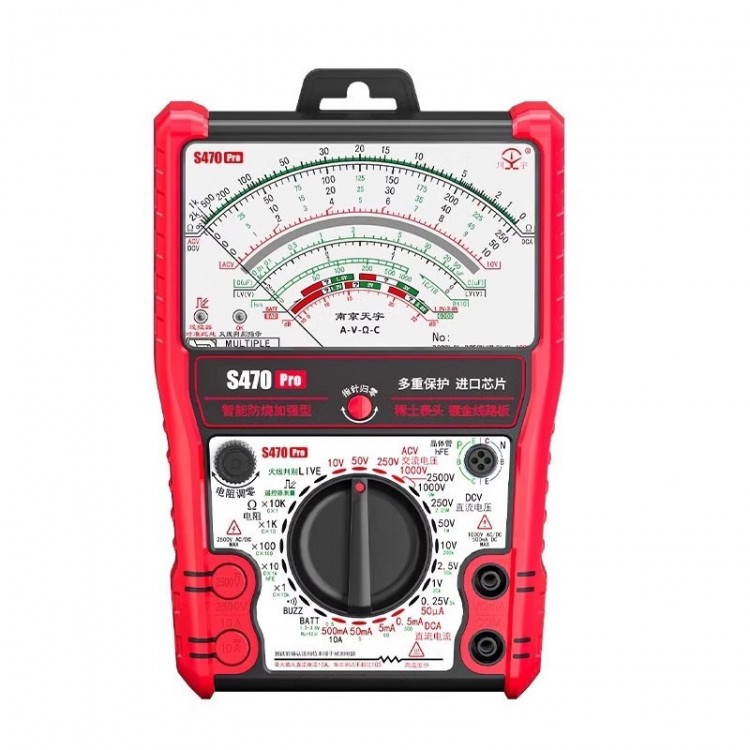

S470Pro Analog Multimeter
* Smart Anti-Burn Enhanced Multimeter
* Rare-Earth Meter Movement
* Gold-Plated Circuit Board
* Imported Chip

Multiple Testing Functions
* Resistance Measurement
* Voltage Measurement
* Current Measurement
* Transistor hFE Test
* Diode Testing
* Battery Testing
* Live Wire Detection
* Remote Control Testing
* Continuity Test with Buzzer
* Frequency Measurement
* Capacitance Measurement
* High-Precision Meter Movement

Multiple Circuit Protections for Safe Measurement
* It incorporates multiple protection features including self-fusing over-voltage/over-current protection circuits and meter movement overload protection.

Copper Test Leads
* Nickel-plated surface is for more convenient and accurate measurements.
* Suitable for various appliances, small electronic components, circuit maintenance, and testing.

Built-in Fuse for Smart Anti-Burn Protection
* It comes with one built-in fuse and two spare fuses for easy replacement.
* Note: The fuse is designed for unexpected current overload protection during measurement. The burn-proof function relies on a self-recovery resistor.

High-Definition Scale Dial
* It ensures more accurate data reading.
* Clear markings make it easy to read values effortlessly.
* The carbon pointer shaft prevents pointer bending due to overload, reducing measurement errors.
* Before use, check whether the pointer is aligned with the mechanical zero. If not, adjust it using the zero-adjustment knob on the dial cover.

Adjustable Foldable Stand for Easy Portability
* The hidden stand can be folded away when not in use. When in use, the angle is adjustable for better viewing and convenience.

Shockproof & Drop-Resistant Insulated Rubber Sleeve
* Rubber-coated sides provide a comfortable grip while offering excellent shock and drop protection.

Strong Magnetic Back for Hands-Free Operation
* Three strong magnets on the back allow easy attachment to metal surfaces, freeing your hands during measurement.
* In addition to the magnets, the back also includes hanging holes for added convenience.

Multi-Range Measurement with Precise Gear Switching
* When turning the dial, the positions are precise with no slack between ranges.
* Clear range labels, firm clicks, and a smooth, non-slipping rotation enhance user experience.

Imported Chip and Gold-Plated PCB
* It features a fiberglass double-sided through-hole gold-plated PCB, a bidirectional diode clamping circuit, and a self-resetting fuse design.
* The wiring is neatly arranged and solder joints are secure.
* It is also equipped with a precision rare-earth internal magnetic meter movement.
* It meets product standards to prevent measurement errors that could damage the meter.

Rare-Earth Internal Magnetic Meter Movement
* It is built with a rare-earth internal magnetic structure: lightweight, high magnetic strength, fast damping, and strong anti-interference capabilities.

Friendly Reminder:
* The anti-burn analog multimeter is a relatively delicate measuring instrument. When the temperature is too low (below 10°C), the anti-burn function may fail, increasing the risk of damage. If you encounter this issue, please contact our customer service.

Packing List:
* 1 x Multimeter
* 2 x Test leads
* 1 x User manual
* 3 x Fuses

Packaging Details:
* Weight: 0.43kg

Note:
* 2pcs AAA batteries are not included.
