2500V Pointer Multimeter (MF47L w/ External Magnet Meter Movement & Carrying Case for Zener Diode)

2500V Pointer Multimeter (MF47L w/ External Magnet Meter Movement & Carrying Case for Zener Diode)

Description:
The MF47 series pointer multimeter is a multifunctional, multipurpose, and multi-protection series product developed based on the original MF47 model. The functions have been optimized and combined according to the characteristics of various types of users, making it more convenient for users to operate. Personnel engaged in computers, electrical equipment, household appliances, and electronic and electrical engineering—such as factory workers, school researchers, production staff, maintenance, and repair technicians—can all find suitable products within the MF47 series.

Features:
Analog Multimeter
* Precise measurement
* Meticulous attention to every detail

Powerful Functions
* DC current
* AC/DC voltage
* DC resistance
* Standard resistance box
* Battery level measurement
* Transistor DC current gain (hFE) measurement
* Multi-protection circuit

High-Performance Precision Circuit Board
* High reliability, low power consumption, and multi-protection circuit

Analog Multimeter
* Classic anti-burn design, rare earth meter movement, precise measurement, high safety, and powerful functions

Application Scenarios
* Home appliance repair
* Scientific research and education
* Property maintenance
* Factory electrical work

Clear Instrument Dial
* The dial's numeric scale is clear. Carbon pointer tube prevents deformation caused by overload that could lead to measurement errors.

High-Quality Range Selector Knob with Accurate Positioning
* The knob rotates smoothly with precise position stops, no gaps between ranges. With strong tactile feedback.

Self-locking Stand for Convenience and Practicality
* Innovative dual-use stand design for hanging or inclined positioning, making it easier to use.

Fuse with Easy Replacement Design
* This series comes with two fuses.

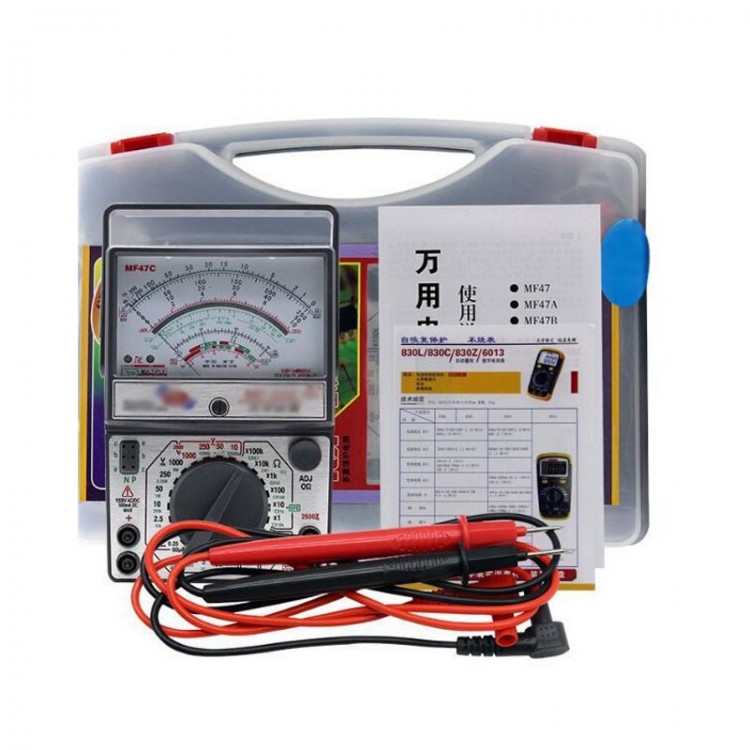

Packing List:
* 1 x MF47L multimeter
* 1 x User manual
* 1 x Pair of test leads
* 2 x Spare fuses
* 1 x Plastic carrying case

Packaging Details:
* Weight: 0.52kg

Precautions:
Although the multimeter incorporates advanced self-fusing over-voltage/over-current protection circuits and meter movement overload protection, strict adherence to the following operating procedures is essential to prevent accidents:
* When measuring high voltage or large current, switch the range only after the power is turned off to avoid damaging the switch.
* When measuring unknown voltage or current, always start by selecting the highest range. After the first reading, gradually switch to a lower appropriate range to get a more accurate reading and avoid damaging the circuit.
* If the fuse occasionally burns out due to overload, you can open the side cover of the multimeter to replace the fuse. Two spare fuses of the same model, rated 0.5A/250V, are included.
* When measuring high voltage, stand on a dry insulating board and operate with one hand to prevent accidents.
* The resistance measurement range is powered by a dry battery. Regularly check and replace the battery to ensure measurement accuracy. When not in use, turn the meter off or set it to the highest voltage/current range. Remove the battery if unused for an extended period.
* The multimeter should be stored and operated in environments where the ambient temperature ranges from 0 to 40°C, the relative humidity does not exceed 80%, and the air is free of corrosive gases.

Note:
* Batteries are not included.
