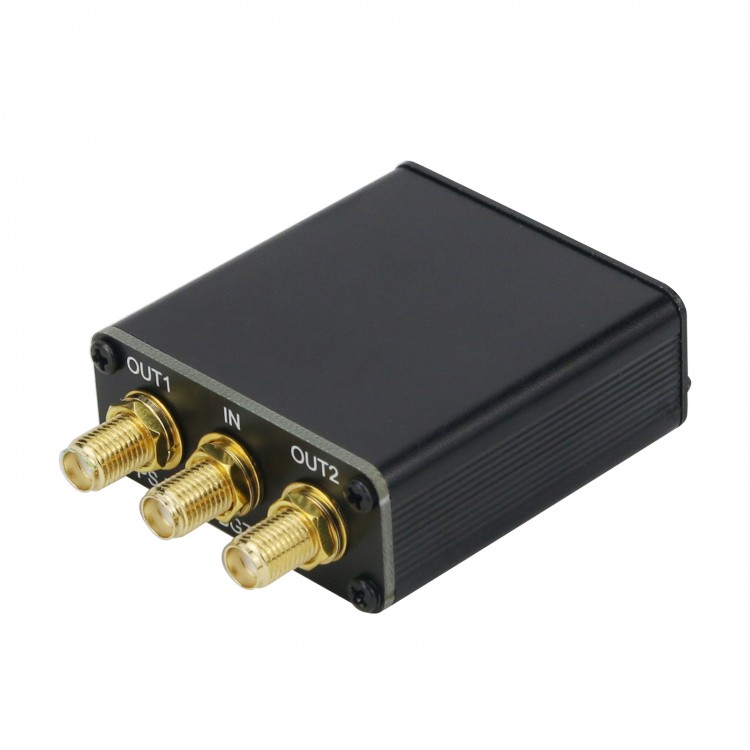

PS-DC-2 Power Divider Module Two-Way RF Power Splitter DC-3.6G Broadband 1 IN 2 OUT w/ SMA Connector
Specifications:
- Model: PS-DC-2
- Item name: Two-way power divider
- Frequency range: 1dB bandwidth: DC-3.6G
- Insertion loss: 6dB
- Output port isolation: 6dB
- Allowable power: 25dBm
- Port impedance: 50 ohms
- Interface: SMA
- Others: terminal block DC, withstand voltage 25V
- Size: 70 x 45 x 18.5mm/2.8 x 1.8 x 0.7" (L*W*H)
- Weight: 50g
Package Included:
- 1 x Power Divider
