PX4FLOW Optical Flow Sensor Space Optical Alignment Sonar Ultrasonic Diastimeter for PX4 Pixhawk

Availability: Out Of Stock

  • Price:$120.06
  • Price in reward points: 1201 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.66 $115.26 $111.66 $106.85 Contact US
Quantity:

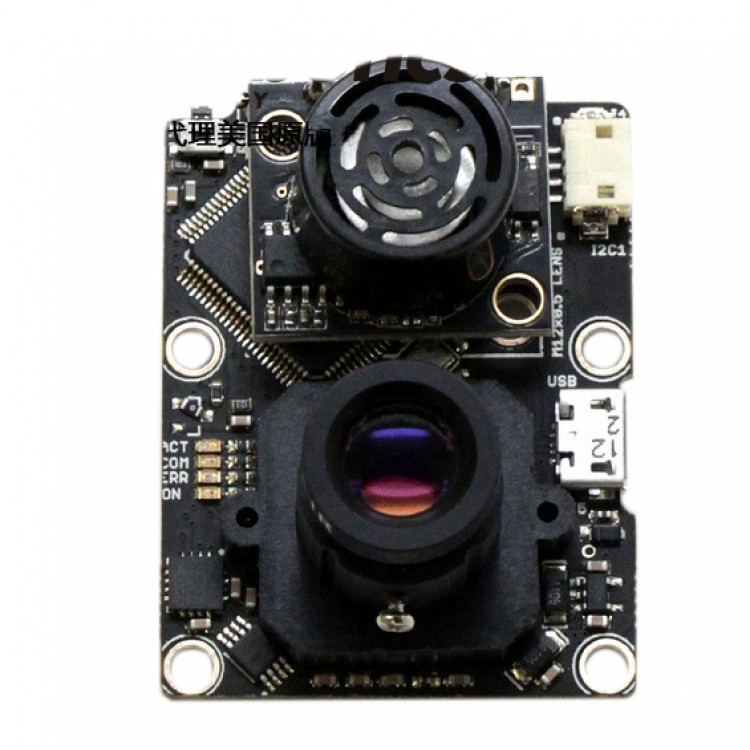

PX4FLOW  Optical Flow Sensor Space Optical Alignment Sonar Ultrasonic Diastimeter for PX4 Pixhawk

Description:

- This version of optical module is the same with 3DR PX4FLOW V1.31, it should work with PX4 firmware, APM firmware can not work with this module
- The software part is not very mature, sonar setting height is stable, but the optical positioning effect is normal, so the user should possess certain basic knowledge
- Our shop can not provide technical support
- This module has beed welded high precision sonar, the image and optical value detection is OK, adopting 6pin cable to connect PIXHAWK TELEM2 and optical module UART3

Features:
- MT9V034 machine vision CMOS sensor with global shutter
- Optical flow processing at 4×4 binned image at 120 (indoor) to 250 Hz (outdoor)
- Superior light sensitivity with 24×24 μm super-pixels
- Onboard 16bit gyroscope up to 2000°/s and 780 Hz update rate, default high precision-mode at 500°/s
- Onboard sonar input and mount for Maxbotix sonar sensors. PX4 Flow comes with the sonar already mounted and installed. MB1043
- USB bootloader
- USB serial up to 921600 baud (including live camera view with QGroundControl)
- USB power option
- Note: PX4Flow is not currently supported by APM:Plane, APM:Copter, and APM:Rover firmware.

Package Include:
- PX4FLOW Board *1
- HRLV-Massonar MB1043 *1
- 6pin to 6pin 1.25mm connection leads *1
