PZEM-022 100A 6-in-1 AC Power Monitor AC Power Meter + Solid Core CT for Voltage Current Frequency

PZEM-022 100A 6-in-1 AC Power Monitor AC Power Meter + Solid Core CT for Voltage Current Frequency

Specifications:
- Power test range: 0~22000W. Minimum tested power: 0.5W
- Energy consumption test range: 0-999KWh
- Voltage test range: 80-260V
- Current test range: 0-100A. Minimum measured current: 0.02A
- Frequency test range: 45~65Hz
- Power factor test range: 0-1PF
- Working voltage: 80-260VAC
- Rated power: 100A/22000W
- Working frequency: 45~65Hz
- Metering progress: Level 1.0

Button Operation:

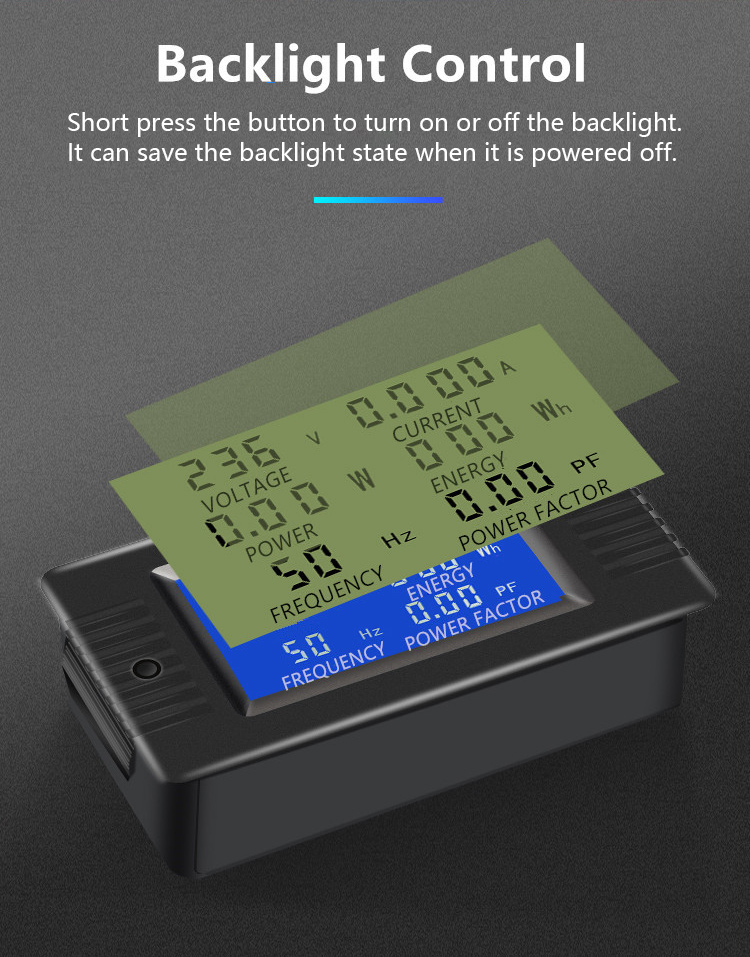

1. Backlight control
Short press the button to turn on or off the backlight. It can save the backlight state when it is powered off.

2. Reset energy
Step 1: Long press the key for 5 seconds until the energy value flash, and then release the key.
Step 2: Short press the key again, then the energy value will be cleared and exit the reset flashing state.
Step 3: If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.

3. Set power alarm threshold
Step 1: Long press the key for 3 seconds until the LCD screen displays "SET CLr" and then release the key to enter the setting state.
Step 2: Power window displays the current power alarm value and the last digit begins to flash, then you can short press the button to add 1. When there is no operation over 3 seconds, it will switch the digit position automatically, and the setting method is as same as the above.
Step 3: After the setting is finished, long press the key over 5 seconds and it will save automatically and exit. The range of active power threshold is 0.0～22kW.

Attention:

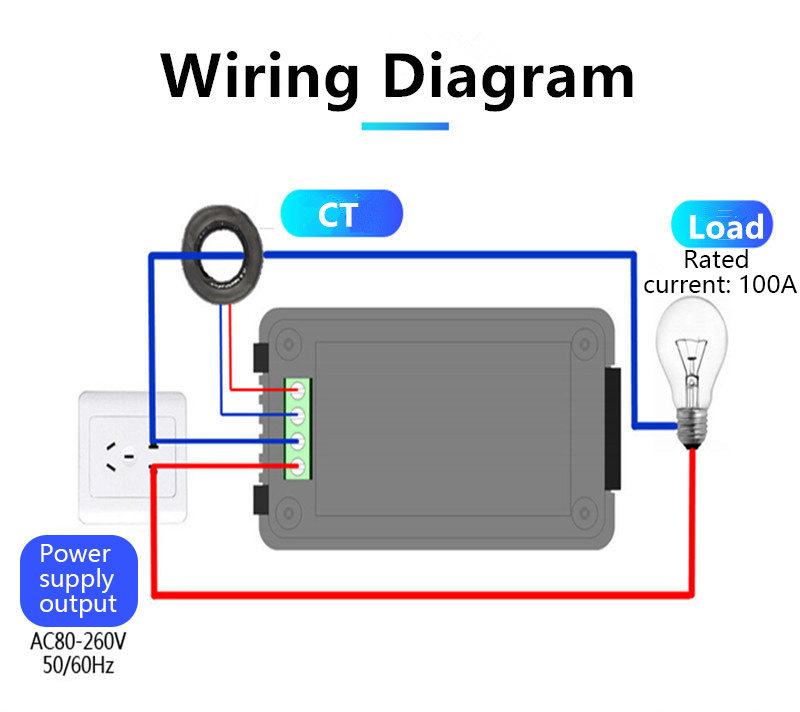

- The wiring order must be correct.
- Applied load cannot exceed the rated power.
- This module is suitable for indoor use, not outdoor use.

Package Included:
- 1 x Power Monitor
- 1 x Solid Core CT

Note:
- English is the default language. If you need one in Japanese or in Russian, please leave a message.
