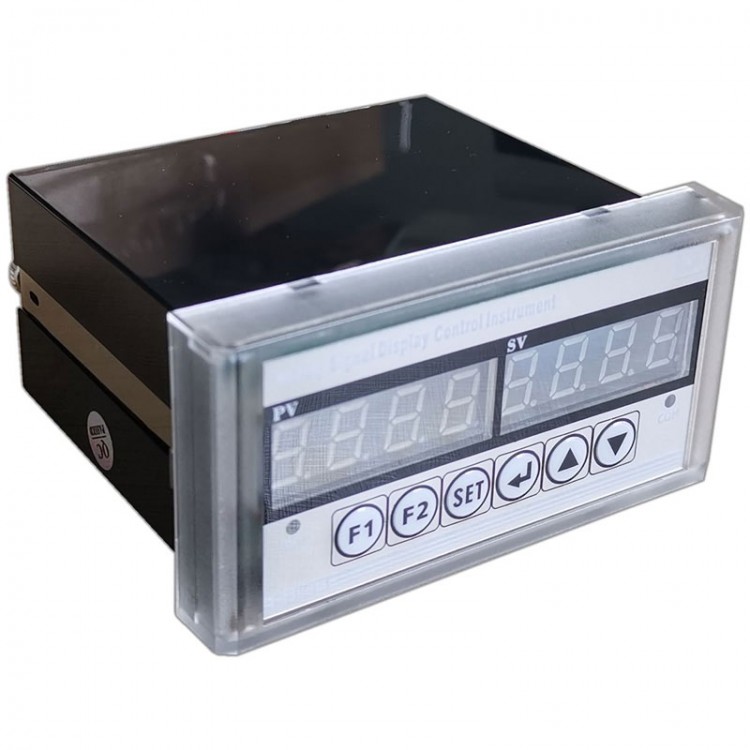

• Q03H01A 0-5-10V Signal Generator Digital Display Meter for Valve Opening Control (Voltage Signal Input and Output)

Q03H01A 0-5-10V Signal Generator Digital Display Meter for Valve Opening Control (Voltage Signal Input and Output)

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.68
  • Price in reward points: 207 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.27 $19.85 $19.23 $18.41 Contact US
Quantity:

Q03H01A 0-5-10V Signal Generator Digital Display Meter for Valve Opening Control (Voltage Signal Input and Output)

Features:

- Voltage signal input and output, generator and digital display meter two in one;
- Global universal input voltage power supply;
- One channel relay alarm function, which acts when the feedback input value reaches the triggering condition;
- On site manual adjustment + RS485 remote control;
- Application: valve opening control, frequency converter control, constant voltage control, etc.

Specification:
- Power supply: AC220V (85 - 264VAC)/DC24V 5W
- Output: 0 - 10V (you can set it to 0 - 5V or 0 - 10V)
- Input: 0 - 10V (you can set it to 0 - 5V or 0 - 10V)
- Communication: for Modbus RTU (RS485)
- Switch: 1-channel relay (10A/250VAC 30VDC)
- Working temperature: 0 - 40℃
- Relative humidity: <80%

Package Included:
- 1 x Host
