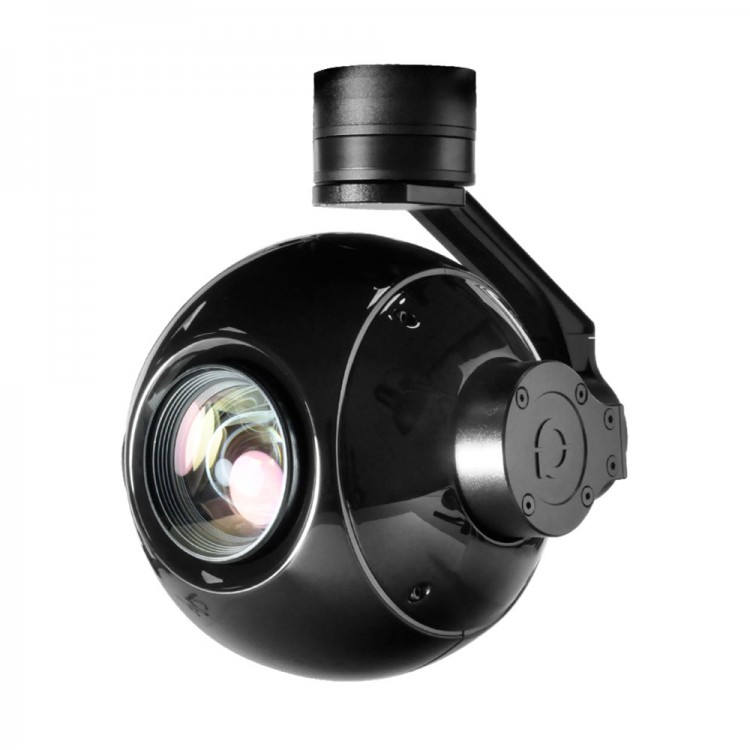

Q30F Zoom Camera Gimbal Camera Payload Stabilizer Zoom 30X Zoom Gimbal Self Stabilized Camera for RC UAV Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$2,499.00
  • Price in reward points: 24990 Reward Points: 250
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $2,449.02 $2,399.04 $2,324.07 $2,224.11 Contact US
Quantity:

Q30F Zoom Camera Gimbal Camera Payload Stabilizer Zoom 30X Zoom Gimbal Self Stabilized Camera for RC UAV Drone


Specifications

- Hardware Parameter:
- Working voltage : 12V ~ 16V
- Input voltage  :3S ~ 4S
- Output voltage: 5V (connect with PWM)
- Dynamic current :450mA @ 12V
- Idle current : 330mA @ 12V
- Power consumption :≤5.4W
- Working environment temp.: -20℃ ~ +50℃
- Output     micro HDMI (HD output 1080P 60fps) : Analog
- Local-storage  : SD card (Up to 32G, class 10, FAT32 or ex FAT format)
- Control method :PWM  / TTL

Gimbal Specification:

- Pitch/Tilt  : ±90°
- Roll  : ±85°
- Yaw/Pan :  ±150°
- Vibration angle : Pitch/Roll: ±0.02°, Yaw:±0.03°
- One-key to center  :  √

Camera Specification:

- Imager Sensor:1/3inch CMOS
- Total pixel :4MP
- Effective pixel : 2688*1520
- Dynamic range:65dB
- Lens:5MP
- Optical zoom:30x, F=4.5~135mm
- Min object distance:1.5M
- Viewing angle:Horizontal: 54.8°(Wide end) ~ 3.4°(Tele end)
- Vertical: 41°(wide end) ~ 2.5°(tele end)
- Focus: 66.6°(wide end) ~ 7.2°(tele end)
- Sync system:Progressive scanning
- Local video:1080P 30fps local TF card
- HD output:1080P/720/480P 60fps HDMI1.4
- AV output:Standard CVBS 1Vp-p
- S/N ratio :38dB
- Min illumination:Color 0.05lux@F1.6
- Backlight compensation :Backlight compensation/strong light inhibition
- Gain :Auto
- White balance : Auto/Manual
- Shutter speed : Auto
- Control system:UART/IR/PWM
- Communication protocol:PELCO-D, Hitachi protocol or VISCA
- Focus: Auto/Manual/One-time automatic focus
- Focus speed :2s
- Lens initialization:Built-in
- User presetting bit :20 sets
- Image rotation :180°, Horizontal/Vertical mirror image
- OSD:Not support
- Fotoformate :JPEG
- Videoformate :MP4

Packing Information:
- N.W.    670g
- Product meas.    121*147*154.8mm
