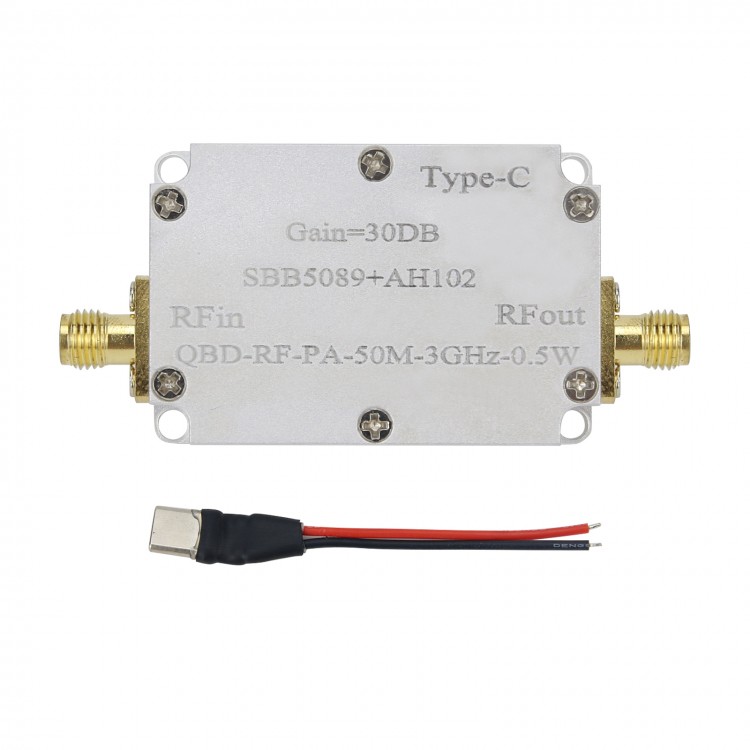

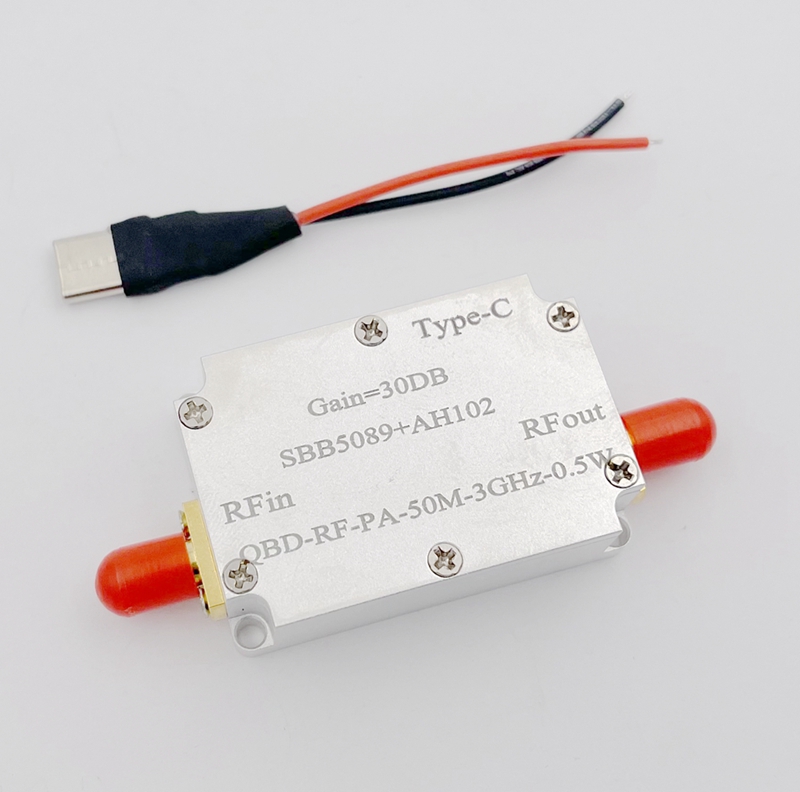

QBD-RF-PA-50M-3GHz-0.5W RF Power Amplifier RF Power Amp Module for Signal Amplification
Application Scenarios:
1. Video transmission and GPS signal amplifier
2. FM transmission, Bluetooth transmission, and telemetry radio module transmission
3. Electromagnetic compatibility transmitter system
4. Software radio transmitter
Parameters:
* Power supply: +7 to +9V TYPE-C cable; (red and black lines) voltage limit 11V
* Module frequency range: 50M-3GHz (narrowband power amplifier)
* Gain: 30DB

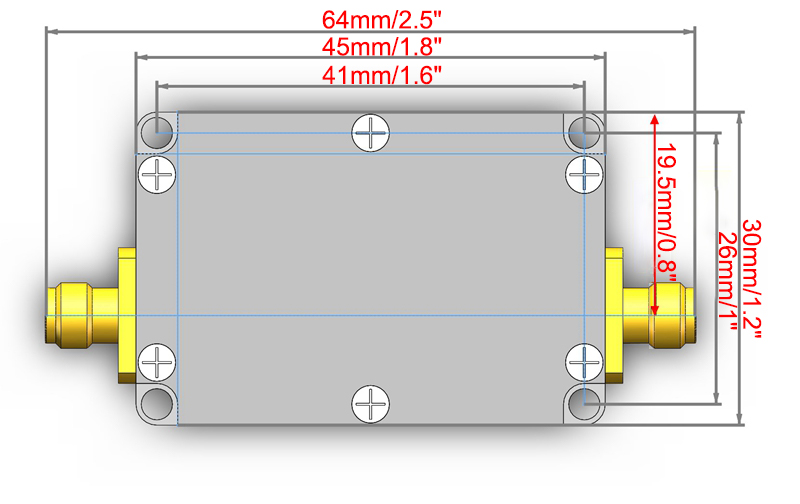

* Size: 4.5 x 3 x 1.4cm/1.8 x 1.2 x 0.6" (without size of SMA)
* Net Weight: 66G/0.1LB (including the amplifier and cable)
* Current: 0.5A (9V/0.5A)
* P1dB=27dBm at 1GHz (0.5W)
* Output interface: SMA female connector
* Input and output impedance: 50Ω
Package Included:
* 1 x RF Power Amp
* 1 x Type-C Cable
