| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $135.38 | $132.61 | $128.47 | $122.94 | Contact US |

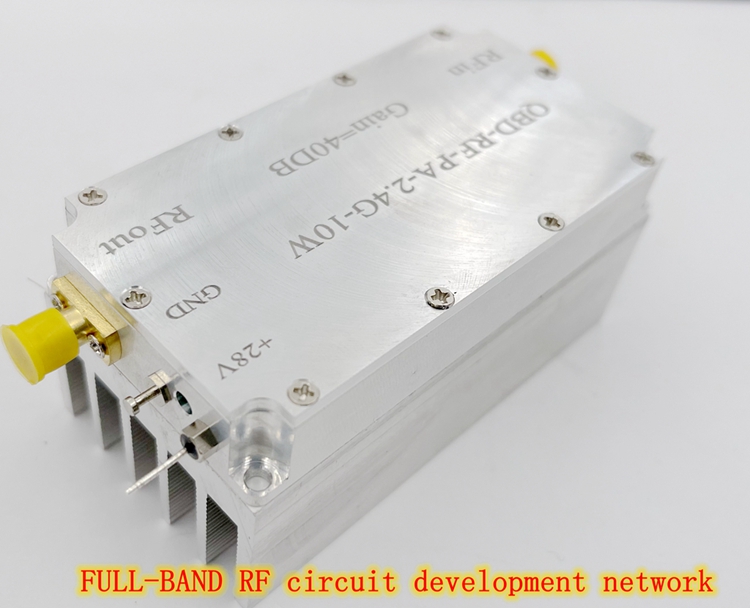

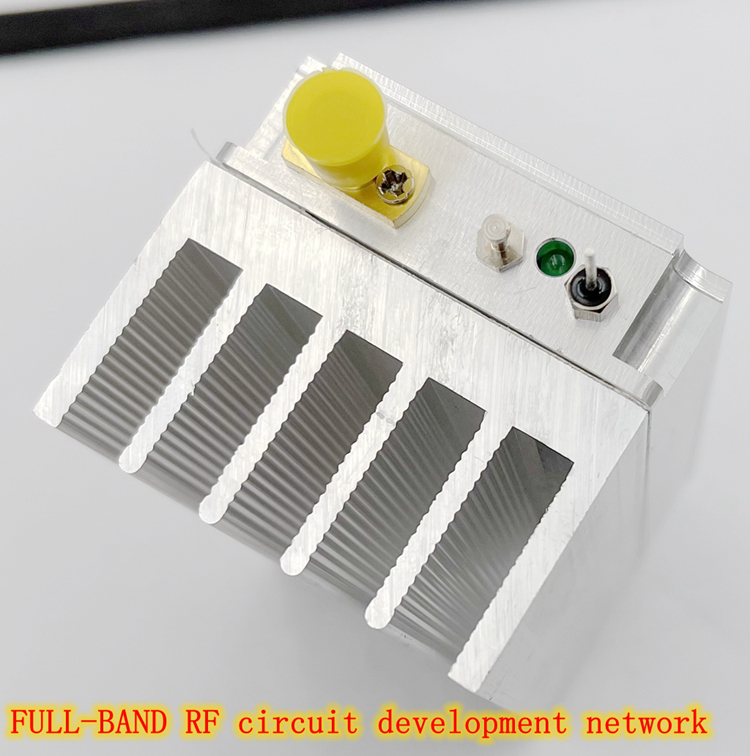

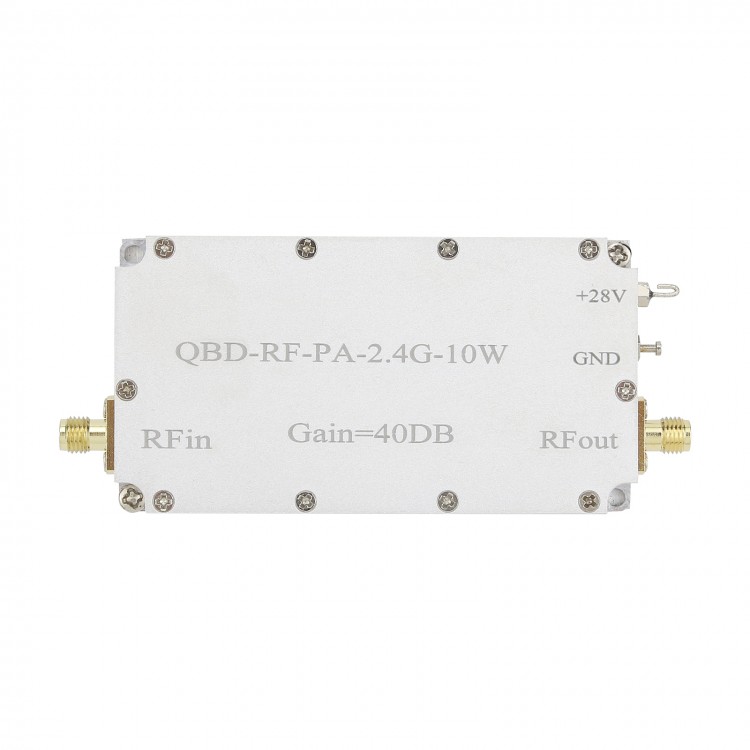

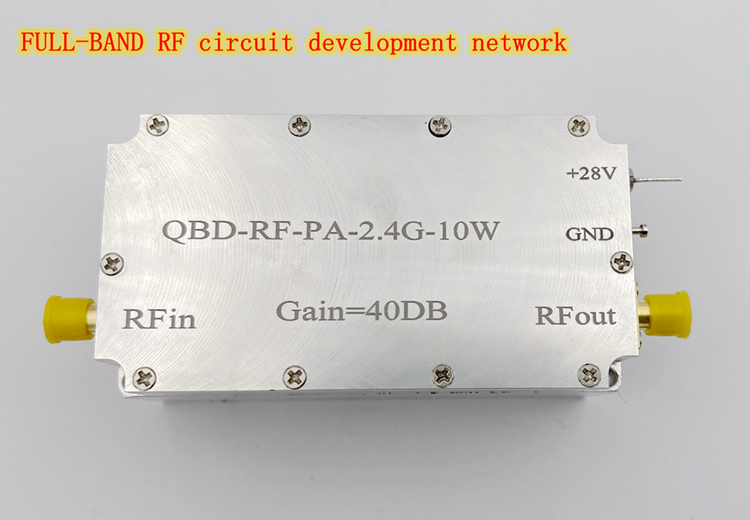

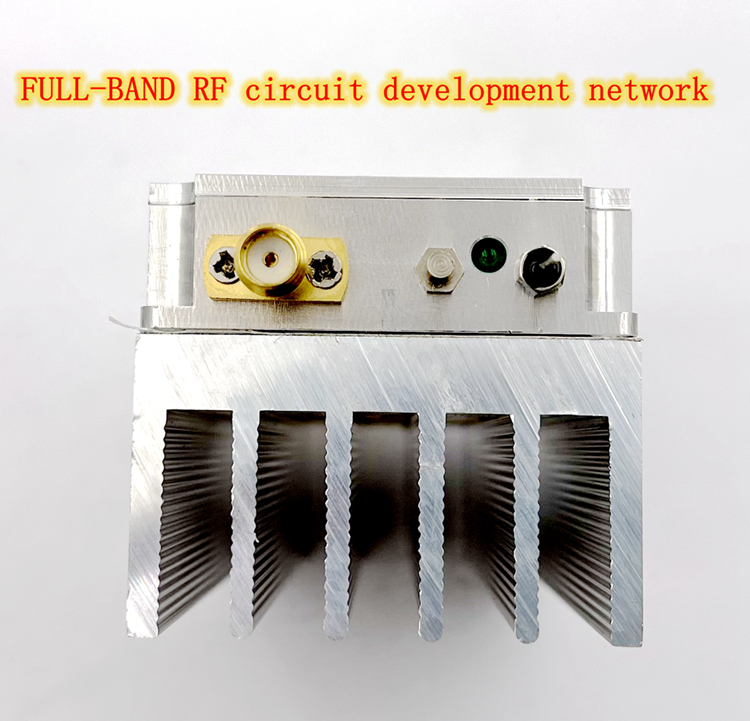

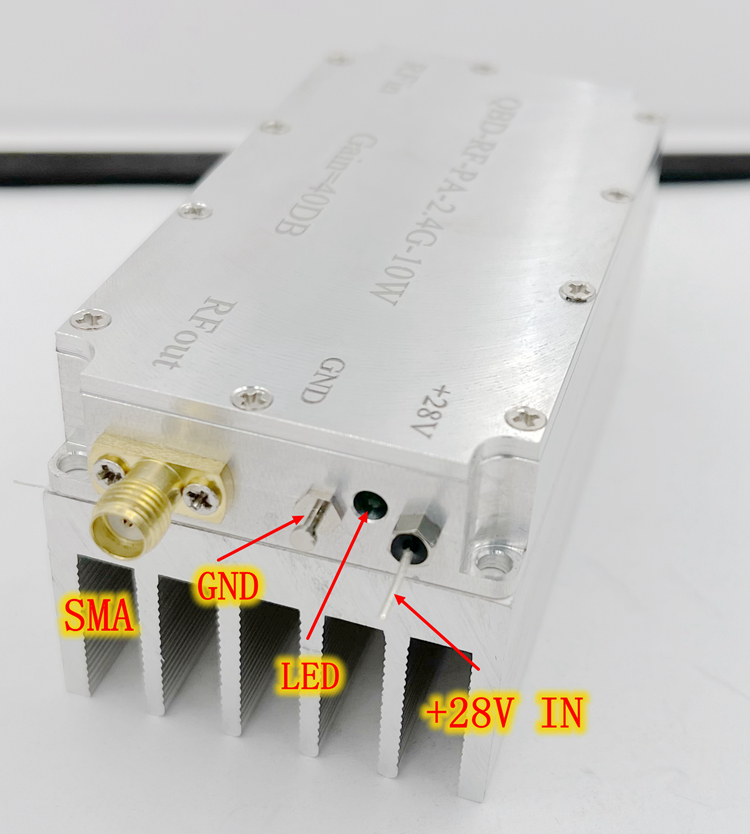

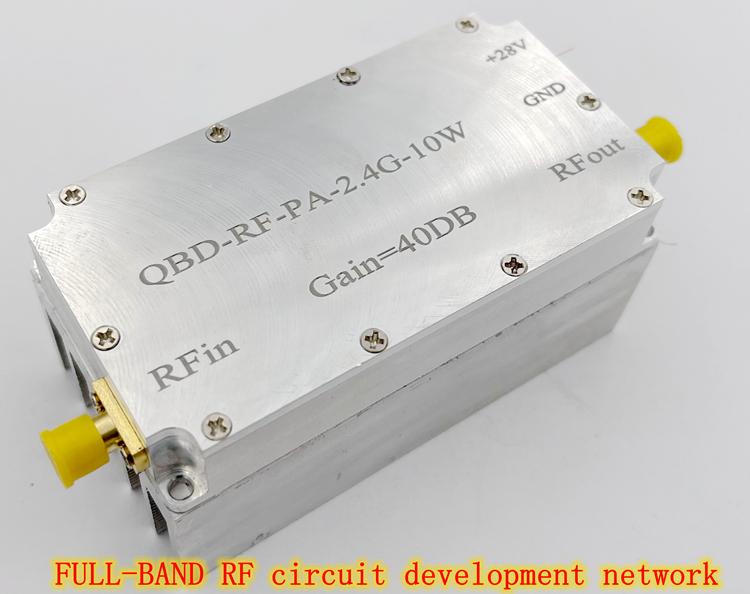

QBF-RF-PA-2.4G-10W RF Power Amplifier One-Way RF Power Amp Featuring 40DB Gain
Parameters:
1. Frequency range: 2.4-2.5GHz
2. Input and output interface: 50Ω; SMA connector (female)
3. Power supply: +28V (1A)
4. Maximum output power: 40dBm (10W)
5. Gain: 40DB
6. Maximum input signal amplitude: 0dBm
7. Size: 85 x 45 x 41mm/3.3 x 1.8 x 1.6" (excluding protruding SMA and feed-through capacitors)
8. Net weight: 250G/0.6LB
Package Included:
- 1 x RF Power Amplifier
