| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $42.30 | $41.43 | $40.14 | $38.41 | Contact US |
QCC5125 Bluetooth Decoder Board PCM 1794 Decoding Chip Bluetooth5.1 Support LDAC with Antenna Kit
Description:
- JC-BT1794 Bluetooth decoding board adopts QCC5125 Bluetooth 5.1 scheme, and supports LDAC (24Bit/96Khz) for APTX-HD (16Bit/48Khz), for APTX (16Bit/44.1Hhz), for ACC (16Bit/44.1Hhz) for SBC (16Bit/44.1hz) protocols. PCM1794 decoding chip (commonly used for fever level CD player), 3 dual op amps, and dual 15V power supply is used for op amps. The resistance of the analog audio circuit adopts the cylinder wafer resistance, which has higher power and higher accuracy, and is good for sound quality. The motherboard adopts multistage voltage stabilization and independent power supply, and the capacitor filter adopts imported original frosted black military grade PCB board, with low internal resistance and strong toughness.
Note:
- The motherboard must be powered by DC 5V 2A or above. Don’t use an AC power supply. For 5V power supply, it must be 2A and above, and for 12V-24V, it must be 1A and above.

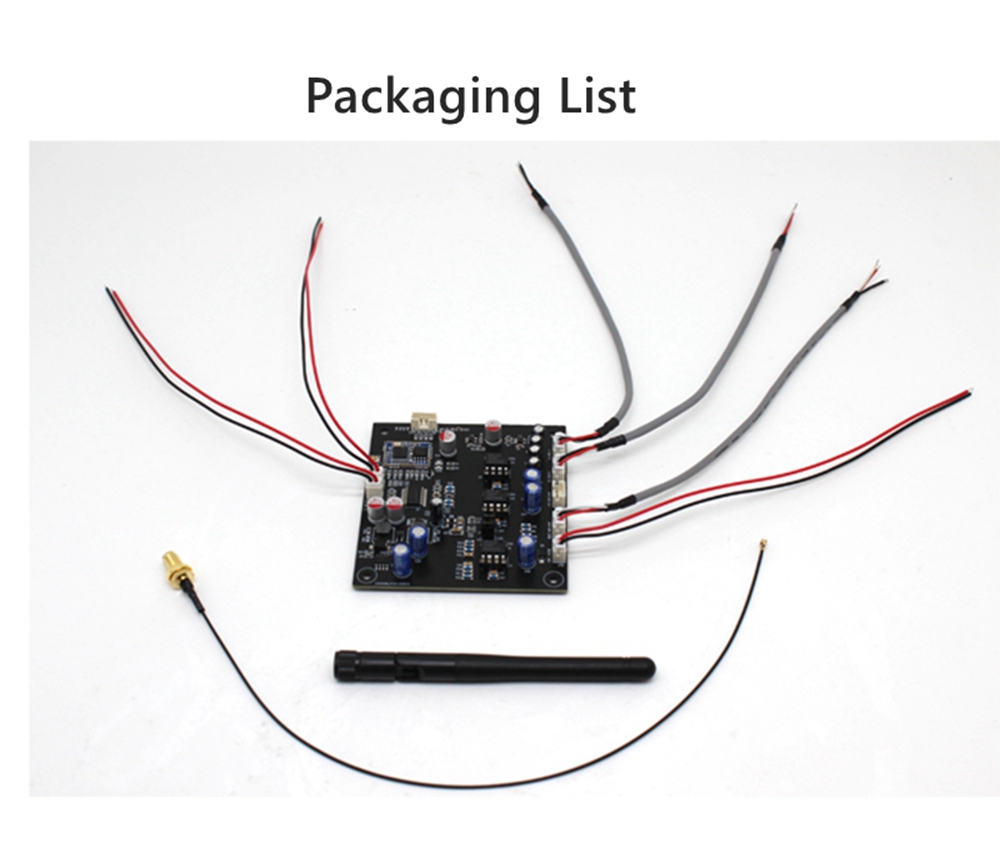

Package Included:
- 1 x Board
- 3 x Power cable
- 3 x Audio cable
- 1 x Antenna kit
