DA-5.1H DTS Home Theater 5.1H DSD256 Decoder Bluetooth5.1 Power Amplifier with 2.4-inch OLED Support Dual Power Supply

DA-5.1H DTS Home Theater 5.1H DSD256 Decoder Bluetooth5.1 Power Amplifier with 2.4-inch OLED Support Dual Power Supply

Description:
- With 5.1 speaker, the living room instantly transforms into a home theater, bringing a realistic sense of presence and allowing you to feel the surround sound of multiple directions, as if you were in a movie theater.
- Supports dual power supply, DC15-24V, when the main power supply is insufficient, it is used as power compensation.
- Supports DSD256 master level player.
- TPA3116 x 3 power amplifier chip, 60W x 6 output, equipped with 3 TPA3116 power amplifier chips, low distortion and high signal-to-noise ratio, providing clear and delicate audio experience, reducing power consumption and heat loss, and extending power amplifier life.
- The decoding chip ES9018 x 3, combined with HiFi level decoding technology, supports 32bit/192kHz lossless audio analysis and restores high-quality audio sources with rich details.
- QCC5125 Bluetooth chip, supports for LDAC, low latency, and allows you to enjoy music anytime.
- DSP digital audio processing technology, professional audio processing chips, with richer details and distinct levels, making it feel like being on site. An amplifier with a DSP chip provides better sound effects than a regular amplifier. The parameters of each channel can be adjusted through a computer, so the sound will be much better than a regular amplifier without a DSP chip.
- Bluetooth, fiber optic, coaxial, USB flash drive/hard drive, SD card multifunctional input/output, explore the diversity of modern audio devices.
- Fiber coaxial input, convenient upgrade for home audio systems; High definition audio transmission is used to connect devices such as televisions, sound systems, and game consoles. It has strong anti-interference ability, is free from electromagnetic interference, is easy to install and maintain, and does not require professional technical support.
- The number of channels can be adjusted, and the output channel mode of the amplifier can be freely switched. HiFi-2.0/2.1/3.1/4.1/5.1 can be easily switched and used.
- Wireless control: infrared remote control, no pairing required, and can achieve 10 meter remote control.
- Intuitively control precise tuning, simplify complexity, and explore the convenience and charm of large knob tuning for equipment; Rotate left and right to adjust the volume, short press to mute, long press to enter sound settings.
- Meeting the needs of various scenarios such as home theater and high fidelity listening, we provide you with a flexible and versatile music experience.
- The multifunctional control buttons are made of high-quality metal to ensure durability and texture. The circular damping sensitive button may make a slight sound when pressed and released, which can increase the sense of ritual in operation.

Specification:
- Model: DA-5.1H
- Bluetooth version: 5.1 (support for LDAC)
- SNR: ≥98.5dB
- Rated output power: 60W x 6 (4ohms)
- Speaker impedance matching: 4 - 8ohms
- Supported music file format and maximum sampling rate:
  WAV: 384kHz/32bit
  FLAC: 192kHz/24bit
  APE: 48kHz/16bit
  DFF: DSD256
  MP3: 48kHz/16bit
  ISO: DSD256
  DSF: DSD256
  DTS: support
- USB flash drive/hard drive format: FAT132, exFAT
- Hadr drive format: up to 2TB
- USB flash drive/SD card capacity: up to 512G
- File system: not supporting multiple partitions
- Firmware upgrade: support USB flash drive upgrading
- Power amplifier output channel options: 2.0/2.1/3.1/4.1/5.1
- Optical/coaxial supported maximum sampling rate: PCM192kHz/32bit
- CUE play: support for WAV, APE, FLAC
- Working voltage: DC 15 - 24V
- Power supply parameter: 100 - 240V
- USB interface: support USB3.0 and below
- SD interface: support CLASS10 and above
- RCA rated output level: 2V
- THD+N: ≤0.04%
- Audio input: Bluetooth + USB flash drive (hard drive) + SD card + optical fiber + coaxial
- Audio output: 5.1 channel + RCA output
- Product size: 154 x 228 x 46mm
- Net weight: 1.22kg

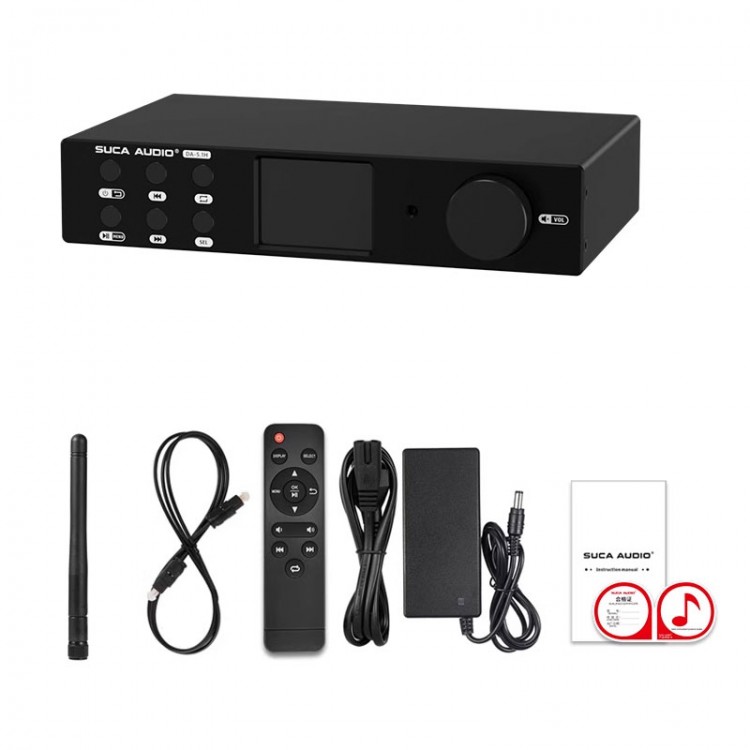

Package Included:
- 1 x Power Amplifier
- 1 x Bluetooth Antenna
- 1 x Optical Fiber Cable
- 1 x Remote Control
- 1 x DC 24V Power Adapter
- 1 x User Manual
