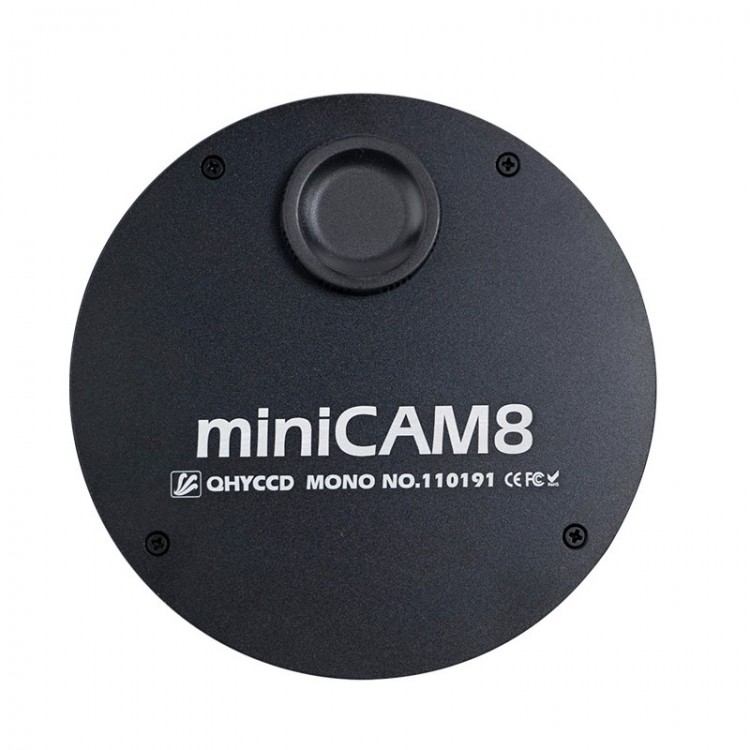

QHYCCD Black MiniCAM8M IMX585 CMOS Portable Astronomical Planetary Mono Camera Support Linear HDR Mode
Description:
- At just over 4 inches in diameter and a few inches thick (IMX585), the new miniCAM8M is a compact, high-resolution, high-performance, cooled imaging system capable of exceptional, high-quality deep space images as well as high-quality, high-resolution planetary images.
- So often, compactness in astroimaging is achieved at the expense of some other critical feature found in multi-component cooled systems, such as sensor quality or thermoelectric cooling, etc. Such is not the case with the new miniCAM8M. Based on IMX585 8 MP sensor for Sony, the miniCAM8M includes full TE cooling capable of reaching a delta of -45℃ from ambient along with a built-in 8-position filter wheel for complete LRGB and narrowband imaging.
Specification:
- Model: miniCAM8M
- CMOS sensor: for Sony IMX585

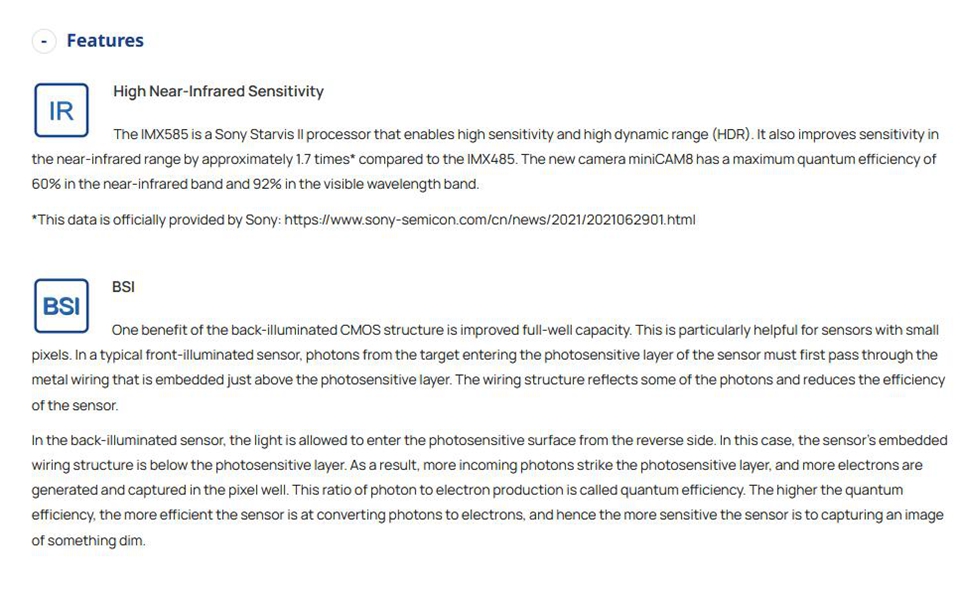

- BSI/FSI: BSI
- Sensor size: 1/1.2inch
- Pixel size: 2.9μm x 2.9μm
- Total pixel area: 3856 x 2180
- Effective pixels: 8MP

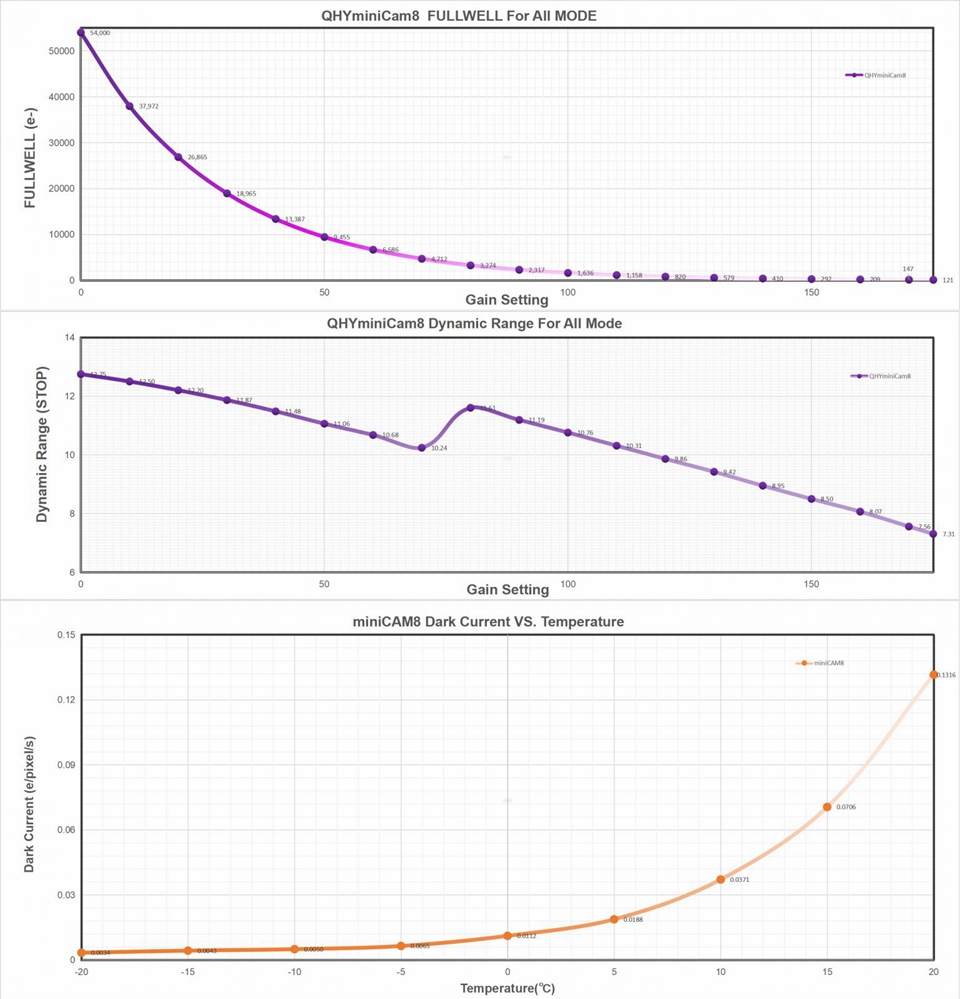

- Full well capacity: 54ke-

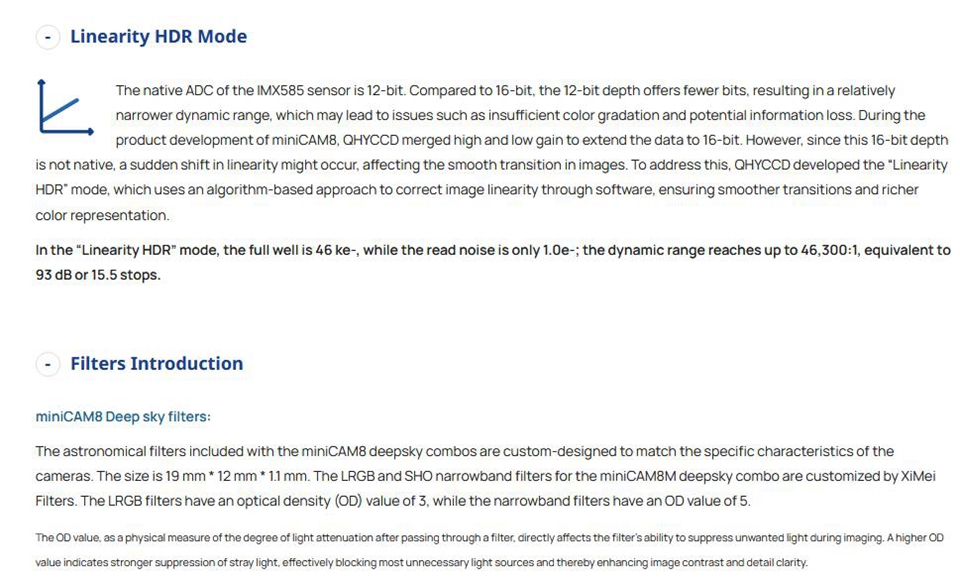

- Linearity HDR mode: 46ke-

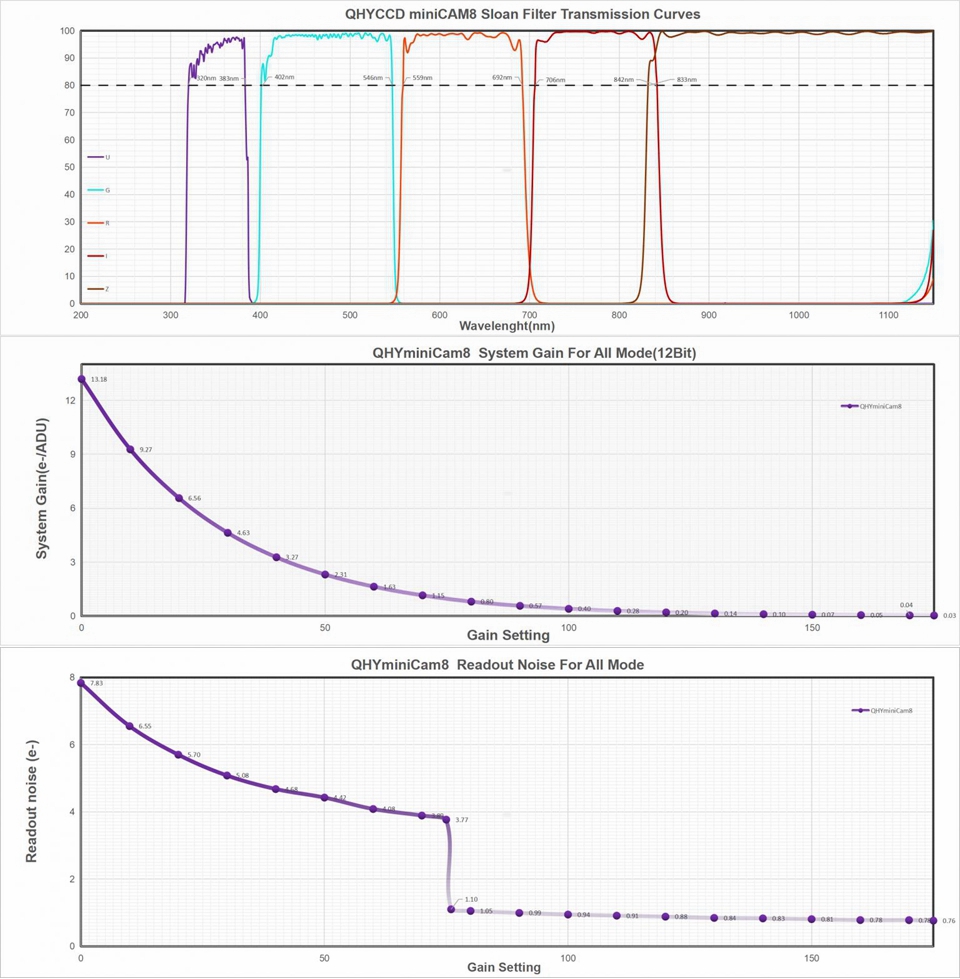

- Readout noise: 0.76 – 7.8 e-
- Linearity HDR mode: 1.0e-

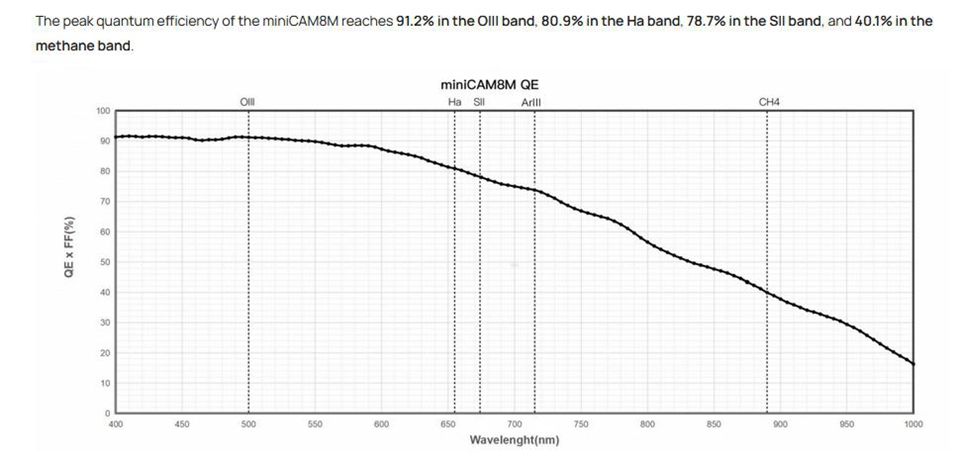

- Peak QE:
M: 92%

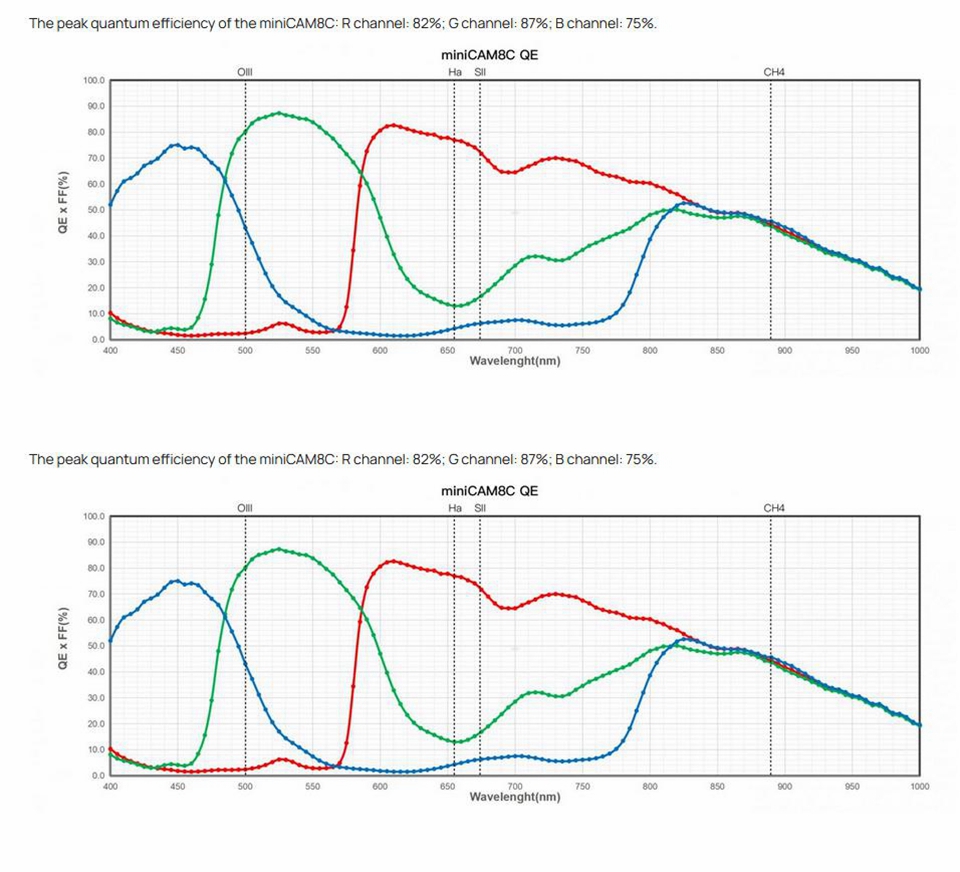

C: R: 82%
G: 87%
B: 75%
- Dynamic range: linearity HDR mode: the dynamic range reaches up to 46,300:1, equivalent to 93 dB or 15.5 stops.
- A/D: dual 12-bit (output as 16-bit)
- Full frame rates: full resolution 41.5FPS at 8bit, 23.5FPS at 16bit
- ROI frame rates: full resolution 1080Lines, 82FPS at 8bit, 47FPS at 16bit; 640Lines, 177FPS at 8bit, 105FPS at 16bit
- Exposure time range: 11μs-900sec
- Shutter Type: electronic rolling shutter
- Built-in image buffer: 512MB DDR3
- Computer interface: USB3.0
- Telescope interface: 1.25, 2 inch
- Optic window type: AR+AR

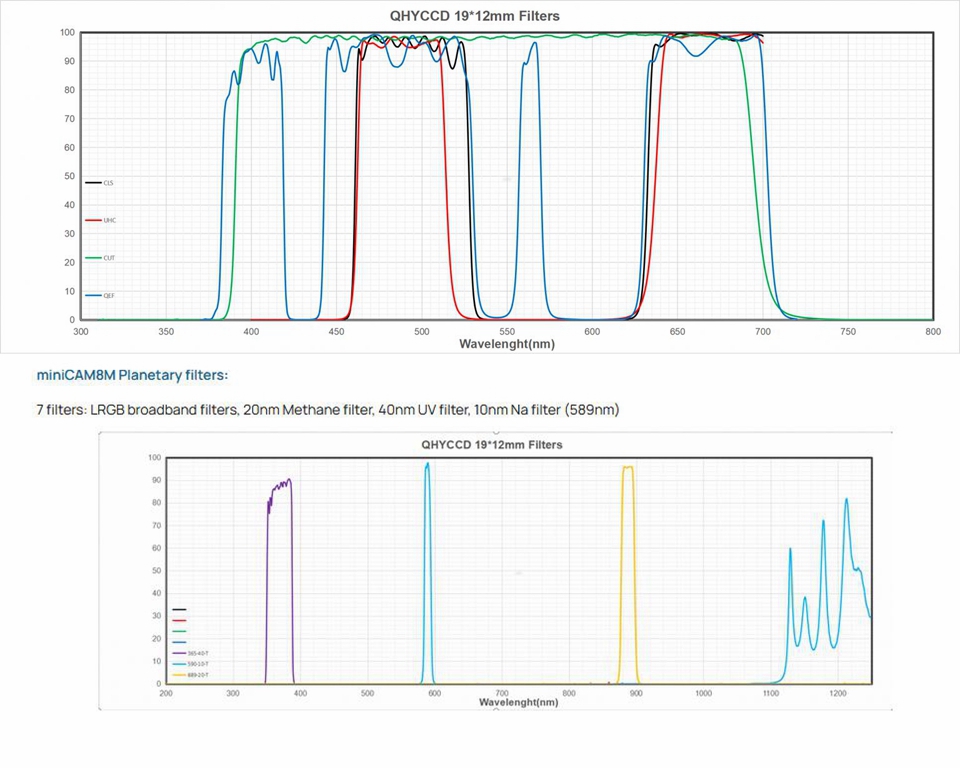

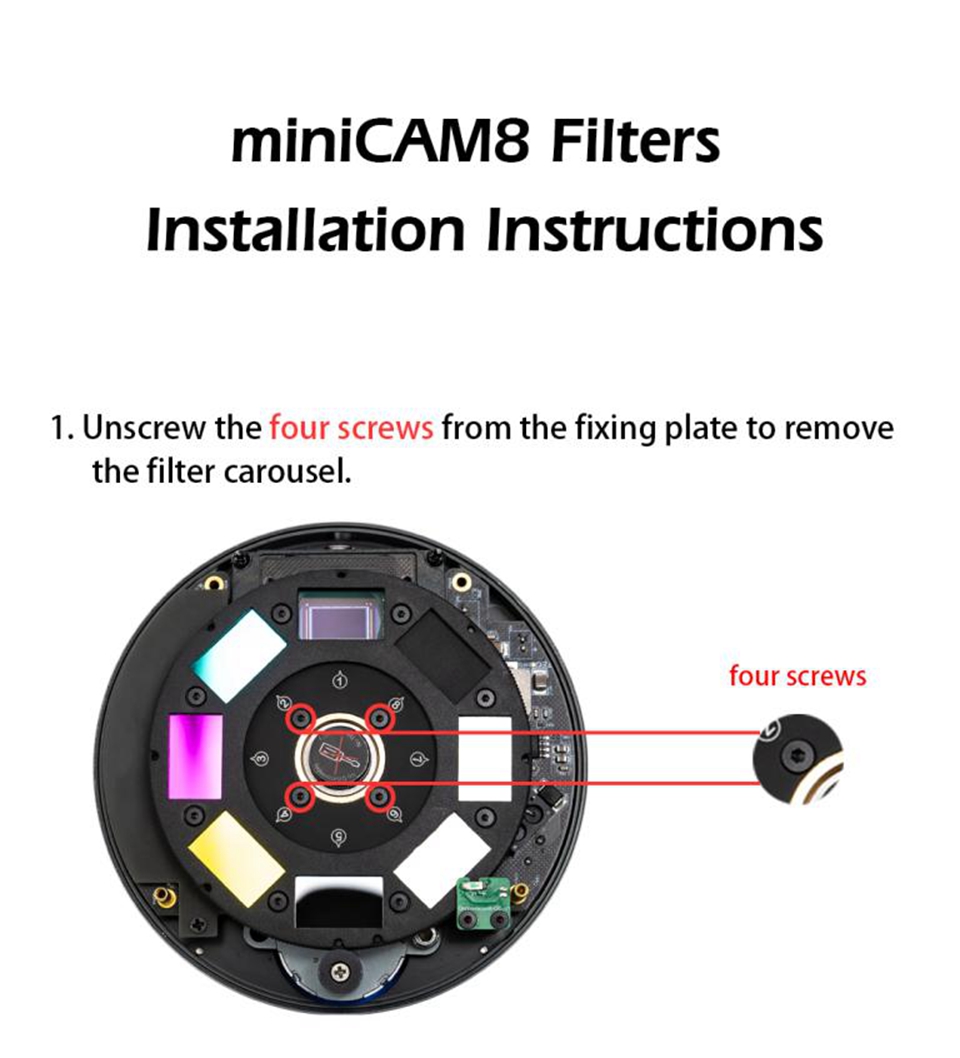

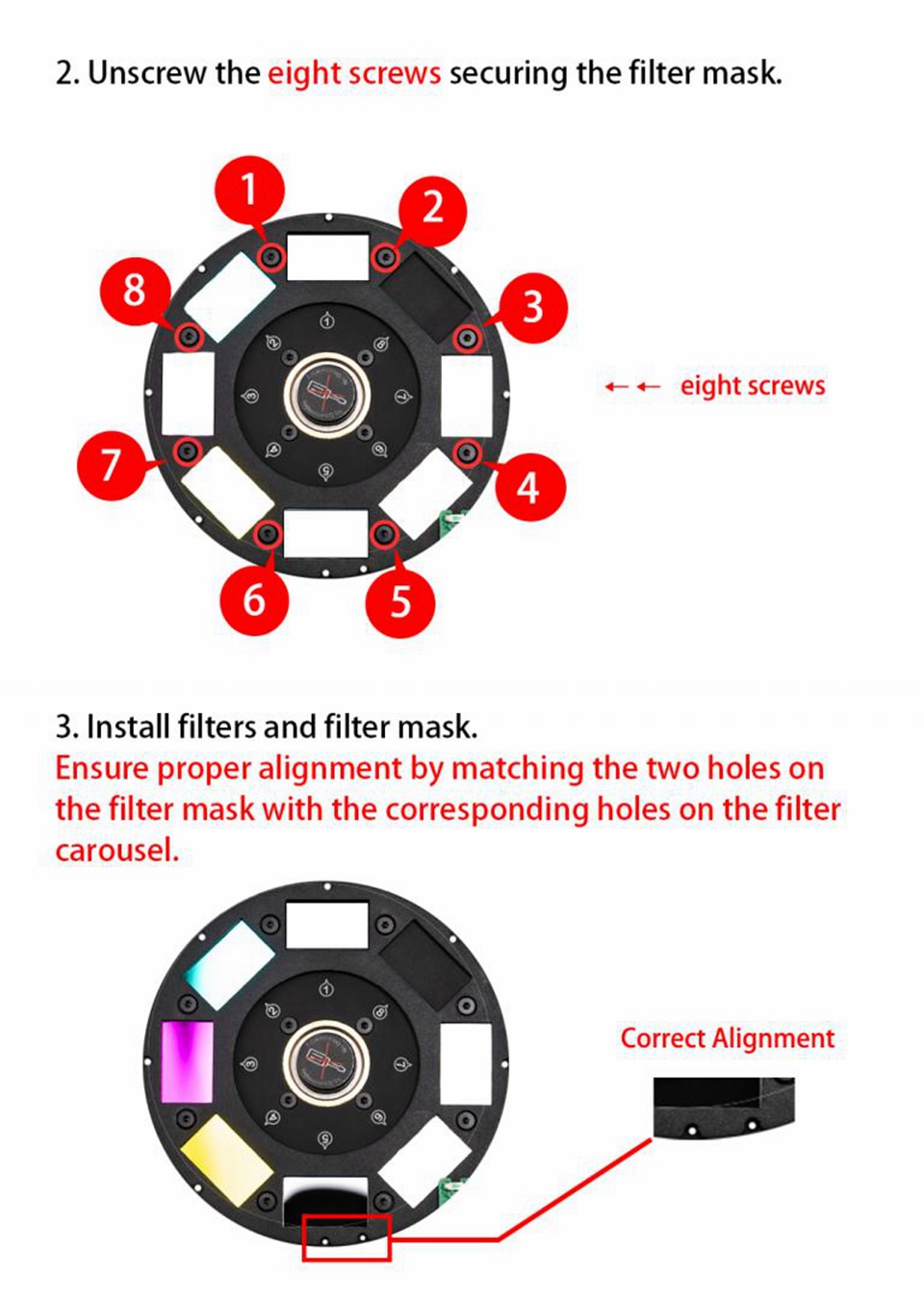

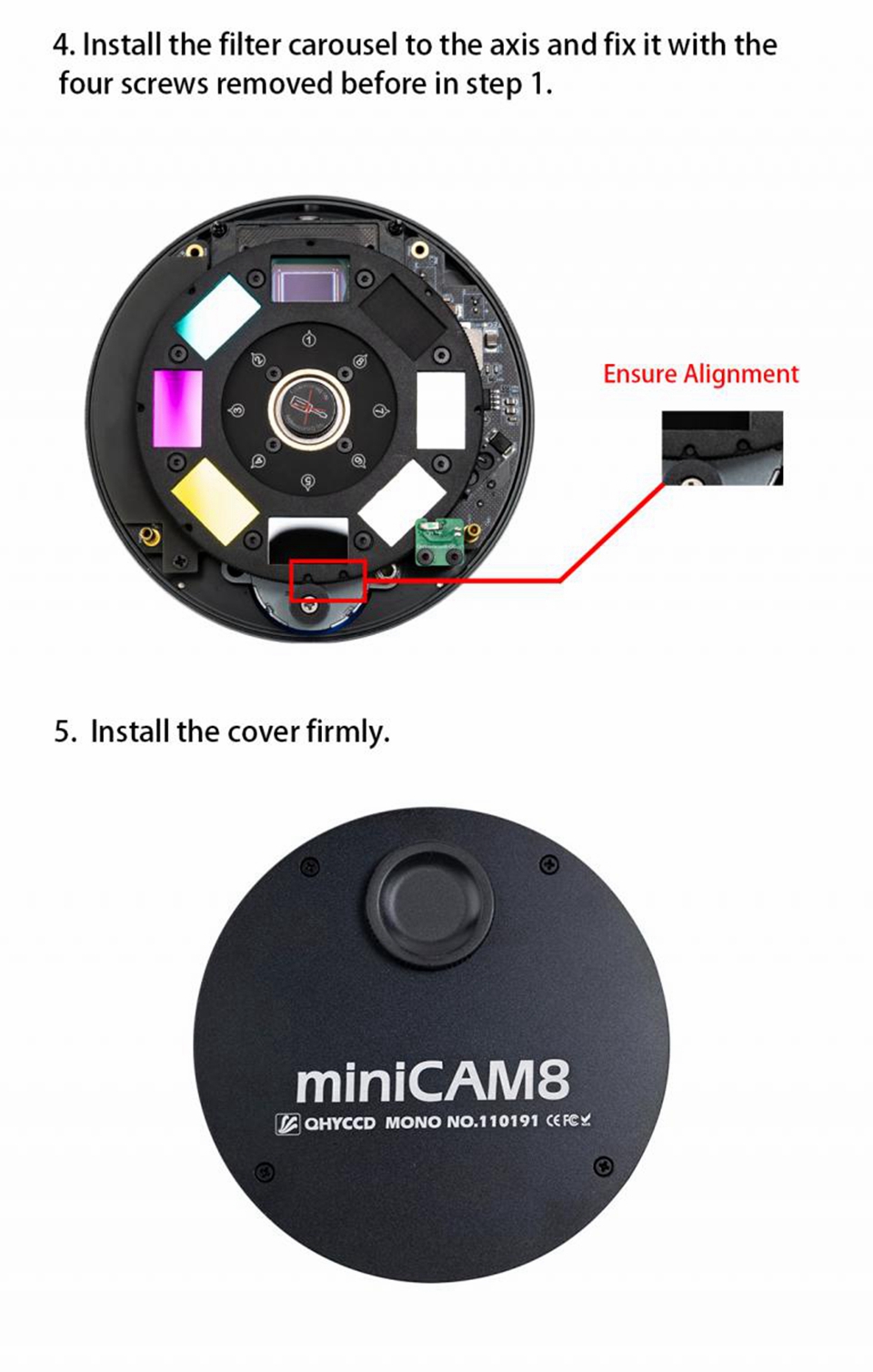

- Filter wheel: built-in 8-position carousel

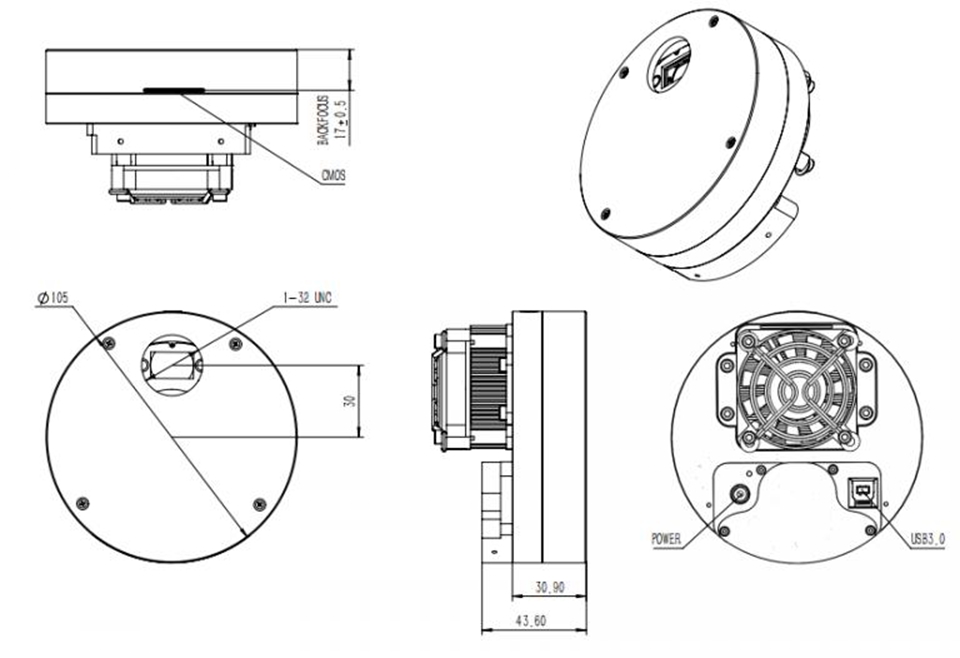

- Back Focal Length: 17.5mm
- Cooling System:
Dual Stage TEC cooler: long exposures (> 1 second) typically -45℃ below ambient
- Weight: 480g

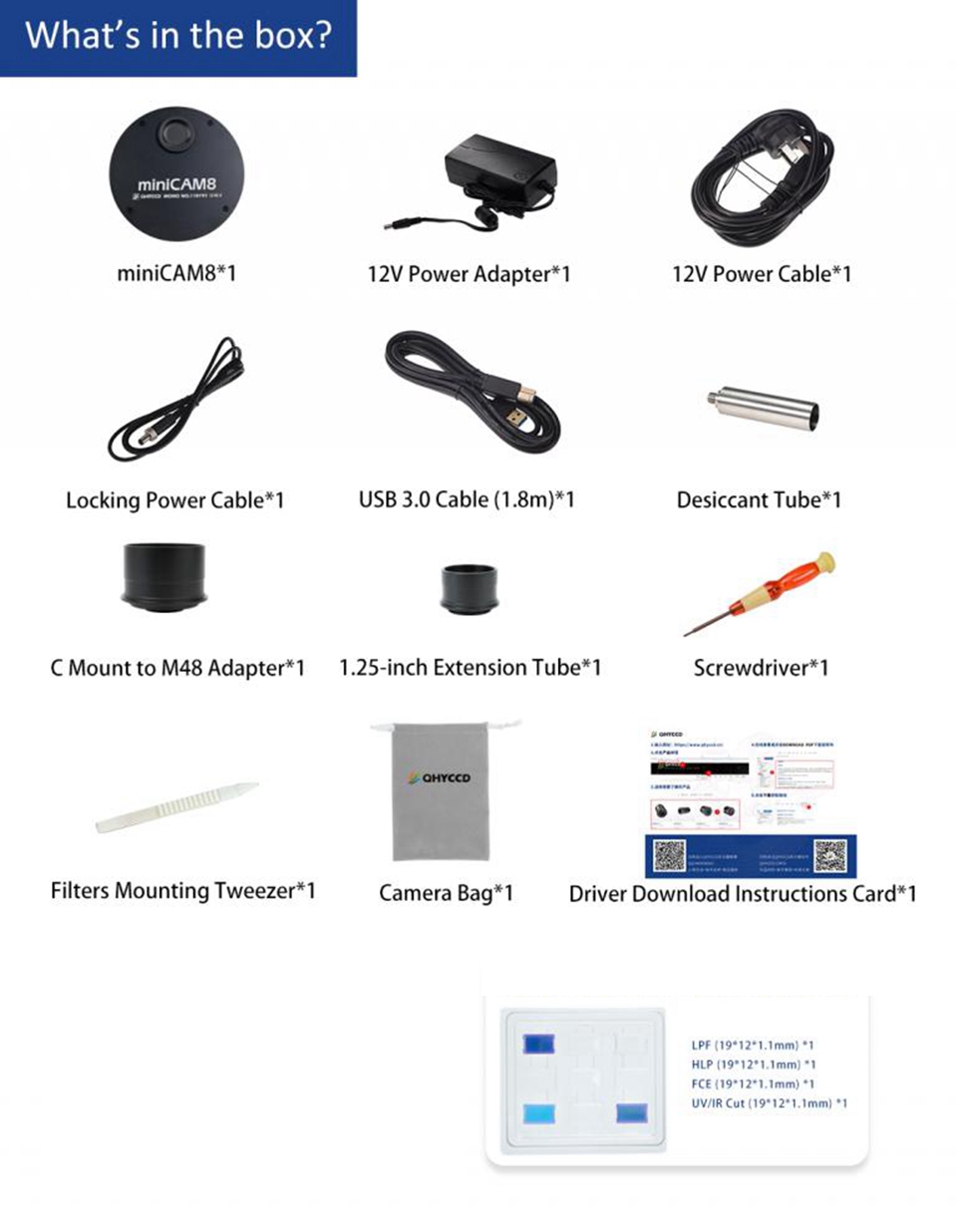

Package Included:
- 1 x Set of MiniCAM8M Camera
