QHYCCD miniCAM8C Deep Sky Combo Portable IMX585 Color Astronomical Camera Support Linear HDR Mode

QHYCCD miniCAM8C Deep Sky Combo Portable IMX585 Color Astronomical Camera Support Linear HDR Mode

Description:

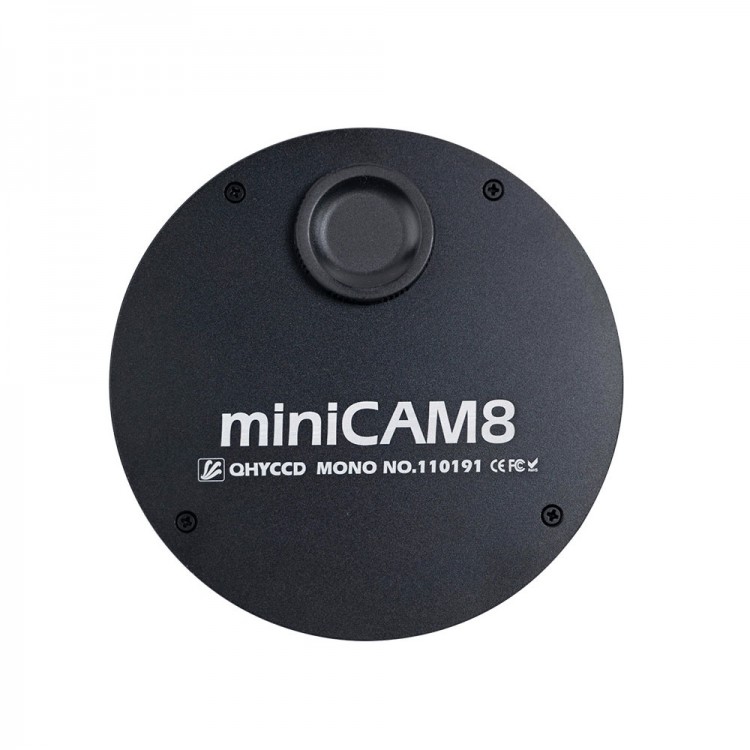

- At just over 4 inches in diameter and a few inches thick (IMX585), the new miniCAM8 is a compact, high-resolution, high-performance, cooled imaging system capable of exceptional, high-quality deep space images as well as high-quality, high-resolution planetary images.

Specification:
- Model: miniCAM8
- CMOS sensor: for Sony IMX585
- BSI/FSI: BSI
- Sensor size: 1/1.2inch
- Pixel size: 2.9μm x 2.9μm
- Total pixel area: 3856 x 2180
- Effective pixels: 8MP
- Full well capacity: 54ke-
- Linearity HDR mode: 46ke-
- Readout noise: 0.76 – 7.8 e-
- Linearity HDR mode: 1.0e-
- Peak QE:
  M: 92%
  C: R: 82%
  G: 87%
  B: 75%
- Dynamic range: linearity HDR mode: the dynamic range reaches up to 46,300:1, equivalent to 93 dB or 15.5 stops.
- A/D: dual 12-bit (output as 16-bit)
- Full frame rates: full resolution 41.5FPS at 8bit, 23.5FPS at 16bit
- ROI frame rates: full resolution 1080Lines, 82FPS at 8bit, 47FPS at 16bit; 640Lines, 177FPS at 8bit, 105FPS at 16bit
- Exposure time range: 11μs-900sec
- Shutter Type: electronic rolling shutter
- Built-in image buffer: 512MB DDR3
- Computer interface: USB3.0
- Telescope interface: 1.25 inch
- Optic window type: AR+AR
- Filter wheel: built-in 8-position carousel
- Back Focal Length: 17.5mm
- Cooling System:
  Dual Stage TEC cooler: long exposures (> 1 second) typically -45℃ below ambient
- Weight: 480g

Package Included:
- 1 x Set of MiniCAM8 Camera
- 1 x LPF+HLP+FCE+UV/IR Cut Filters

The filters provided with the miniCAM8C deepsky combo for Optolong Optics. These include a light pollution filter (LPF), a heavy light pollution filter (HLP), a four-channel enhancement filter (FCE), and a UV/IR cut filter.
