Features:

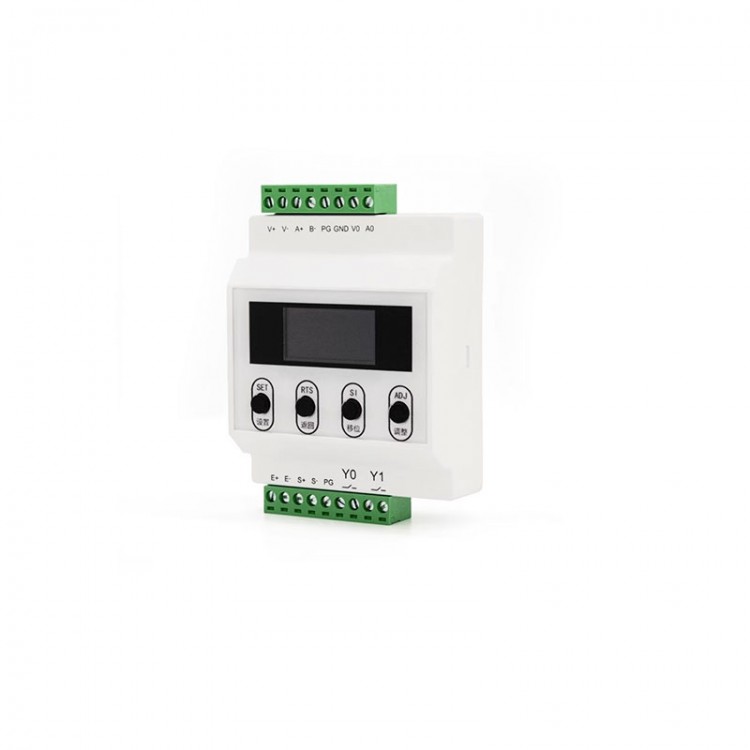

IoT Transmitter
* It functions both as a control instrument and a transmitter.
* Display Accuracy: 1/10000
* Sampling Frequency: 1000Hz

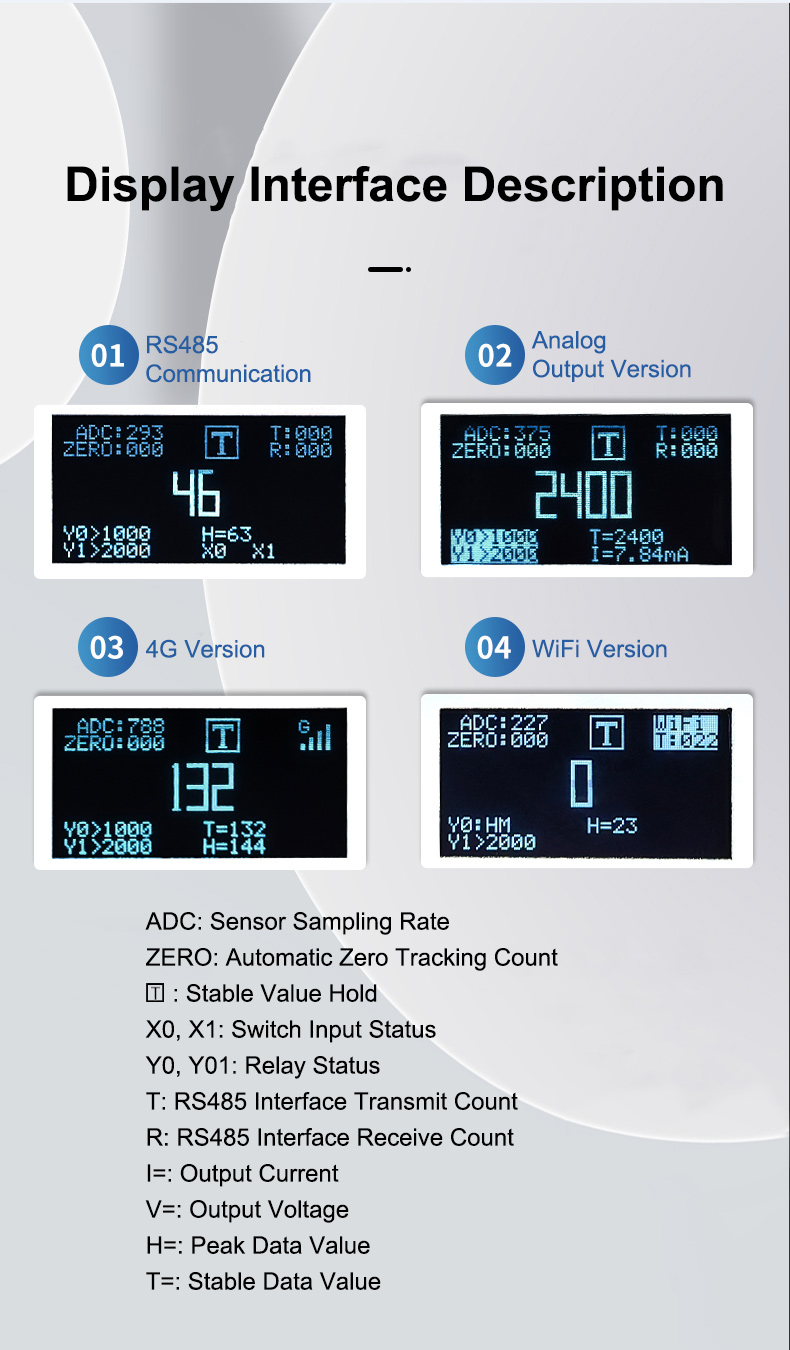

* English operation interface
* 6-digit display
* Supports 2 sets of relays

Compatible with Various Industrial Control Equipment
* Suitable for use with force sensors, weighing sensors, torque sensors, central control equipment, PLCs, PCs, and more.

Application Scenarios
* English display interface with simple operation facilitates quick on-site configuration, debugging, and troubleshooting, eliminating the complexity of connecting to a host computer.
* Suitable for industrial automation measurement and control systems in various force and weighing detection devices.
* Applications include warehouse weighing, livestock farming, smart cabinets, and logistics transportation.

Calibration Procedure:
The English display interface supports key-operated calibration and zeroing, with a no-weight calibration function. It is simple to operate, facilitating quick on-site configuration, debugging, and troubleshooting—eliminating the complexity of connecting to a host computer.

1. Select sensor settings. Password is 1111. Then select range calibration.
2. For weight-based calibration: after zero calibration, place the weight and enter the weight value to complete calibration.
3. After selecting weightless calibration, enter the sensor sensitivity. Then input the sensor range as the calibration value to complete the calibration.

Specifications:
* Power Supply: 10~28VDC
* Power Consumption: <1W
* Operating Current: Varies depending on the number of external sensors and supply voltage

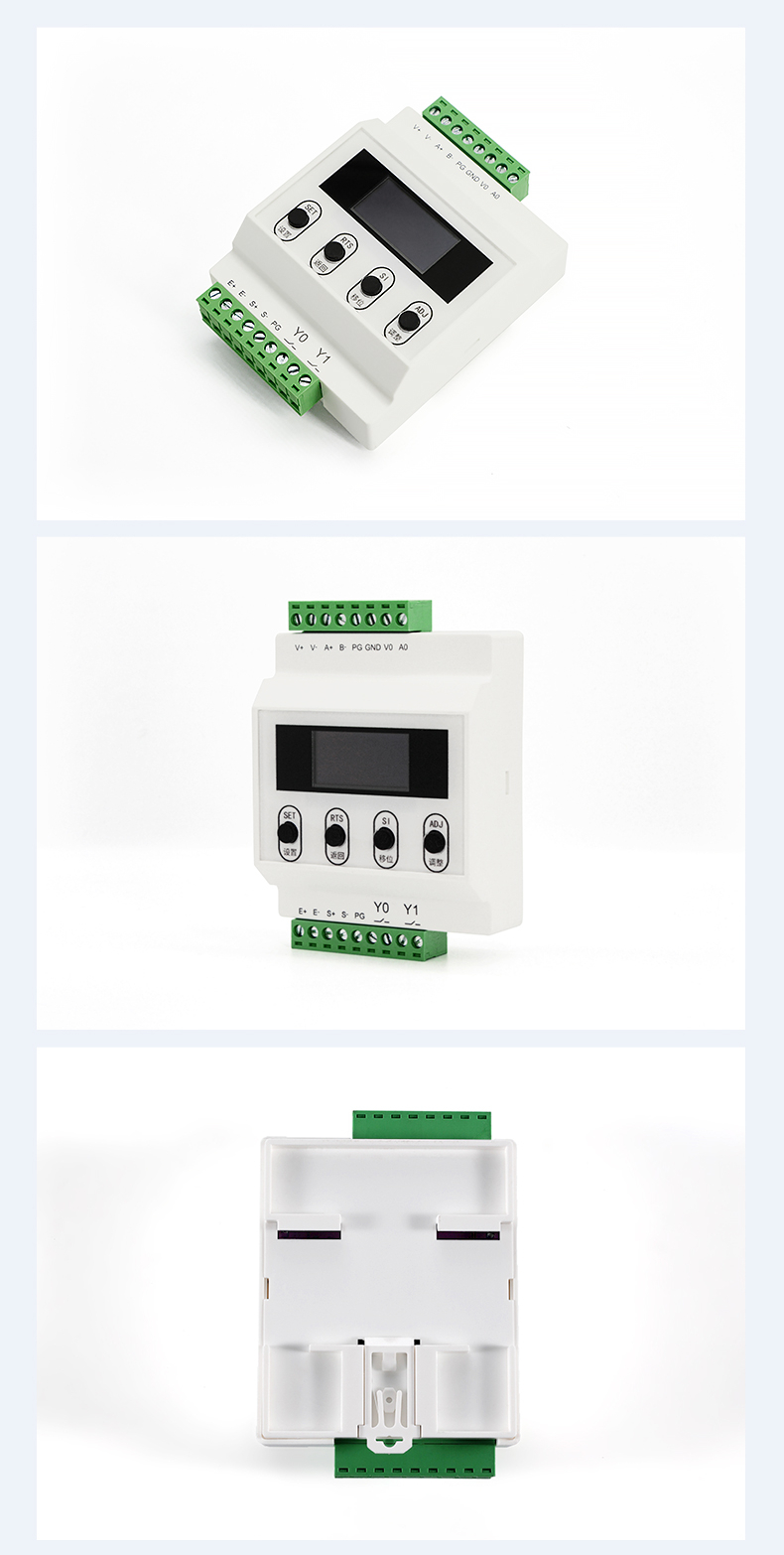

* Mounting Method: DIN35 rail
* Module Weight: Approximately 0.2 kg
* Sensor Excitation Voltage: 5VDC ±3%, max current 100mA
* Input Signal Range: ±39mV
* Temperature Coefficient: ≤ (0.01% of reading + 0.3d) /°C
* Non-linearity Error: ≤ 0.003% F.S.
* Stable Resolution: 1/10000
* Sampling Rate: 10Hz / 40Hz / 640Hz / 1000Hz
* Communication Interface: RS485-Modbus RTU / ASCII
* Supported Baud Rates: 9600, 19200, 38400
* Factory Default Communication Settings: 9600 baud rate, 8 data bits, 1 stop bit, no parity
* Display Screen: 1.3-inch OLED, resolution 128×64, 6-digit display

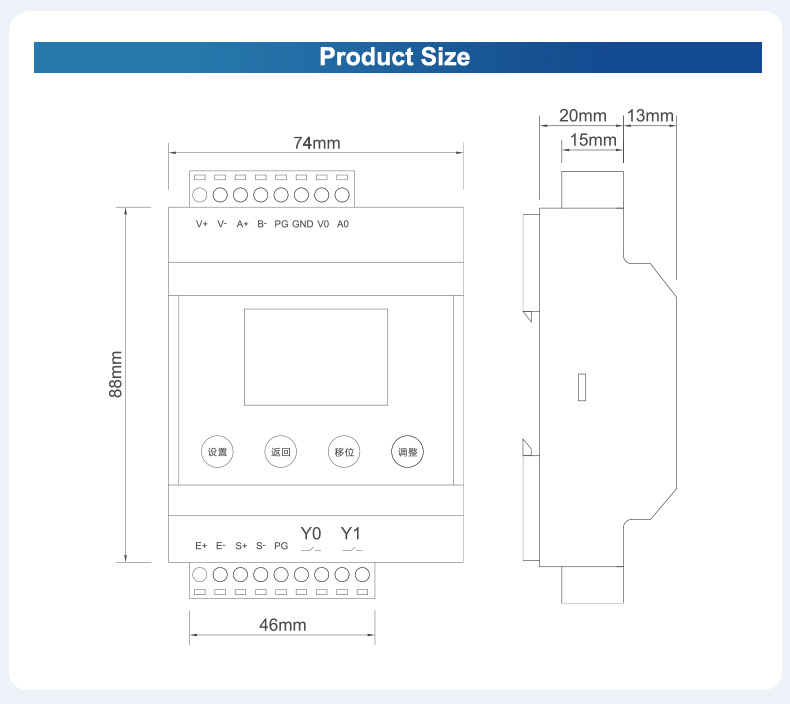

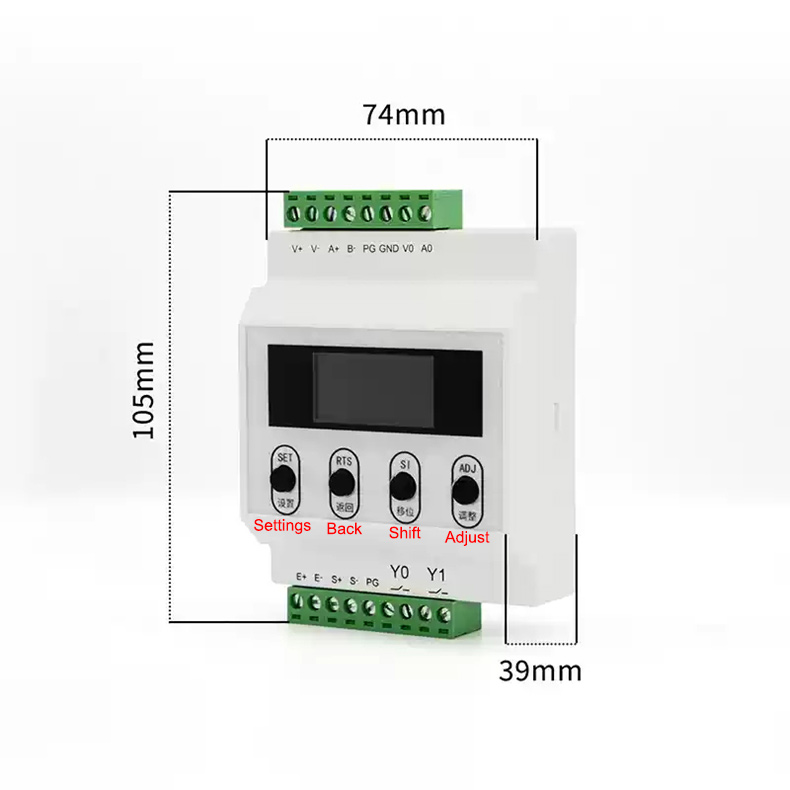

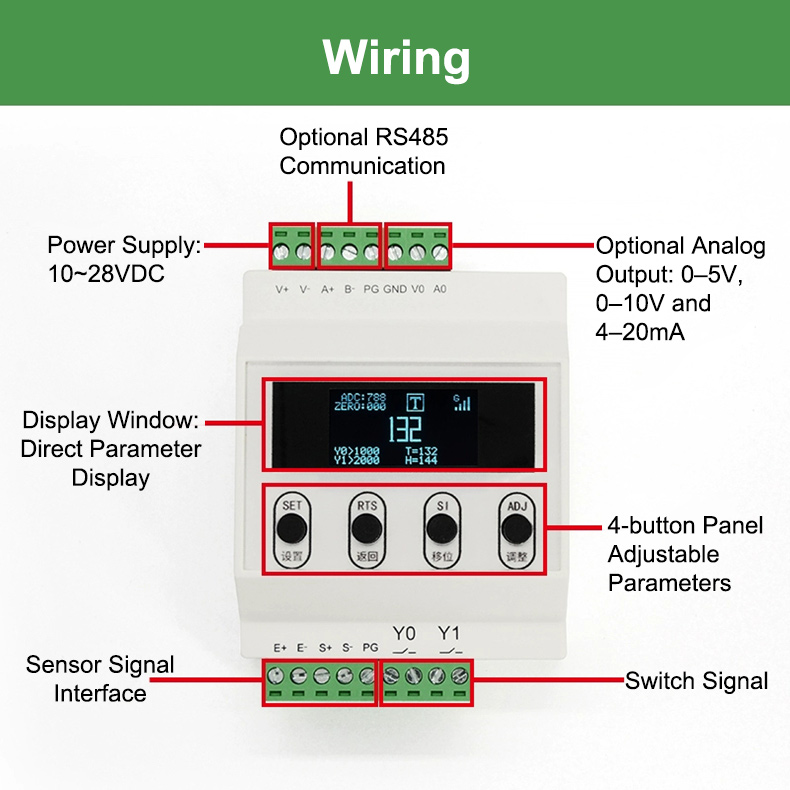

Wiring Introduction:
Power Supply
* V+ → Power Supply Positive (+)
* V- → Power Supply Negative (–)

Communication
* A+ → Communication A
* B- → Communication B
* PG → Shield

Optional Analog Output
* GND → Common Ground (Negative)
* A0 → Current Signal
* V0 → Voltage Signal

Sensor Wiring
* E+ → Excitation Positive (+)
* E- → Excitation Negative (–)
* S+ → Signal Positive (+)
* S- → Signal Negative (–)
* PG → Shield

Relay Output
* Y0 → First Set of Relay
* Y1 → Second Set of Relay

Packing List:
* 1 x IoT Transmitter

Packaging Details:
* Weight: 0.3kg
