| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $206.32 | $202.11 | $195.79 | $187.37 | Contact US |

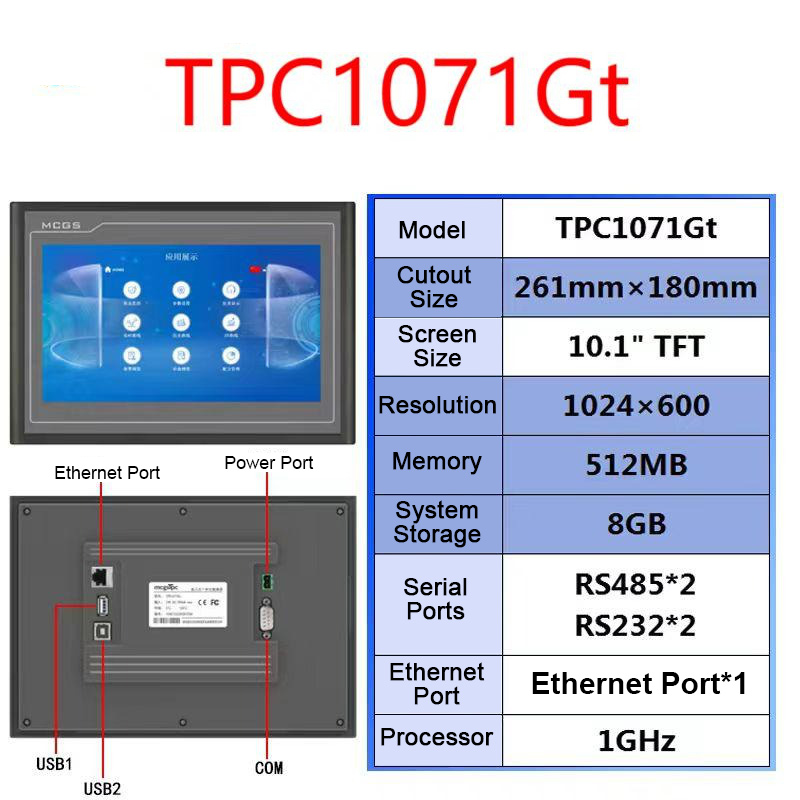

G Series MCGS TPC1071Gt Dark Gray 10.1" HMI Touch Screen w/ 261mm×180mm Cutout 1 Ethernet Port 512MB+8GB
$185.26
K3 MCGS TPC1031Ki White 10.1" 1024×600 Embedded HMI w/ 260mm×202mm Cutout 1 Ethernet Port 128M Memory
$175.55
K3 MCGS TPC1031KT Dark Gray 10.1" 1024×600 Embedded HMI w/ 261mm×180mm Cutout 1 Ethernet Port 128M Memory
$160.00
G Series MCGS TPC1071Gi Silver-White 10.1" HMI Display w/ 260mm×202mm Cutout 1 Ethernet Port 512MB+8GB
Description of TPC1071Gi:
TPC1071Gi is a high-performance embedded all-in-one touch screen featuring a quad-core CPU with a main frequency of 1GHz. This product is equipped with a 10.1-inch high-brightness TFT LCD (resolution: 1024×600), a 4-wire resistive touch screen, and a sturdy, aesthetically pleasing aluminum alloy housing with excellent electromagnetic shielding. It comes pre-installed with the MCGS embedded configuration software (runtime version) and provides powerful image display and data processing capabilities.
Specifications of TPC1071Gi:
* Panel Cutout Dimensions: 260mm×202mm
* Screen Size: 10.1" TFT
* Resolution: 1024×600
* Memory: 512MB
* System Storage: 8GB
* Serial Ports: 2 × RS485 and 1 × RS232
* Ethernet Port: 1 × Ethernet Port
* Processor: 1GHz
* Housing: Cast aluminum construction
Packing List:
* 1 × HMI Display
Packaging Details:
* Weight: 1.8kg
