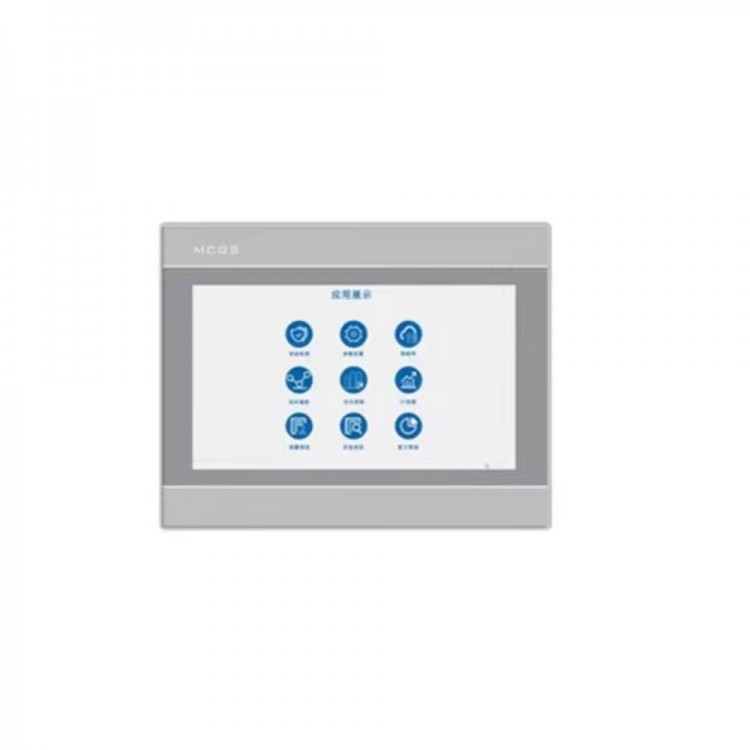

MCGS TPC1051Ni-WiFi 10.1-Inch Touch Screen IoT Screen HMI Display with 260mm×202mm Cutout 512MB+4GB
Description:
The IoT metal HMI screen connects via WiFi and enables remote operation and maintenance of both the screen and its connected devices.
Specifications:
Product Features:
* LCD Screen: 10.1" TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 1024 × 600
* Brightness: 300cd/㎡
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Power Isolation: Supported
* Rated Power: 7W
* Processor: Quad-core Cortex-A53, 1GHz
* Memory: 512MB
* System Storage: 4GB
* Storage Space: 4GB
* Configuration Software: McgsPro version 3.3.6.6354 SP1.3 or later

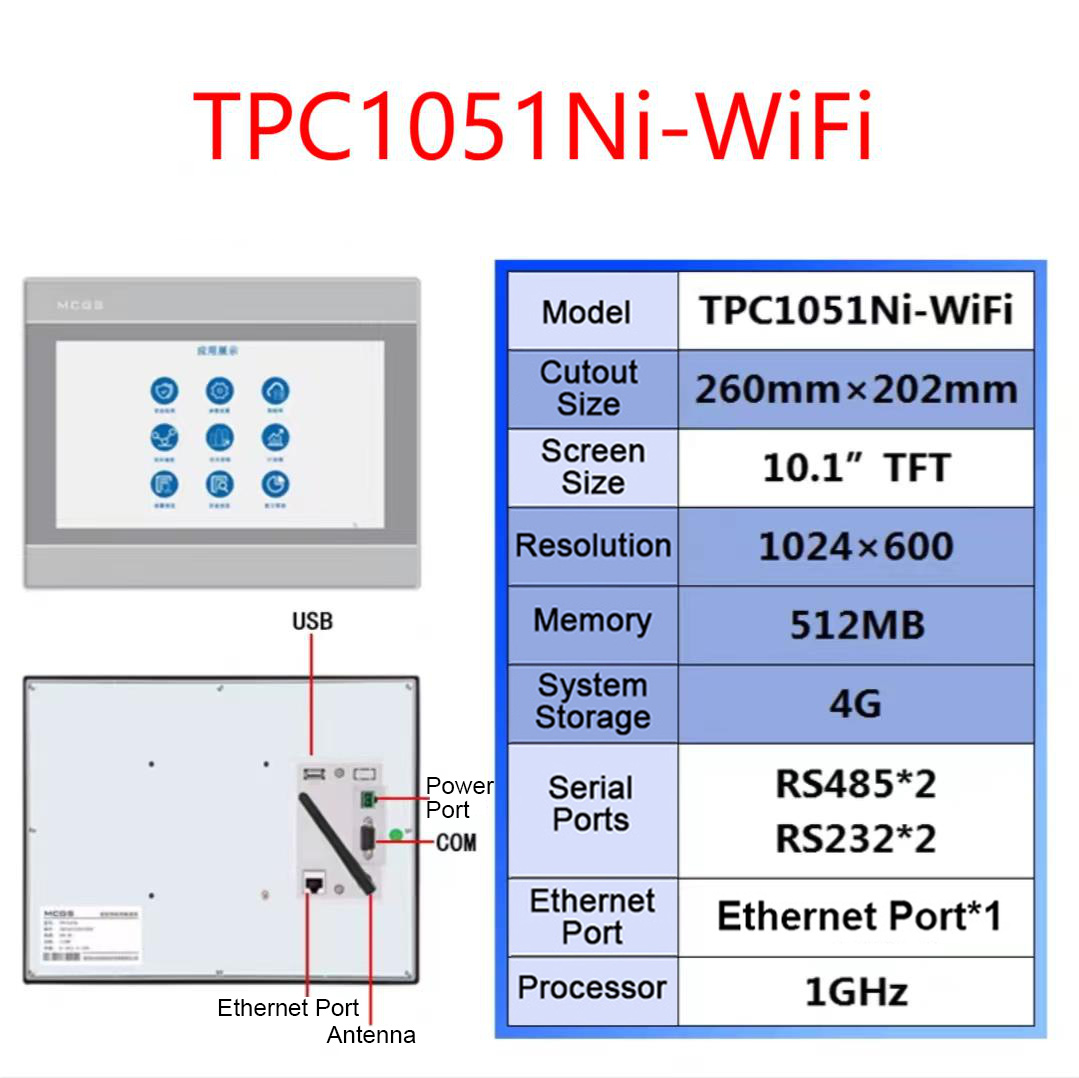

External Interfaces:
* Serial Ports:
** Option 1: COM1 (RS232), COM2 (RS485), COM3 (RS485), and COM4 (RS232)
** Option 2: COM1 (RS232), COM4 (RS232), and COM9 (RS422)
* Serial Port Isolation: Supported
* USB Port: 1 × Host
* Ethernet Port: 1 × 10/100M adaptive
Wireless Expansion:
* Wi-Fi interface: IEEE 802.11 b/g/n
Environmental Conditions:
* Operating Temperature: 0°C to 45°C
* Operating Humidity: 5% to 90% RH (non-condensing)
* Storage Temperature: -10°C to 60°C
* Storage Humidity: 5% to 90% RH (non-condensing)
Product Specifications:
* Enclosure Material: Die-cast aluminum front panel
* Overall Dimensions: 271mm × 213mm
* Panel Cutout Dimensions: 260mm × 202mm
* Display Area: 223mm × 126mm
Certifications:
* Product Certification: Complies with CE/FCC standards
* Protection Rating: IP65 (front panel)
* EMC Compliance: Industrial level 3
Packing List:
* 1 × Touch Screen
* 1 × Antenna
Packaging Details:
* Weight: 1.8kg
