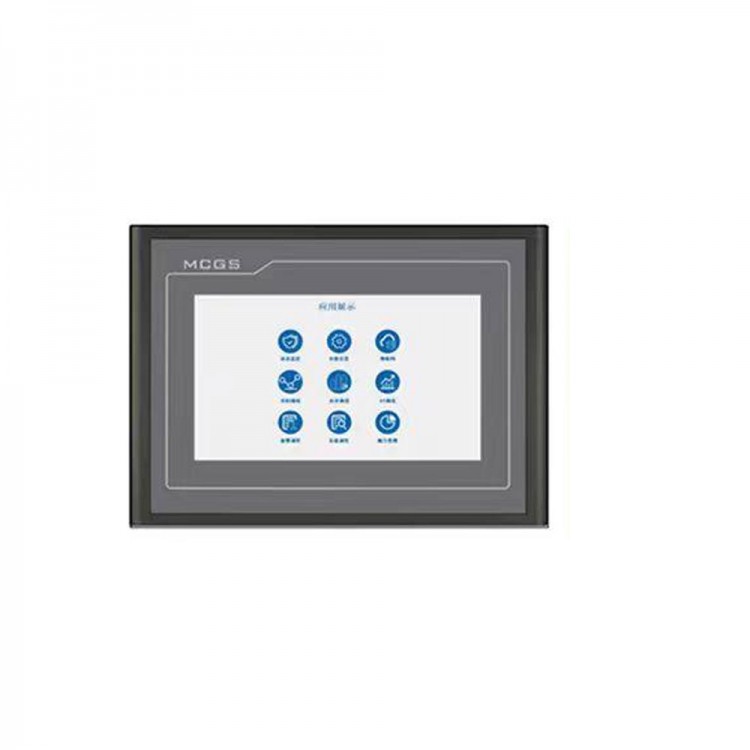

MCGS TPC1031Nt-WiFi 10.1" IoT Screen HMI Display Touch Screen with 261mm×180mm Cutout 256MB+512MB
Description:
The IoT HMI screen connects via WiFi and supports remote operation and maintenance of both the screen and connected devices.

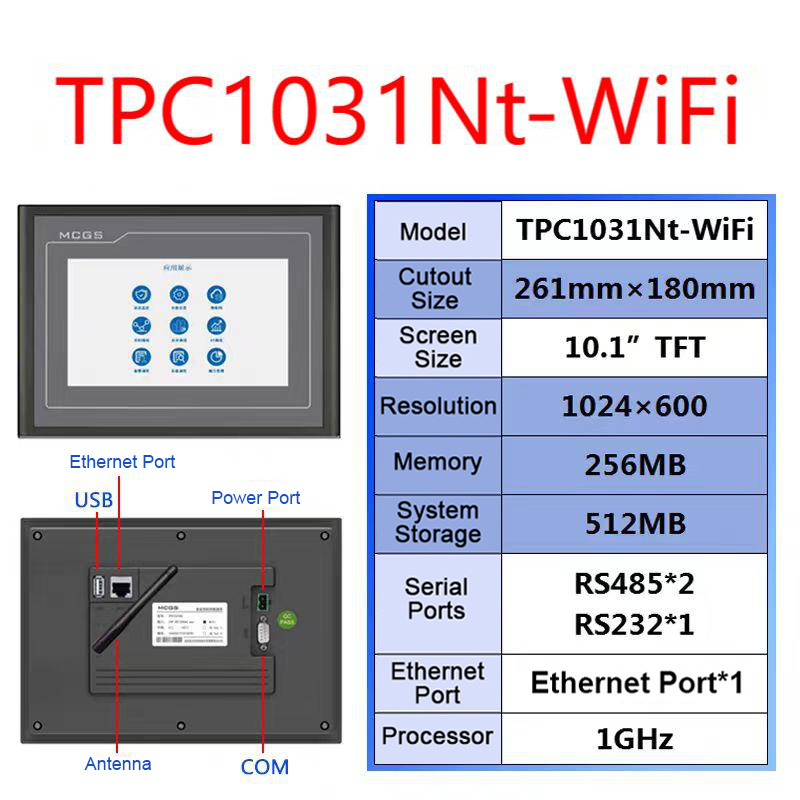

Specifications:
Product Features:
* LCD Display: 10.1" TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 1024×600
* Brightness: 300cd/㎡
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Rated Power: 7W
* Processor: Cortex-A53 multi-core, 1GHz
* Memory: 256MB
* System Storage: 512MB
* Storage Space: 512MB
* Configuration Software: McgsPro 3.3.6.6354 SP1.3 or above
External Interfaces:
* Serial Interface:
* * Option 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
* * Option 2: COM1 (RS232) and COM9 (RS422)
* USB Port: 1 × Host
* Ethernet Port: 1 × 10/100M adaptive
Wireless Expansion:
* Wi-Fi Interface: Wi-Fi IEEE 802.11 b/g/n
Environmental Conditions:
* Operating Temperature: 0°C to 45°C
* Operating Humidity: 5%-90% (non-condensing)
* Storage Temperature: -10°C to 60°C
* Storage Humidity: 5%-90% (non-condensing)
Product Specifications:
* Enclosure Material: Engineering plastic
* Overall Dimensions: 274mm × 193mm
* Panel Cutout: 261mm × 180mm
* Display Size: 223mm × 126mm
Certifications:
* Product Certification: Complies with CE/FCC standards
* Protection Rating: IP65 (front panel)
* Electromagnetic Compatibility: Industrial level 3
Packing List:
* 1 × Touch Screen
* 1 × Antenna
Packaging Details:
* Weight: 1.8kg
