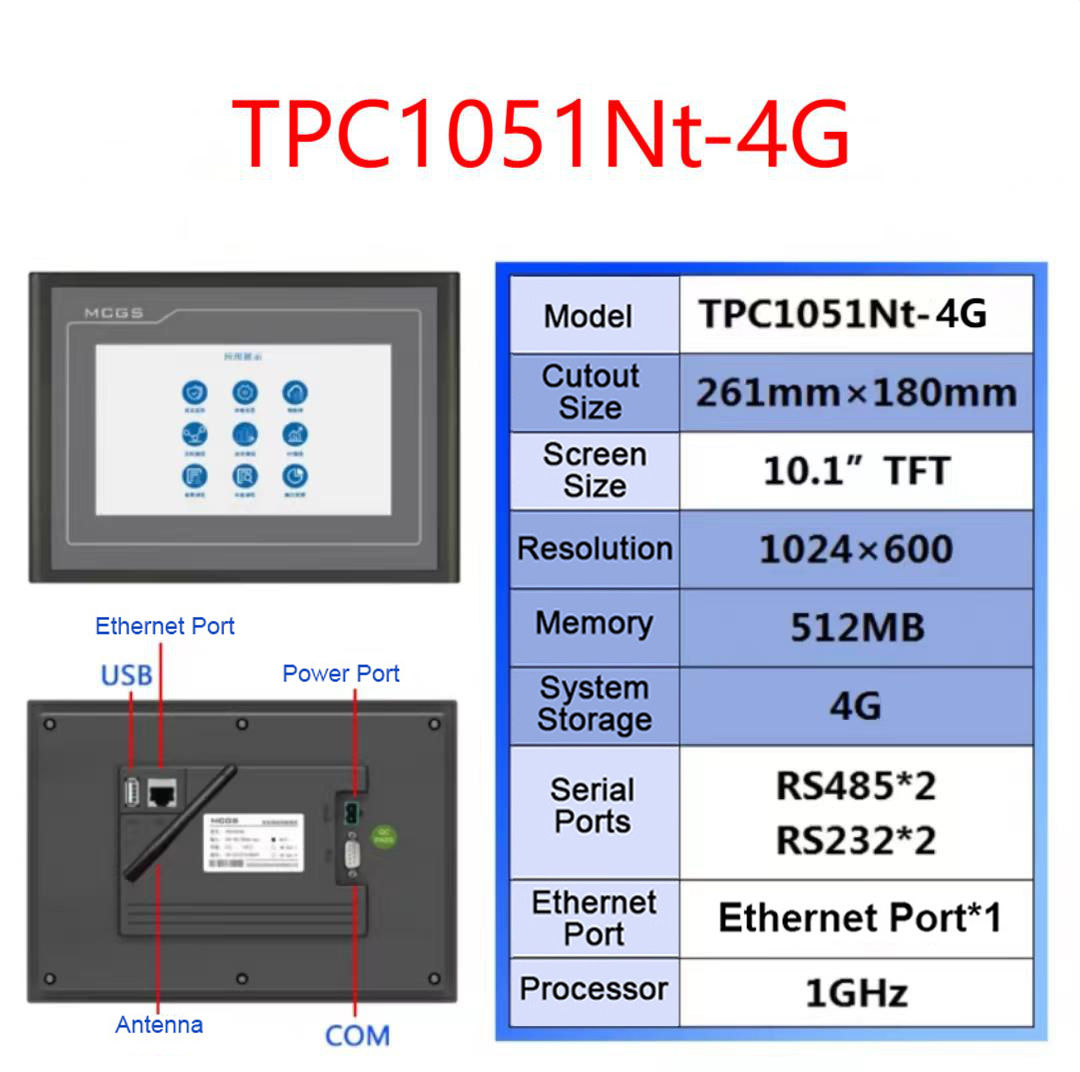

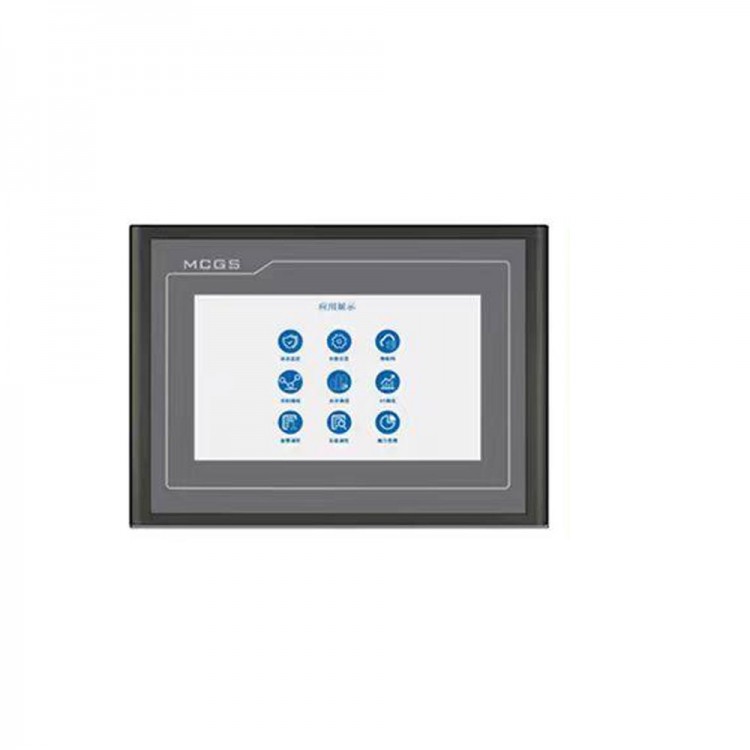

MCGS TPC1051Nt-4G 10.1-Inch Touch Screen IoT Screen HMI Display with 261mm×180mm Cutout 512MB+4GB

MCGS TPC1051Nt-4G 10.1-Inch Touch Screen IoT Screen HMI Display with 261mm×180mm Cutout 512MB+4GB

Description:
TPC1051Nt-4G IoT screen connects via 4G and supports remote operation and maintenance of both the screen and its connected devices.

Specifications:
Product Features:
* LCD Screen: 10.1" TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 1024 × 600
* Brightness: 300cd/㎡
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Rated Power: 7W
* Processor: Quad-core Cortex-A53, 1GHz
* Memory: 512MB
* System Storage: 4GB
* Storage Space: 4GB
* Configuration Software: McgsPro version 3.3.6.6354 SP1.3 or later

External Interfaces:
* Serial Ports:
   **Option 1: COM1 (RS232), COM2 (RS485), COM3 (RS485), and COM4 (RS232)
   **Option 2: COM1 (RS232), COM4 (RS232), and COM9 (RS422)
* USB Port: 1 × Host
* Ethernet Port: 1 × 10/100M adaptive

Wireless Expansion:
* 4G Interface: Compatible with China Mobile, China Unicom, and China Telecom

Environmental Conditions:
* Operating Temperature: 0°C to 45°C
* Operating Humidity: 5% to 90% RH (non-condensing)
* Storage Temperature: -10°C to 60°C
* Storage Humidity: 5% to 90% RH (non-condensing)

Product Parameters:
* Enclosure Material: Engineering plastic
* Dimensions: 274mm × 193mm
* Panel Cutout Dimensions: 261mm × 180mm
* Display Area: 223mm × 126mm

Certifications:
* Compliance: CE/FCC certified
* Protection Rating: IP65 (front panel)
* EMC Level: Industrial grade 3

Packing List:
* 1 × Touch Screen
* 1 × Antenna

Packaging Details:
* Weight: 1.8kg
