• MCGS TPC1031Ni-WiFi 10.1" IoT Screen HMI Display Touch Screen with 260mm×202mm Cutout 256MB+512MB

MCGS TPC1031Ni-WiFi 10.1" IoT Screen HMI Display Touch Screen with 260mm×202mm Cutout 256MB+512MB

Availability: In stock, usually dispatched in 1 business day

  • Price:$198.87
  • Price in reward points: 1989 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $194.89 $190.92 $184.95 $176.99 Contact US
Quantity:

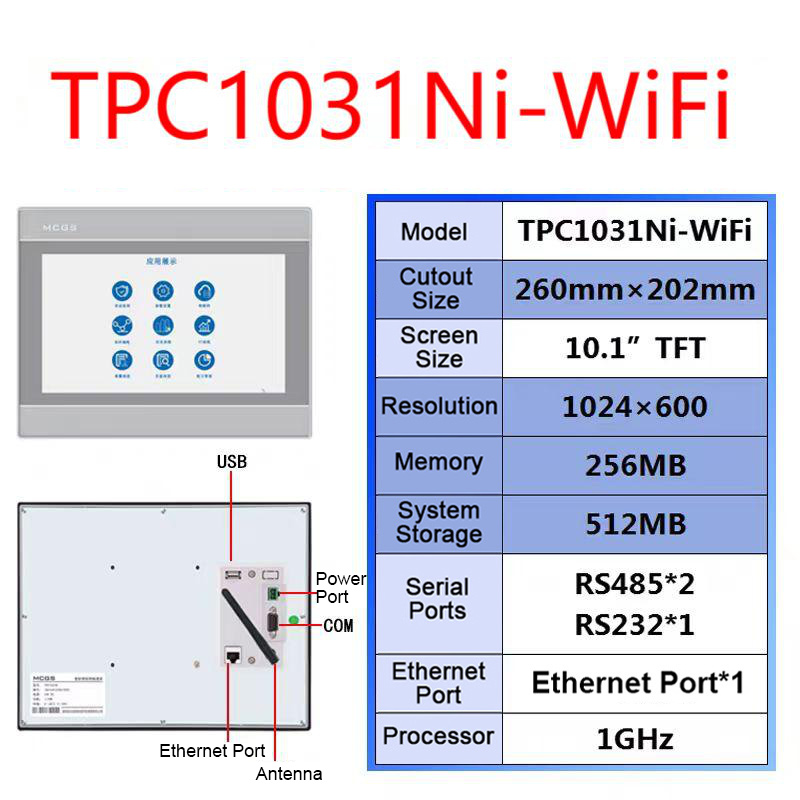

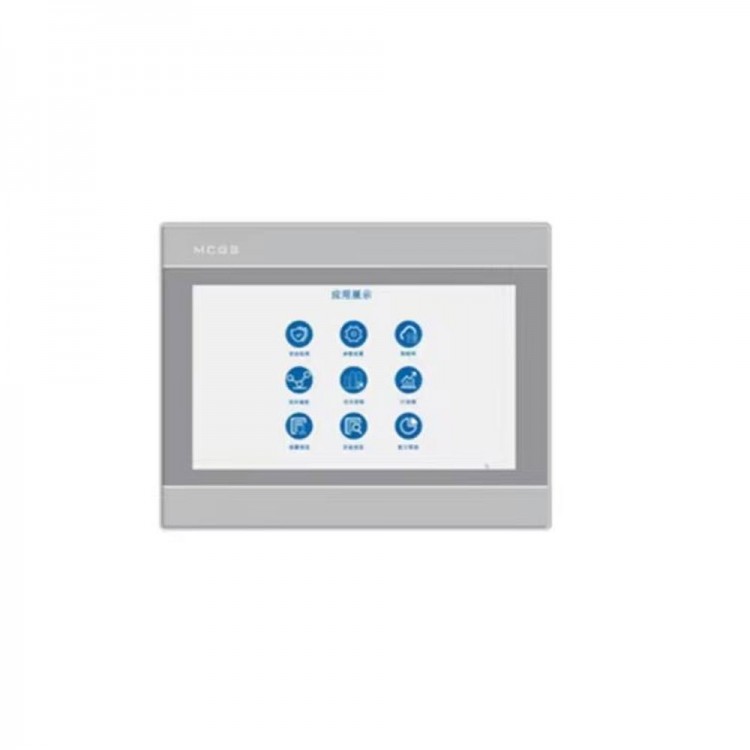

MCGS TPC1031Ni-WiFi 10.1" IoT Screen HMI Display Touch Screen with 260mm×202mm Cutout 256MB+512MB

Description:

The IoT HMI screen connects via WiFi and supports remote operation and maintenance of both the screen and connected devices.

Specifications:
Product Features:
* LCD Screen: 10.1" TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 1024×600
* Brightness: 300cd/㎡
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Power Isolation: Supported
* Rated Power: 7W
* Processor: Multi-core Cortex-A53, 1GHz
* Memory: 256MB
* System Storage: 512MB
* Storage Space: 512MB
* Configuration Software: McgsPro version 3.3.6.6354 SP1.3 or above

External Interfaces:
* Serial Ports:
   * * Option 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
   * * Option 2: COM1 (RS232) and COM9 (RS422)
* Serial Port Isolation: Supported
* USB Port: 1 × Host
* Ethernet Port: 1 × 10/100M adaptive

Wireless Expansion:
* Wi-Fi interface: IEEE 802.11 b/g/n

Environmental Conditions:
* Operating Temperature: 0°C to 45°C
* Operating Humidity: 5%-90% (non-condensing)
* Storage Temperature: -10°C to 60°C
* Storage Humidity: 5%-90% (non-condensing)

Parameters:
* Enclosure Material: Die-cast aluminum front panel
* Housing Color: Industrial white
* Dimensions: 271mm × 213mm
* Panel Cutout: 260mm × 202mm
* Display Area: 223mm × 126mm

Certifications:
* Product Certification: Complies with CE/FCC standards
* Protection Rating: IP65 (front panel)
* Electromagnetic Compatibility: Industrial level 3

Packing List:

* 1 × Touch Screen
* 1 × Antenna

Packaging Details:
* Weight: 1.8kg
