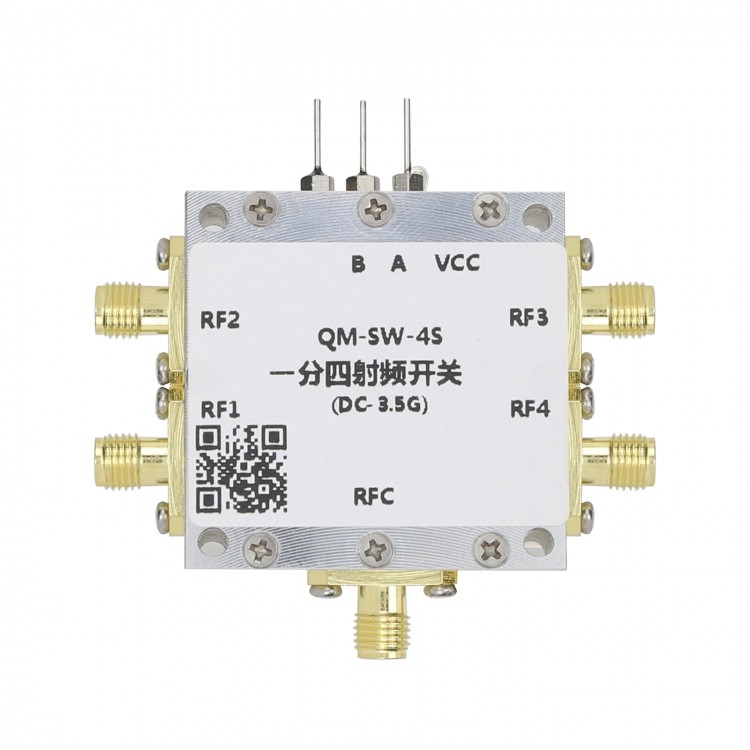

QM-SW-4S DC-3.5G RF Switch SP4T Switch with High Isolation and Low Insertion Loss
Description:
Microwave switch, also known as radio frequency switch, realizes the function of controlling the conversion of microwave signal channels. This module adopts SP4T mode to realize the switching of four-way signals. Because of its low insertion loss, wide frequency band and high isolation, it is widely used in communication system equipment. Thanks to CNC housing, it is easy to install. With stable and reliable performance, the module covers DC-3.5GHz, and can be used in typical frequency points such as 433M, 486M, 915M, 1575M, 2.4G, etc.
Specifications:
1. Model: QM-SW-4S
2. Working frequency: DC-3.5G
3. Working mode: SP4T
4. Insertion loss: 1.5dB (typical)
5. Port isolation: 30dB (see test curve)
6. Impedance: 50Ω
7. Accommodating power: +27dBm
8. Switching time: 40ns
9. Power supply: +5V
10. Input and output interface: SMA (female connector)
11. Module size: 40*40*14mm (without sizes of connectors)
12. With mounting holes
13. Weight: 80 grams
14. Control mode:
* Control port A: L, Control port B: L RF output to RF1;
* Control port A: H, Control port B: L RF output to RF2;
* Control port A: L, Control port B: H RF output to RF3;
* Control port A: H, control port B: H RF output to RF4;
* High level H: +2 to +5V
* Low level L: 0-0.8V (or ground)
Package Included:
- 1 x RF Switch

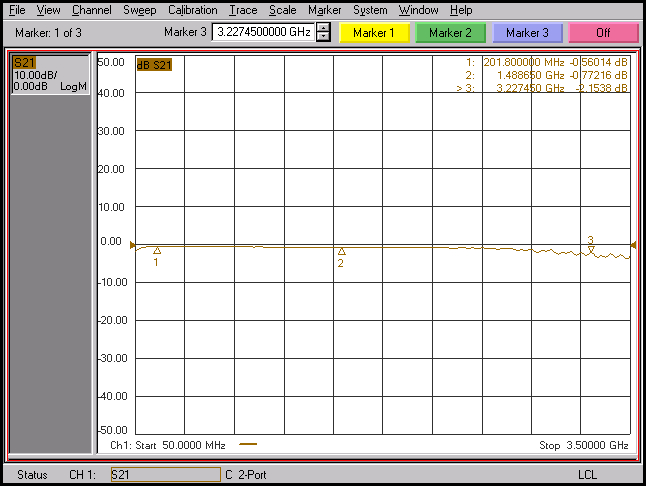

Insertion loss test curve:
Isolation test curve:

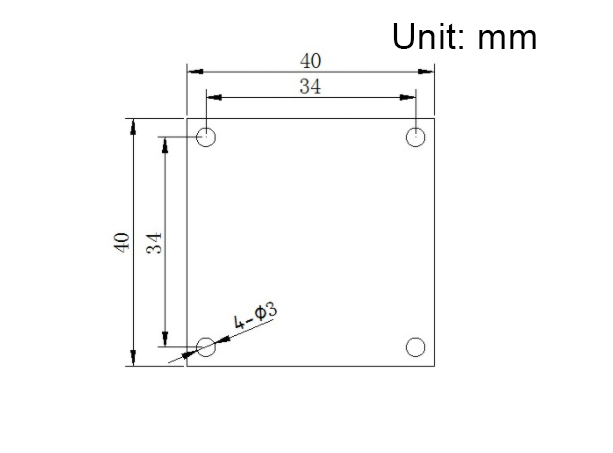

Module mounting holes:
