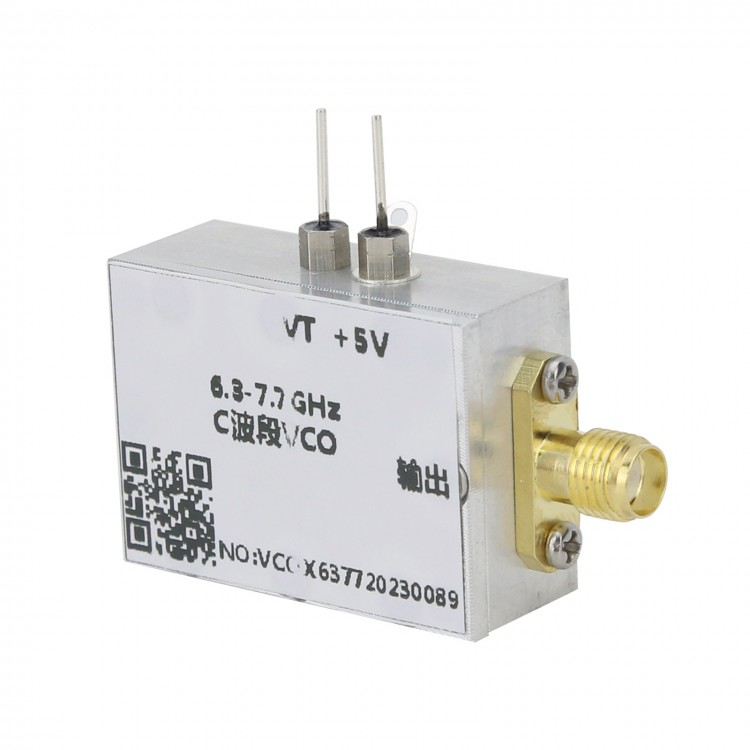

QM-VCO6377C 6.3-7.7GHz Signal Source C-Band VCO Sweep Generator RF Point Frequency Source Module
Description:
C-band point-frequency signal source is used to generate RF signals at 6.3-7.7GHz. At the same time, it can be used with sawtooth wave to generate sweep signals in the corresponding frequency band, which can be used for chirp signal generation.
In conjunction with PLL frequency synthesizers, it can be used as a frequency synthesizer.
Using high-frequency plate and CNC cavity packaging, the module has good electromagnetic shielding performance. Due to its compact size, it can be integrated with equipment.
Module Parameters:
- Power supply: +5V power supply
- Model: QM-VCO6377C
- Frequency output range: 6.3-7.7GHz
- Control mode: external voltage control
- Voltage tuning (VT) range: 0-12V
- Power supply and external voltage power supply mode: feed-through capacitor terminal
- Module current: 210mA
- Typical output power: 10dBm
- Output port: SMA-K
- Module size: 32 x 23 x 13mm/1.3 x 0.9 x 0.5" (without the size of connectors)
Package Included:
- 1 x Signal Generator
Module Tests:

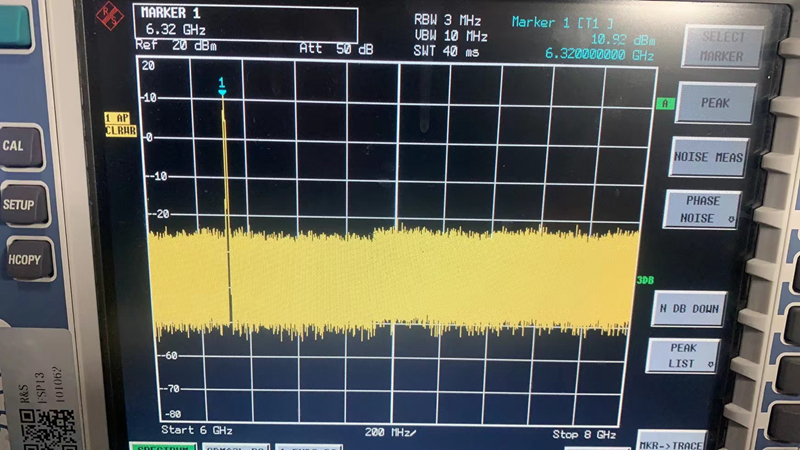

VT: 1V
VT: 3V

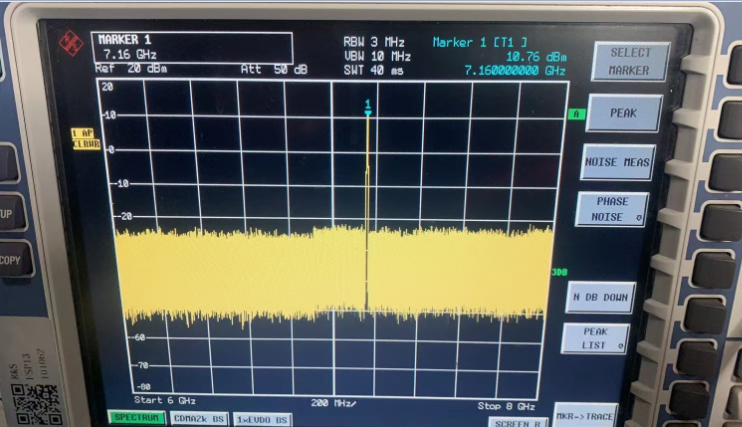

VT: 6V

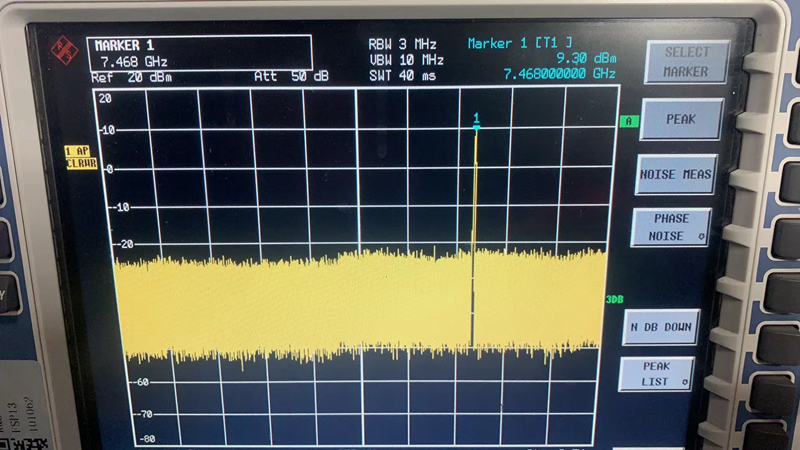

VT: 9V

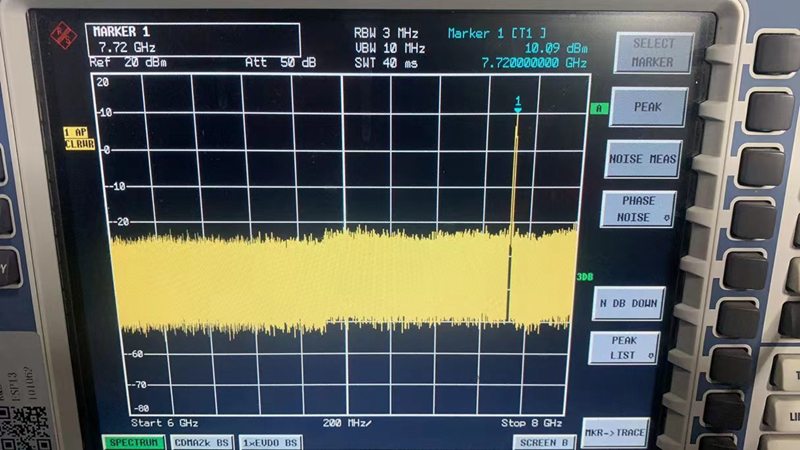

VT: 12V
