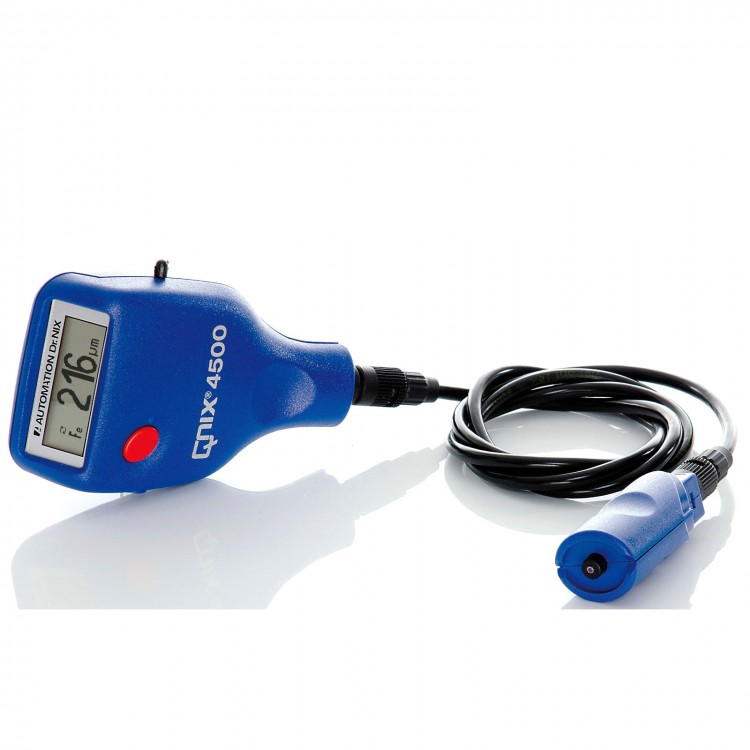

QNix 4500 Quanix Paint Meter/Gauge w/ integrated Cable FNF 200/120 Mil Probe Fe/NFe

Availability: In stock, usually dispatched in 1 business day

  • Price:$643.90
  • Price in reward points: 6439 Reward Points: 64
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $631.02 $618.14 $598.83 $573.07 Contact US
Quantity:

QNix 4500 Quanix Paint Meter/Gauge w/ integrated Cable FNF 200/120 Mil Probe Fe/NFe


Description
- QNix 4500 was developed particularly for measuring tasks in the automobile industries. This compact gauge permits extremely precise measurements of lacquer and corrosion protection thicknesses, on steel and iron. With the practice-oriented product properties, professionals immediately recognize the handwriting of QNix gauges:

- With the QNix® 4500 precise measurements on steel, iron and non-ferrous metals become simply perfect. Change between the measuring procedures by simply pressing on the button. No calibration. With high precision over the entire measuring range: Fe 3000 µm and NFe 2000 µm. The sensitive measuring probe of the extremely small, light and handy QNix® 4500 is integrated into the gauge. It is equipped with a readable LCD that informs about readings, battery condition, mode of operation and serial number.

- The sensitive measuring probe of the extremely small, light and handy QNix® 4500 is integrated into the gauge. It is equipped with a readable LCD that informs about readings, battery condition, mode of operation and serial number.

Extremely precise:
- High measuring accuracy over the entire measuring range.

Simple operation:
- No calibration. Only one button.
- One-hand operation.

Innovative technology:
- Proven Hall sensor and Eddy Current technology. Integrated measuring probe without cables or plugs.

Broad spectrum of use:
- Dual probe for measurements on steel and non-ferrous metals.

Protective measuring:
Polished ruby tip to protect both probe and surface to be measured.

Features
- Gauge for standard applications - simple, fast measurements.
- One-hand operation. Only one button.
- No calibration.
- Automatic On/Off switching.
- High precision over the entire measuring range: Fe 120 mil and NFe 120 mil.
- Broad spectrum of use for nondestructive measurements on steel, iron and non-ferrous metals such as aluminum, zinc, copper and brass.
- Compact design with integrated probe.
- Innovative, proven technology: Hall sensor and Eddy Current technology.
- Acoustic signal for confirmation that measurement has been taken.
- Non wearing ruby probe tip for long term use.
- Optimal LCD Display:
- Large clear numbers for optimal readability.
- Precise representation of readings, battery condition, mode of operation and serial number.
- Display readings in µm or mil.

What's Included

- Coating thickness gauge QNix® 4500.
- Gauge carrying case with reference plates.
- 2 x 1,5 V Mignon Batteries (Type AA Alkali).(no batteries supplied)
-  Test Certificate.
- Instruction manual.

Of The Measurement

1. Fe, Measuring of non-ferromagnetic coatings on ferromagnetic substrate, for example measuring on steel- or iron-substrates.

2. NFe, Measuring of non-ferromagnetic and electrically non-conductive coatings (insulating coating) on non-ferromagnetic and electrically conductive substrate, for example measuring on aluminum-, zinc-, nrass- and certain stainless(high-grade) steel-substrates.

Specifications

Measuring Principle

Two magnetic measuring principles:

Fe: Magnetic-Flux/Hall Effect ref Fe*

NFe: Eddy Current (QNix® 4500 only)

Standard & Regulation

Din EN ISO 2008,ISO 2178, ASTM B 499, ASTM D 7091

(QNix® 4500 only: ISO 2360)

Probe Type

Integrated or –optional –Cable Probe with 1m cable

Measuring Range

Fe: 0.0 -3000μm

NFe: 0.0 -3000μm(QNix® 4500 only)

Metric System μm/mil

Yes

Measuring Interval

Single measurement: 850ms

Display Metric

From 0.0 -999 in μm, from 1000μm in mm

Resolution

1μm in the range up to 999μm

0.01 mm in the range from 1mm

Accuracy referred to

Automation reference standard





4200

3 mm

4200

5mm

4500

3/3mm

4500

5/3mm

Fe<2mm



1

1

1

1

Fe>2mm



1

2

1

2

NFe<2mm







1

1

NFe>2mm







1

2

1=+/-(3%*+2μm)  2=+/-(5%*+2μm)

Minimum Measuring Area

Ø25mm

Minimum Curvature

Convex: 5mm, concave: 25mm

Minimum Substrate Thickness

Fe: 0.2 mm

NFe: 0.05 mm(QNix® 4500 only)

Display

Graphic -LCD

Temperature Range

0 -50℃(32-122℉)

Permitted Storage Temperature

-10 -60℃(14-140℉)

Power Supply

2×Batteries:1.5V (Tape AA alcaline)

Dimensions(L×W×H in mm)

100×60×27(gauge with integrated probe)

Weight incl. Battery

Gauge with integrated probe: 105g

Gauge with Cable Probe: 147g
