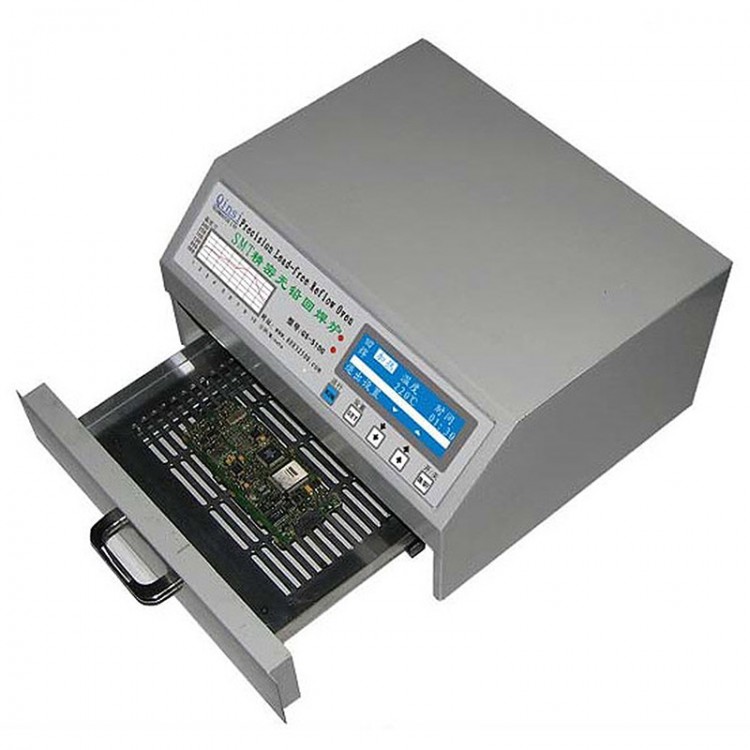

QS-5100 600W SMT Lead Free Reflection Oven Automatic BGA Soldering Station Desktop for Rework SMD

Availability: In stock, usually dispatched in 1 business day

  • Price:$499.90
  • Price in reward points: 4999 Reward Points: 50
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $489.90 $479.90 $464.91 $444.91 Contact US
Quantity:

QS-5100 600W SMT Lead Free Reflection Oven Automatic BGA Soldering Station Desktop for Rework SMD


Description:
- The "Ir unleaded reflux furnace" is an equipment used for the production of electrons and the maintenance of the SMT technique. The product adopts far infrared heating components and excellent sense temperature materials. Thanks to the precise control of the microcomputer, completely match the temperature control curve to the demand of the SMT production technique. The "temperature control curve" of the equipment can be adjusted precisely, so that it can satisfy the demand of many types of solder paste that are different material parameters. It can stop and automatically alert faults. In addition, it has many functions, such as welding, maintenance and drying.
Structural performance and operation have been improved and improved. Using a bilingual Chinese-English operating system and an efficient and convenient power switch.

Specification:
- operating voltage: AC220V (AC110V control)
- working frequency: 50-60Hz
- maximum output power : 600W
- heating methods: infrared radiation and heating by hot air mixing
- operating system : Chinese-English operating system
- operating mode: automatic welding mode, adjustable maintenance mode
- temperature curve paragraph: heating, heating, welding, heat preservation and cooling segment.
- temperature range and time on heating: 70 ~ 150, 0 ~ 5 Min
- temperature range and heating time: warm-up temperature to 220, 0 ~ 5 Min
- temperature and time range on the solder: heating temperature to 300, 0 ~ 30 s
- temperature and time range on the conservation of heating: welding temperature- (0 ~ 50)
- effective welding area: 180 × 120mm
- size: 300 × 250 × 160mm

Package included:
- 1 x BGA Soldering Station
