Quality RY3306 Optical Fiber Identifier fiber optic Ray Recognizing 800-1700nm

Tags: RY3306

Availability: In stock, usually dispatched in 1 business day

  • Price:$170.97
  • Price in reward points: 1710 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $167.55 $164.13 $159.00 $152.16 Contact US
Quantity:

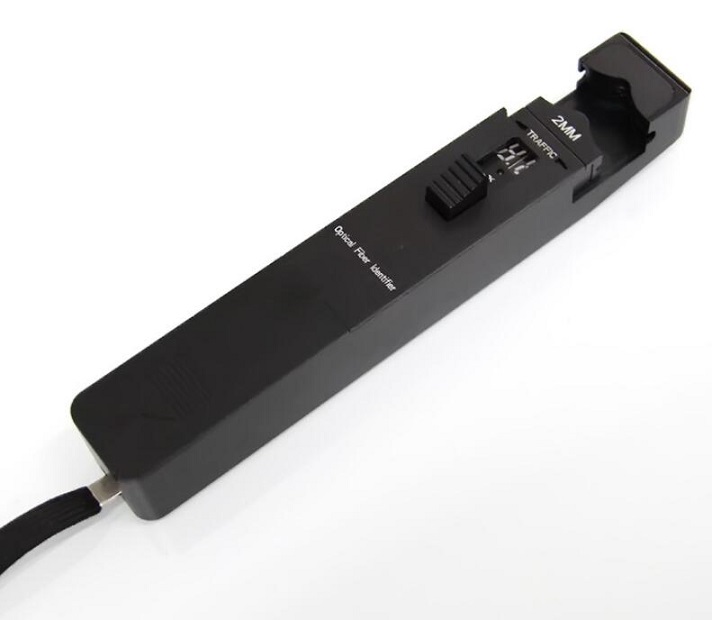

Quality RY3306 Optical Fiber Identifier fiber optic Ray Recognizing 800-1700nm




Product Description:

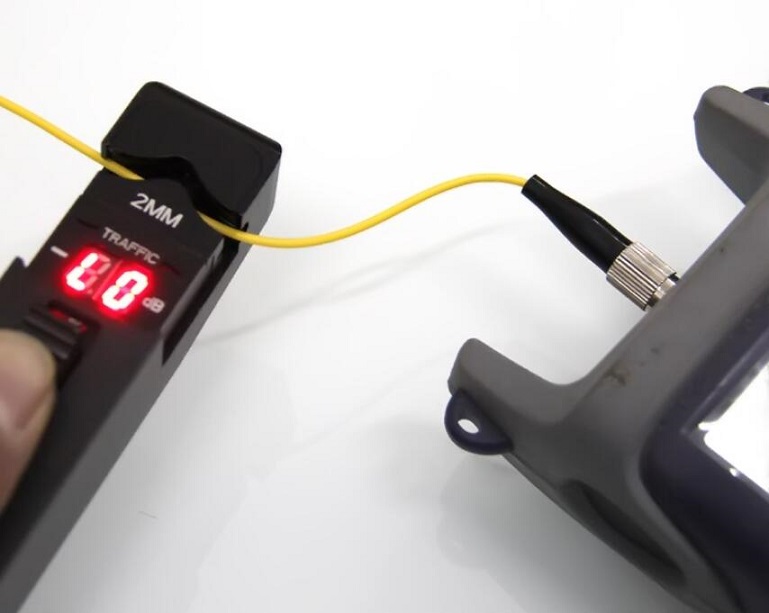

- RY3306 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber.When the traffic is present,the intermittently audible tone is activated.
- The WF3306B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz.When they are used to detect the frequency,the continuously audible tone is activated.

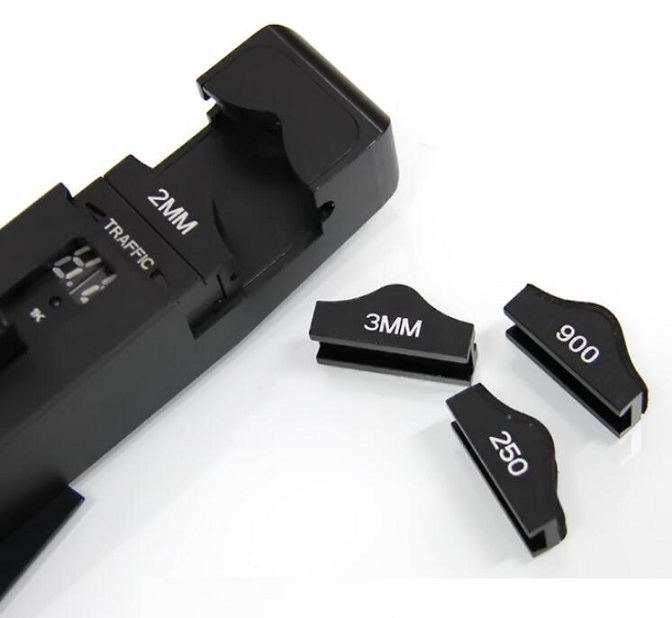

- There are four adapter heads available: Ø0.25,Ø0.9,Ø2.0 and Ø3.0.The WF3306B optical fiber identifier is powered by a 9V alkaline battery (Battery is not included in this package).

Features:

- Identified Wavelength Range 800-1700 nm
- Identified Signal Type CW
- 270Hz+5%,1kHz+5%,2kHz+5%
- Accurate test with Sunshade
- accurate test with Sunshade
- Easy-to-replace adaptors
- Lower power indication
- Efficient fiber identifier
- Fiber tester

Key Features:

- Easy-to-use with"ONE KEY"operation.
- Efficiently identifies the traffic direction and frequency tonel (270Hz,1KHz,2KHz) with audible warning.
- Displays the relative core power.
- More accurate test with Sunshade.
- Easy-to-replace adaptors.
- Durable metal housing and quality construction.
- Lower power indication.

Specifications:
- Type: RY3306
- Identified Wavelength Range:800-1700 nm
- Identified Signal Type: CW,270Hz+5%,1kHz+5%,2kHz+5%
- Detector Type: Ø1mm InGaAs 2pcs
- Adapter Type: Ø0.25 (Applicable for Bare Fiber);Ø0.9 (Applicable for Ø0.9 Cable );Ø2.0 (Applicable for Ø2.0 Cable );Ø3.0 (Applicable for Ø3.0 Cable )
- Signal Direction: Left & Right LED
- Singe Direction Test Range: (dBm,CW/0.9mm bare fiber);-46~10(1310nm);-50~10(1550nm)
- Signal Power Test Range: (dBm,CW/0.9mm bare fiber);-50~+10
- Signal Frequency Display (Hz): 270,1k,2k
- Frequency Test Range: (dBm, Average Value);Ø0.9,Ø2.0,Ø3.0,-30~0 (270Hz,1KHz)/-25~0 (2KHz);Ø0.25:-25~0 (1KHz,2KHz)/-20~0 (2KHz)
- Insertion Loss(dB, Typical Value): 0.8 (1310nm);2.5 (1550nm)
- Operating Temperature:-10-+70
- Storage Temperature:-25-+70
- Dimension (mm):196X30.5X27
- Weight (g):190

Package List:
- 1 x RY3306 Optical Fiber Identifier
- 1 x Bag
- 1 x User manual

Note: Battery is not included in this package.
