JW3306B Handheld Optical Fiber Identifier 800-1700NM Fiber Optic Identifier Set For SM MM Fiber
Description:
JW3306 optical fiber identifier is a necessary tool for optical fiber maintenance. It is used for non-destructive fiber identification and can be detected in any position of single-mode and multi-mode fiber. During maintenance, installation, wiring and restoration, it is often necessary to find and separate a specific optical fiber without interrupting the business, and inject 1310nm or 1550nm band modulation (270Hz, 1KHz, 2KHz) signals into the optical fiber through one port , Use the identifier to recognize it on the line. The optical fiber identifier can measure the optical power and direction of optical fiber transmission.
Features:
- Digital display of relative optical power
- Online testing without interrupting business
- Can recognize 270Hz, 1KHz, and 2KHz modulation signal
- Comes with a hood to provide more accurate test results outdoors
- One-touch operation. Simple and efficient

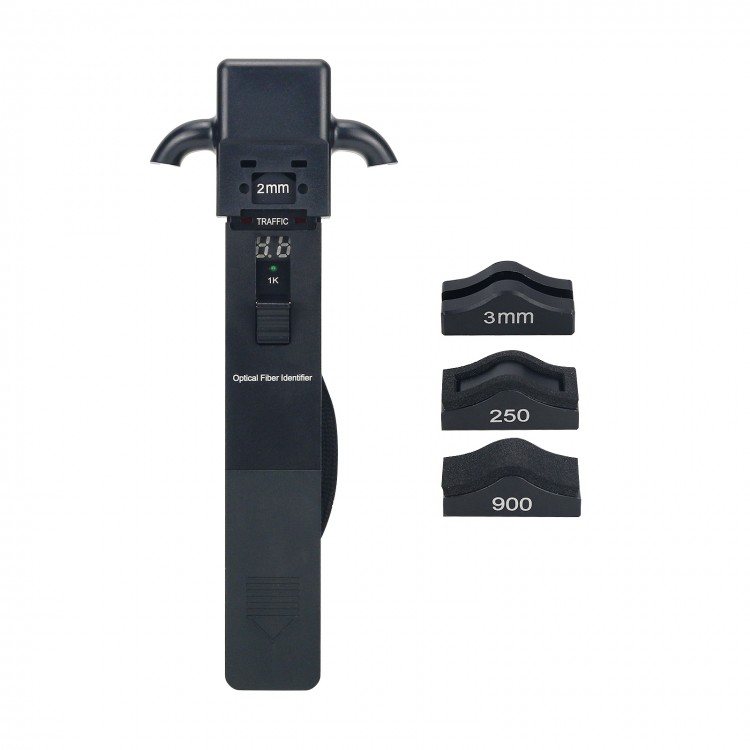

- With four fiber optic adapters, supporting bare fiber, diameter 0.9mm, diameter 2.0mm, diameter 3.0mm fiber
- Mechanical damping design. Self-locking position and no damage to optical fiber
Specifications:
- Wavelength range: 800-1700nm
- Probe type: InGaAs
- Modulation frequency: CW, 270Hz, 1KHz and 2KHz
- Adapter types: Diameter 0.25mm (bare fiber); Diameter 0.9mm/2.0mm/3.0mm (pig tail)
- Signal direction detection range: -46 to 10dBm (1310)/-50 to 10dBm (1550)
- Dimensions: 196 x 30.5 x 27mm/7.7 x 1.2 x 1.1"
Package Included:
- 1 x Set of Optical Fiber Identifier
