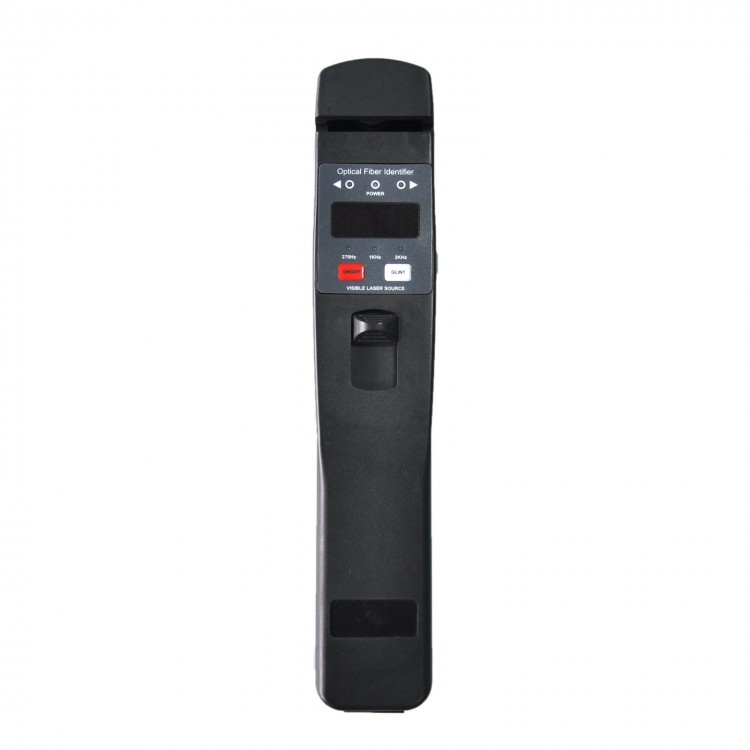

JW3306D Handheld Optical Fiber Identifier 650nm Built-in 10mW Visual Fault Locator
Description:
JW3306D Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber. Meanwhile it also has Visual Fault Locator module with fault location function. It is the ideal instrument for online test.
Functions:
- Indicate the signal directions and power in fiber
- Indicate the signal presence or absence(Live or dark fiber)
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
- Displays the relative core power
- Easy-to-replace adaptors
- Lower power indication
- Build in VFL function
Specifications:
- Wavelength: 800nm to 1700nm
- Probe Type: InGaAs
- Modulation Frequency: CW, 270Hz, 1KHz, 2KHz
- Signal Direction Indicators: Left & Right LED Direction Indicators
- Signal Direction Detection Range (dBm, CW/0.9mm Bare Fiber): > -30dBm
- Signal Power Detection Range (dBm, CW/0.9mm Bare Fiber): > -30dBm
- Frequency Detection Range (dBm, Average Value): > -20dBm
- Visual Fault Locator: Support
- Red Light Output Power: 10mW
- Operating Temperature: -10℃ to 40℃
- Storage Temperature: -25℃ to 70℃
- Dimensions: 230 x 43 x 36mm
- Signal Frequency Indication: 270Hz, 1KHz, 2KHz
Package Included:
- 1 x JW3306D Optical Fiber Identifier
Note: Battery is not included in the package.
