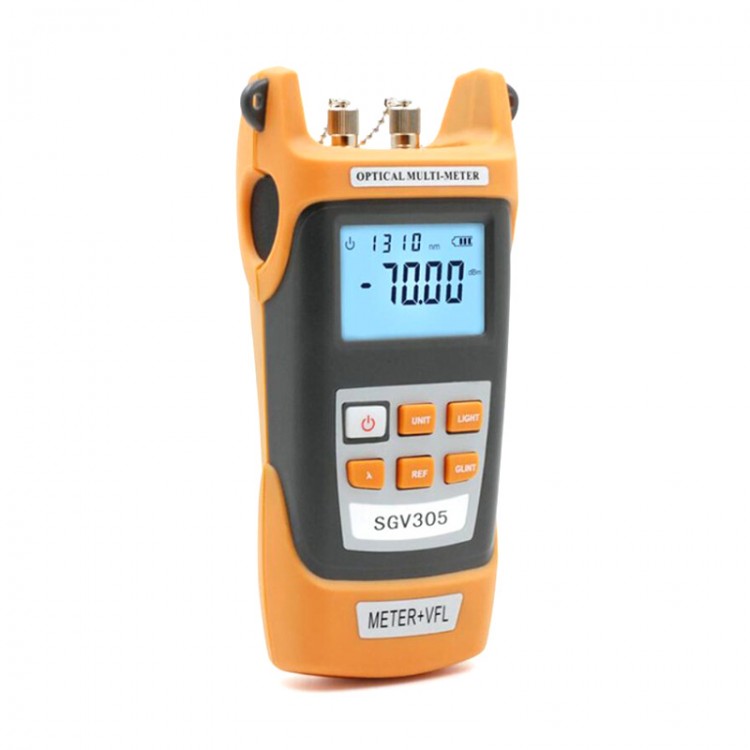

SGV305 Optical Power Meter Tester Handheld Laser Light Source Fiber Meter 5MW Visual Fault
Product Description:
- SGV305 series of portable optical power meter is a kind of accurate and durable portable instrument for the installation, operation and maintenance of optical fiber network specially designed..
- Product has a compact shape, can choose to switch backlight display and automatic shutdown function, optical power ultra wide test range, precision testing accuracy to generic interface and design. At the same time, linear index (MW) and nonlinear indexes (DBM) and wavelength selection screen display.
- This instrument features complete, easy to use, easy to carry, is each fiber optic technology and construction personnel must be equipped with the maintenance tools.
Power:LCD shows the measured optical power, dBm, mW, uW, nW,, dB, 850nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm,1625nm etc.
Specifications:
- Place of Origin:China (Mainland)
- Model Number:SGV305
- Available wavelength:800-1700nm
- Sensing Fiber: InGaAs
- VD708B Measurement Range: -70~+3dBm
- Uncertainty: ±5%
- Standard Wavelength: 850/1300/1310/1490/1550/1625nm
- Power supply: 1.5v Battery2
- Resolution: 0.01dB
- Optical connector: interchangeable FC,SC/ST with built-in universal 2.5mm adaptor
- Visual Fault Locator Output power: 5 mw
- Central wavelength: 650nm
- Duration: more than 48 hours
- Operating temperature: -10 to 60
- Storage temperature: -25 to 70
- Weight: 400g
Package List:
- 1 x SGV305 Optical Power Meter Tester
