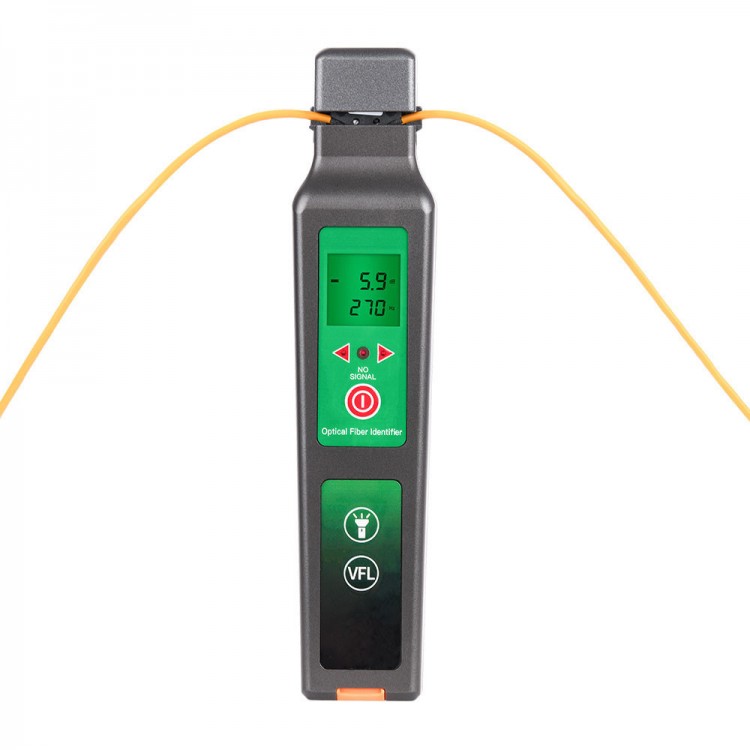

Fiber Optical Identifier with Built 800nm-1700nm SM and MM Optical Fiber Identifier Handheld fiber cable FTTH With 10MW VFL

Fiber Optical Identifier with Built 800nm-1700nm SM and MM Optical Fiber Identifier Handheld fiber cable FTTH With 10MW VFL

Describtion:
- Suitble for 0.25/0.9/2.0/3.0mm fiber
- LED backlight display,suitable for different enviroment
- Test sensitivity: -40dBm to 10dBm
- compact size and portable
- with VFL function,2.5mm universal port
- Test range up to 10km, high stability

Features:
* Indicates the signal direction and power in the fiber
* Indicates presence or absence of signal (Live or Dark Fiber)
* Effectively identify traffic direction and frequency tones (270Hz, 1KHz, 2KHz) with audible warning
* Show relative core power
* No need to change adapter
* Low power indication
* Built-in VFL function

Specification:
- Wavelength recognition range: 800nm to 1700nm
- Signal recognition type: CW, 270 Hz±5%, 1 kHz±5%, 2 kHz±5%
- Detector type: 1mm InGaAs 2 pcs
- Compatible fiber types: Universal bracket for 0.25 (bare fiber), 0.9, 2.0, 3.0 cables
- Signal direction: left and right LED
- Optical power reading range: -40 dBm to 10 dBm
- Signal frequency range: 270Hz, 1kHz, 2kHz
- Power type: AA*2 (without)
- Operating temperature range: -10°C to 60°C
- Storage temperature range: -25°C to 70°C
- Size: 219mm*45mm*28mm
- Weight: 235 grams


VFL features:
- Power Range: 10mW
- Test distance: 8-10 kilometers
- Wavelength range: 650 nm
- Light Type: LD
- Flashlight: yes

Package list:
- 1*Fiber identification instrument

notes:
1. Due to manual measurement, please allow 1-3mm error.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!
