Quark Quantum Mini Development Kit Development Board Full Set with Cooling Fan Parts for Linux

Quark Quantum Mini Development Kit Development Board Full Set with Cooling Fan Parts for Linux

Quark Wiki:
https://wiki.seeedstudio.com/cn/Quantum-Mini-Linux-Development-Kit/

Description:
1. Quark-N SoM
Quark-N is possibly the smallest development board for Linux on the market. It is suitable for scenarios such as as a personal server, intelligent voice assistant, and for robotic development. Its 6-layer high-density gold PCB design integrates a complete system for ARM-Linux (CPU, DDR, eMMC) in a 2x3cm/0.8x1.2" space. Also, most of the GPIO is led out by the board through the M.2 Key-A golden finger interface to minimize the bottom board design difficulty. You can easily design your own base plate with two-layer boards to realize your interesting ideas.

2. Atom-N Expansion Board

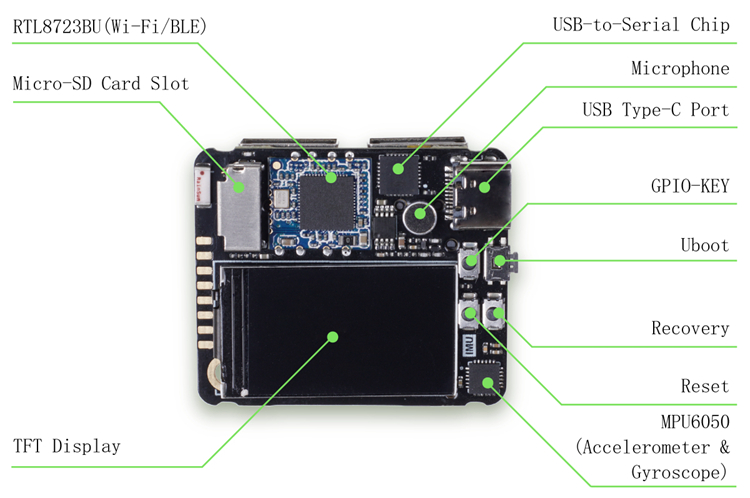

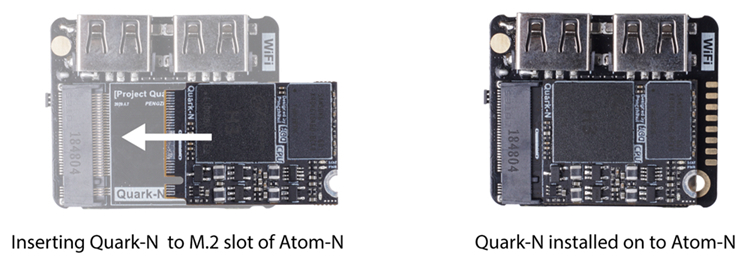

The carrier board is called Atom-N, and Quark-N is connected to Atom-N through the M.2 interface. Atom-N leads out a row of golden finger pins to realize I/O expansion, expand SPI, I2C, UART, GPIO, and other interfaces to facilitate the completion of your own design. Also, it is equipped with a microphone, MPU6050 motion sensor (accelerometer and gyroscope), onboard 4 buttons (GPIO-KEY, Uboot, Recovery, Reset), IPS display, Wi-Fi/Bluetooth connectivity which greatly expands the possibilities with this product.

Features:
- Ultra-small (31x22mm/1.2x0.9") and highly integrated Quad-core for Cortex-A7 Linux SoM (System on Module)
- Carrier board (40x35mm/1.6x1.4") with rich peripherals and interfaces: Microphone, Gyroscope, Accelerometer, 4 x Buttons (GPIO-KEY, Uboot, Recovery, Reset) and a TFT display
- Integrates a complete system for ARM-Linux for advanced development
- Wireless Connectivity (Wi-Fi + Bluetooth)
- Ability to design your own baseboard due to the M.2 interface
- Wide range of applications such as a personal server, intelligent voice assistant, and robotic development.
- Pre-installed xrdp Remote Desktop Server, easy monitor control without the need of HDMI cable

Technical Parameters:
Quark-N SoM:
- CPU: for Allwinner H3, Quad-core Cortex-A7 at 1GHz
- Memory: 512MB LPDDR3 RAM
- Storage: 16GB eMMC
- Interface: Ethernet, SPI, I2C, UART, Reusable GPIO, MIC, LINEOUT
- GPIO: 2.0mm pitch 26 pin-header, USB-Serial, I2C, UART, SPI, I2S, GPIO
- PCB: 6-layer high-density immersion gold design
- Working Temperature: 0-80°C
- Size: 31x22mm/1.2x0.9"

Atom-N Carrier Board:
- Slot: M.2 interface for Quark-N
- USB: USB 2.0x2; USB Type-Cx1
- Wireless Connectivity: RTL8723BU; Wi-Fi: IEEE 802.11 b/g/n at 2.4GHz; Bluetooth: BT V2.1/ BT V3.0/ BT V4.0
- Onboard Peripherals: 1 x Microphone; 1 x MPU6050 motion sensor (gyroscope + accelerometer); 4 x Buttons (GPIO-KEY, Uboot, Recovery, Reset); 1 x TFT display
- External Storage: Micro-SD card slot
- Size: 40x35mm/1.6x1.4"

Application Scenarios:
- Microcomputer
- Personal website server
- Remote connection
- Image processing
- Gesture recognition
- Voice assistant

Package Included:

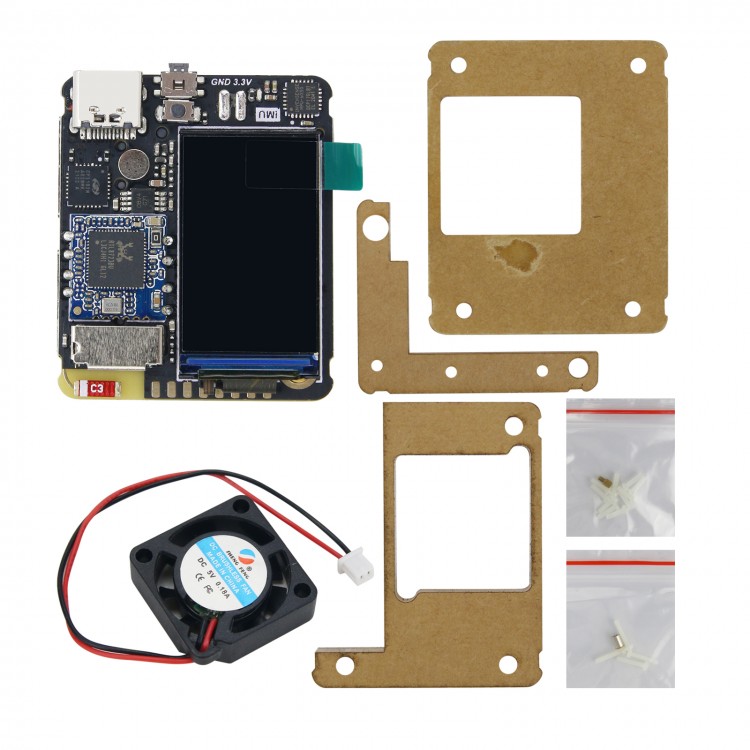

- 1 x Integrated Board (Quark-N and Atom-N)

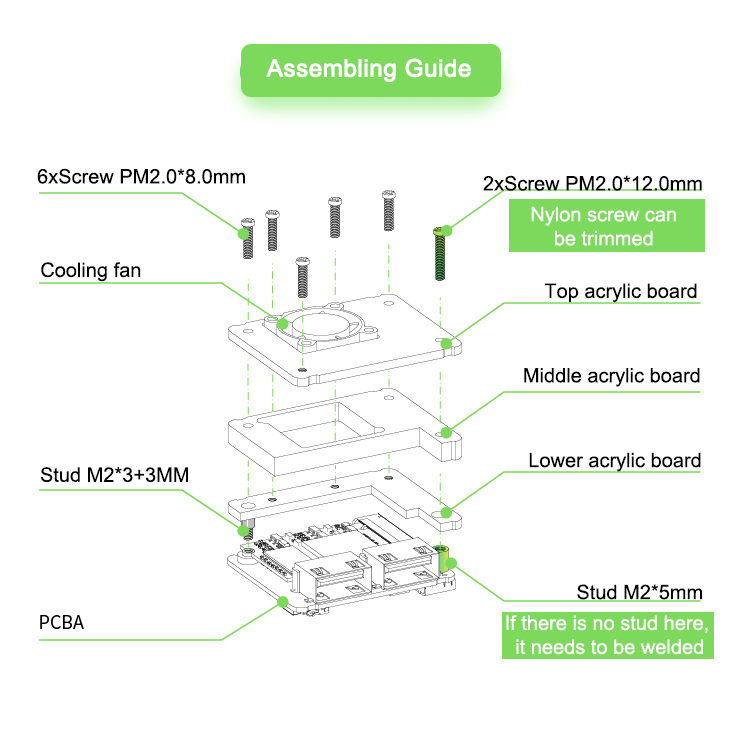

- 1 x Set of Cooling Fan Parts (include fan, acrylic boards and screws)

Note:
- Assembling is needed.
