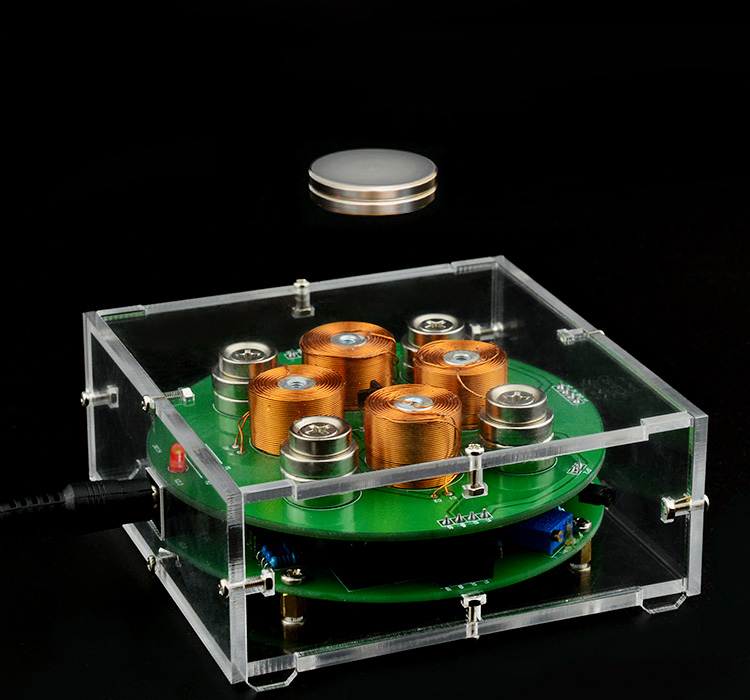

QW-040 Magnetic Levitation Magnetic Suspension Assembled Version with Acrylic Shell and Power Adapter
Features:
- Your ideal magnetic levitation toy
- Stable suspension performance
- Generating fantastic effects
- Low voltage ensures safe use
- Suitable for college and high school students and teenagers
Specifications:
- Item name: Electron levitation kit
- Input voltage: DC 9-12V (2A)
- Power consumption: around 10-12W

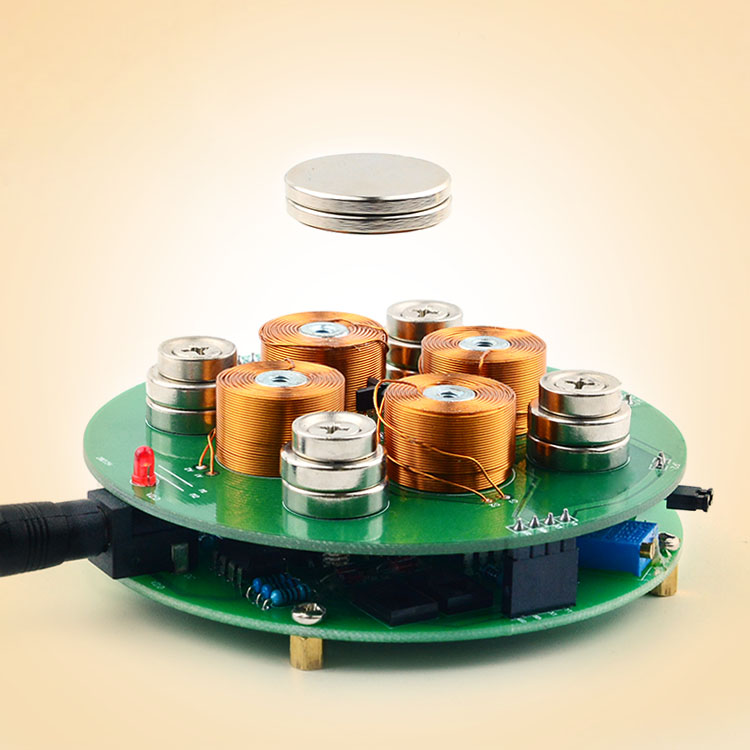

- Structure: Analog circuit + Hall sensor
- Shell size: about 96 x 96 x 37.8MM/3.8 x 3.8 x 1.5"
- Weight of the module: about 100-150g/0.2-0.3lb
- Weight: around 400g/0.9lb (including shell and power adapter)

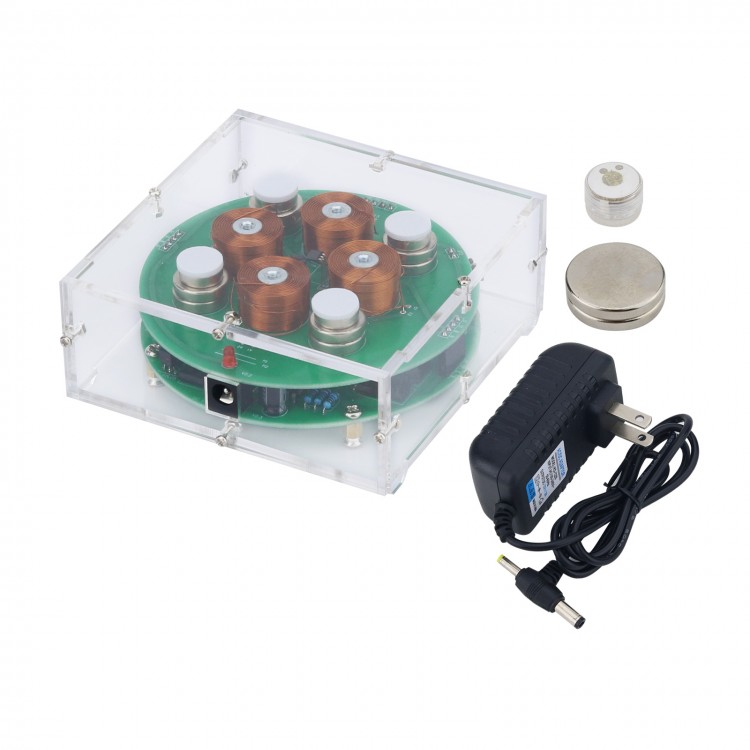

Package Included:
- 1 x Magnetic Levitation Module
- 1 x Power Adapter
Note:

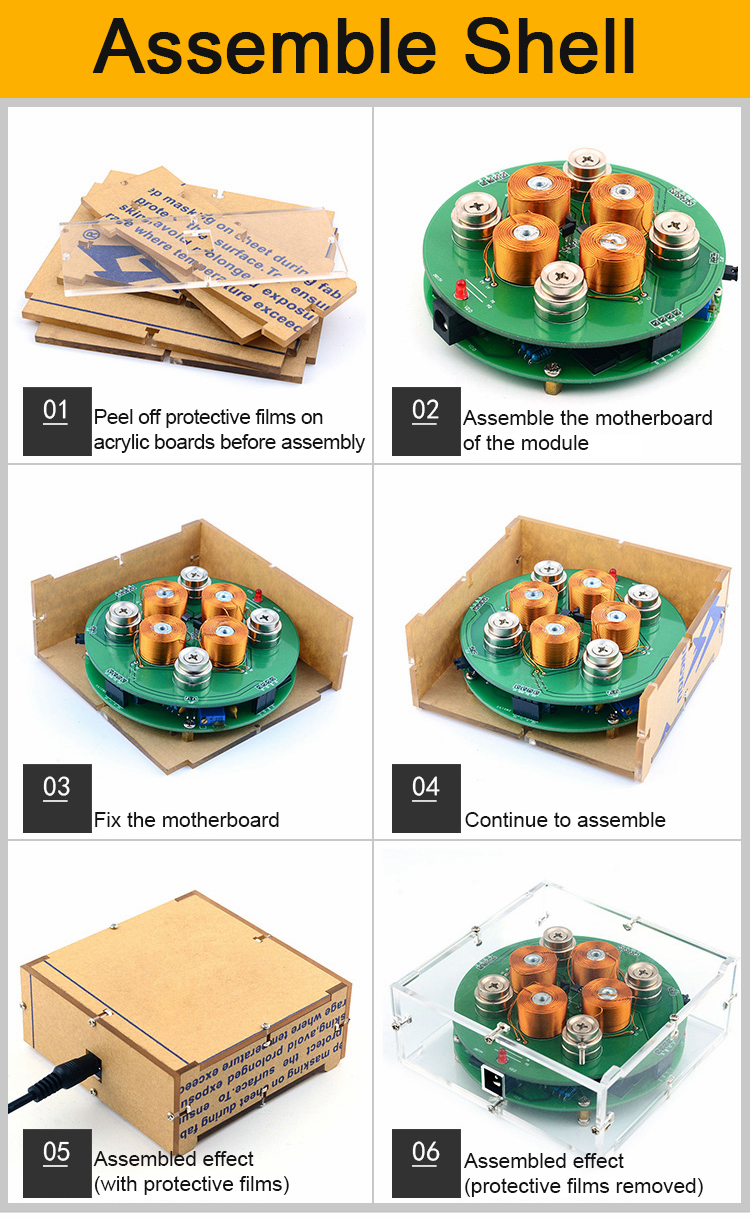

- Please peel off the protective film on the surface of acrylic boards before using.
- Assembling is needed.
- About the indicator: The LED does not light up after it is powered-on. The indicator only lights up when the coil senses a float.
- About jumper: During commissioning, jumper is used to connect a multimeter to monitor the current. After debugging, you need to cover the jumper with a jumper cap.
