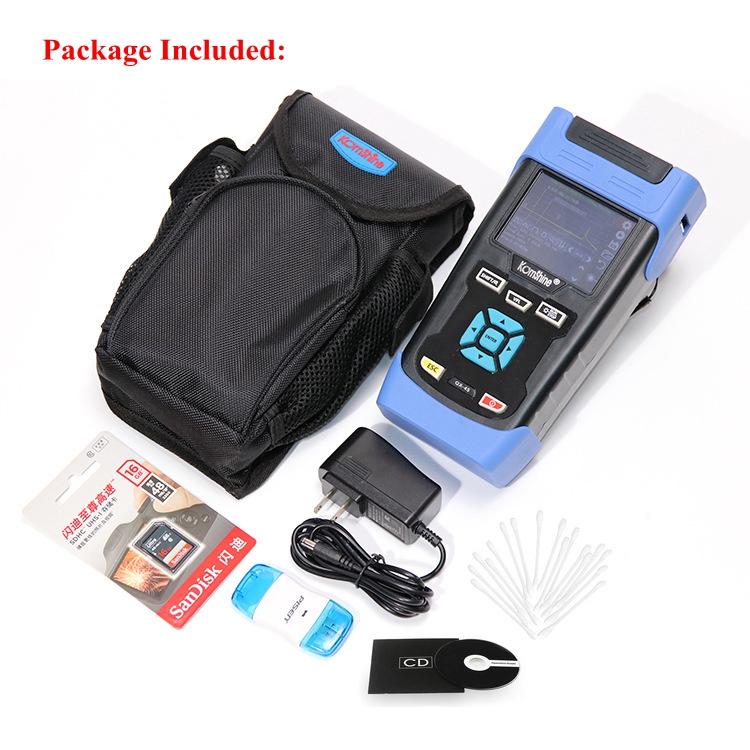

QX-45 120KM OTDR Fiber Optic Tester 1310/1550nm Built-in VFL 3.5" Touch Screen
Features:
- Dust-proof design
- 3.5 inch color LCD touch screen
- With built-in visual fault locator
- Applicable fiber: SM Fiber Networks
- <1.6m extra-short event blind zone
- Wavelength: Singlemode 1310/1550nm
- Distance Range: 0.3, 1, 3, 5, 10, 30, 60, 120km (single-mode)
- USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
- Long-duration time over 15 hours
Specifications:
- Model: QX-45
- Dynamic Range(dB): 32/30dB
- Wavelengths: 1310/1550
- Display: 3.5 inch TFT LCD Touch Screen
- Light Source: LD
- Optional Connector: FC/UPC; SC/PC
- Measurement Range (KM): 0.3, 1, 3, 5, 10, 30, 60, 120
- Pulse Width (ns): 5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240
- Duration of Measurement: 15s, 30s, 1min, 2min, 3min
- Attenuation Blind Zone (2): 10m
- Event Blind Zone (2): 1.6m
- Distance Accuracy(m): ±(1 m + 5x10-5x distance + sampling interval)
- Data Storage: >60000 Pieces Tested Curves
- Communications Port: USB
- Visual Light: Wavelength: 650nm; Output Power (mW): ≥10; Measurement Distance (km): 10
- Detect Communications Light: Yes
- Capacity: 4200mAh, >15 hours
- Environment: Storage Temperature: -40 to 70℃; Humidity: 5% to 95% (No Condensation)
- Size: 250 x 130 x 66mm
