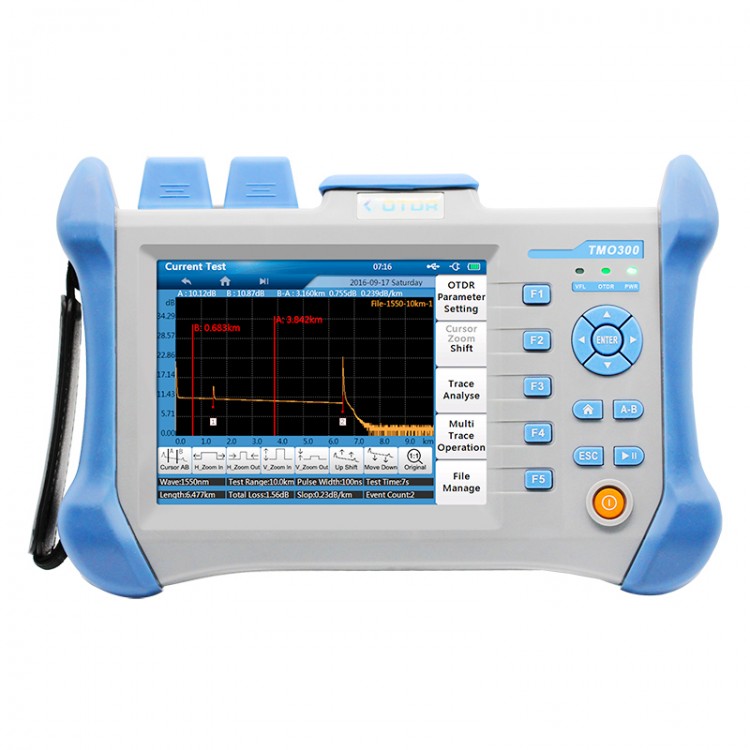

TMO300 (1310/1550nm 32/30dB) Compact OTDR Tester Optical Time Domain Reflectometer 5.6" Touch LCD

TMO300 (1310/1550nm 32/30dB) Compact OTDR Tester Optical Time Domain Reflectometer 5.6" Touch LCD

Introduction of Functions:

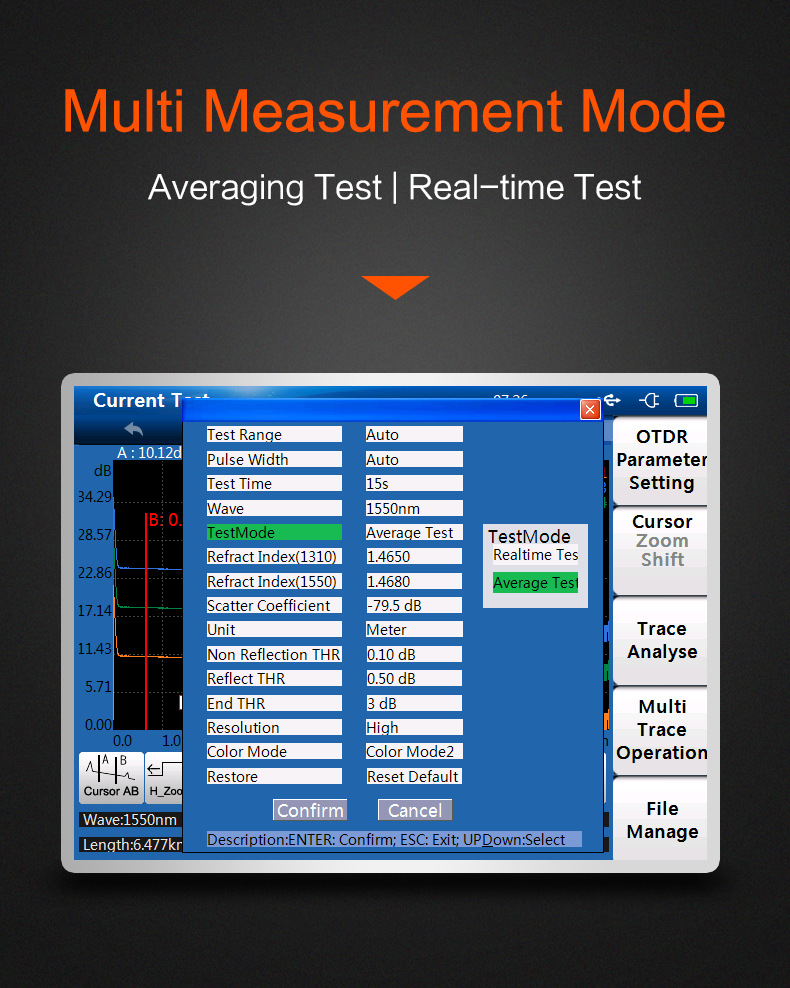

- Automatic measurement mode: There is no need to select the measurement distance and measurement pulse width. The system will automatically predict the length of the optical fiber line, automatically select the appropriate measurement range and measurement pulse width, and the trace can also be automatically saved or manually saved, which is convenient for data analysis
- Multi-wavelength measurement mode: In the parameter setting, you can choose to use the dual-wavelength test mode. The system will automatically switch the wavelength for measurement, so that different measurement wavelengths can be used for loss calculation in the same section of fiber for data analysis

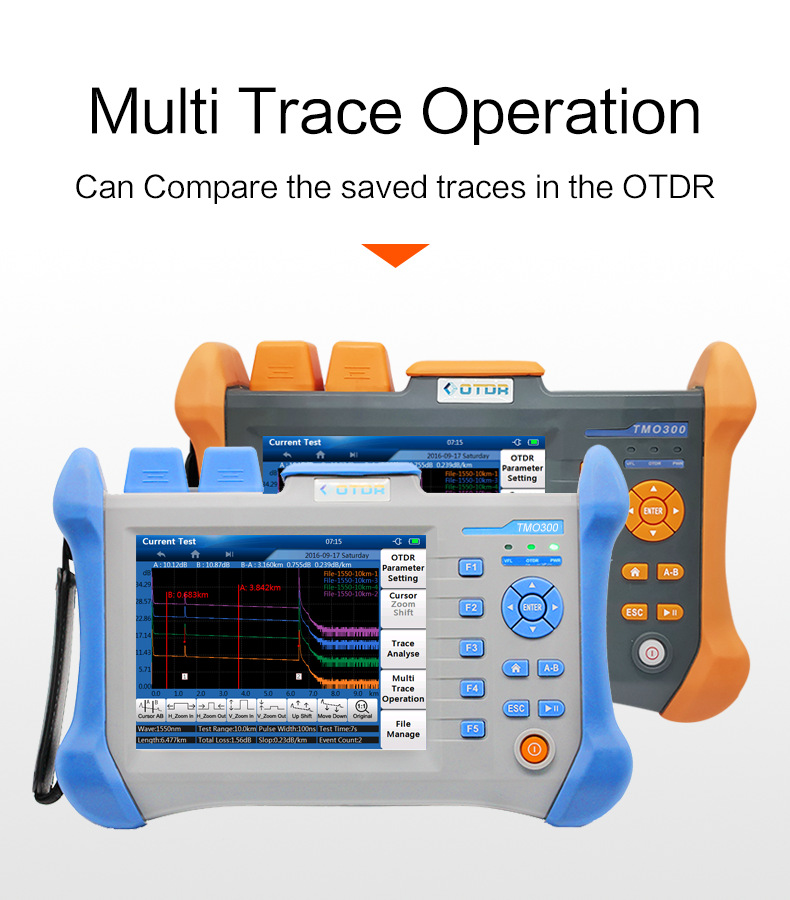

- Multi-trace analysis function: It can realize the comparison and display analysis and calculation between any trace files, and up to 4 traces can be displayed at the same time
- Large-capacity lithium-ion polymer battery: long standby time, can be used for long-term measurement
- Online optical detection: can effectively protect test instruments and communication equipment

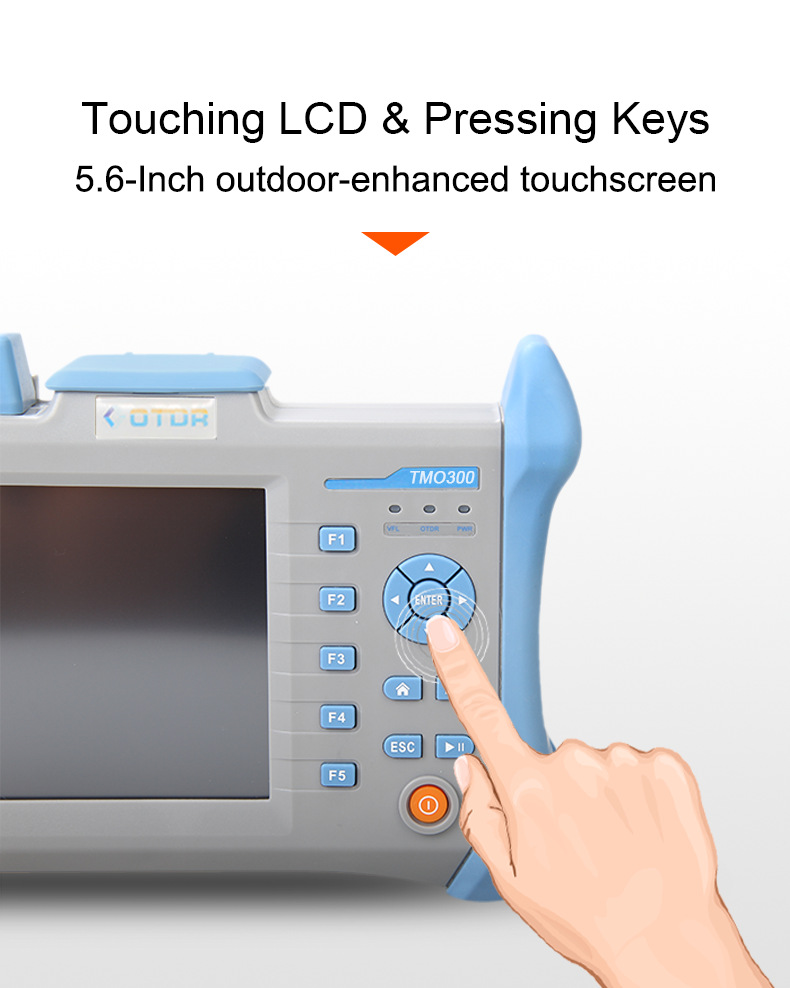

- Dual operation mode: pure screen touch operation or pure physical button operation can realize all functions, which is convenient for engineers with different usage habits
- Data analysis: The device can save and generate standard curve files (.sor), with a storage capacity of more than 20,000

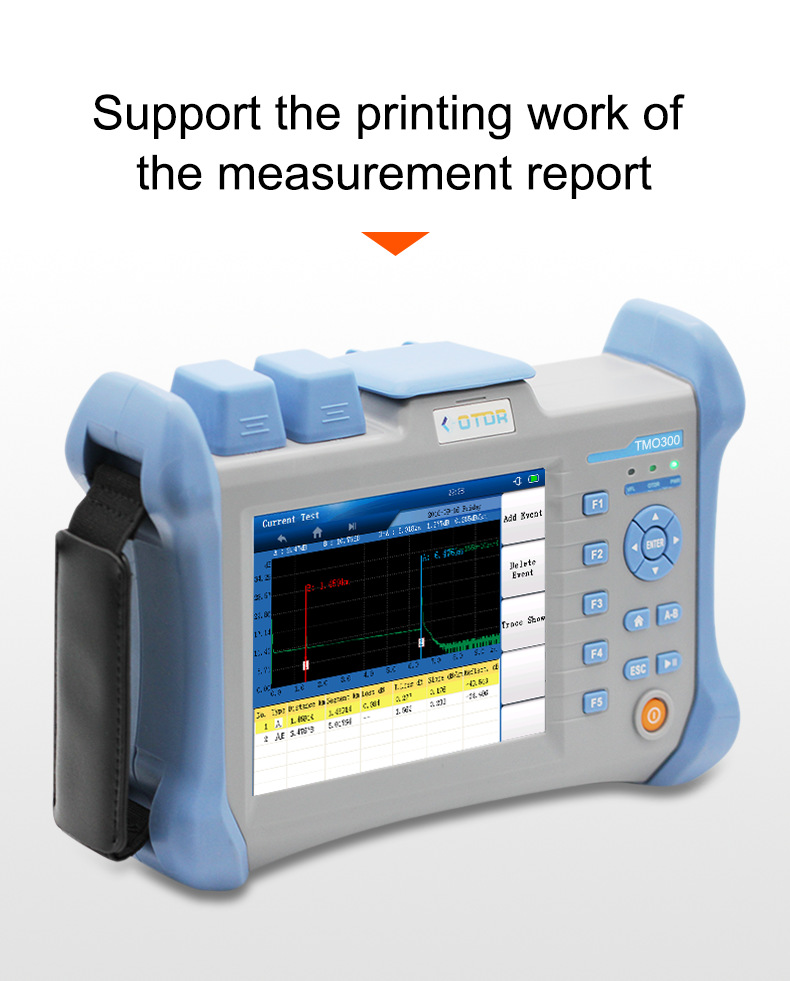

- It is easy to realize the printing of analysis reports and the printing of curves to facilitate project acceptance

Technical Parameters:
- Pulse Width: (SM 1310/1550NM) 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1μs, 2μs, 5μs, 10μs.
- Distance Range: (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km
- Sampling resolution: minimum 0.05m
- Sampling point: 128,000 points
- Linearity: ≤0.05dB/dB
- Loss threshold: 0.01dB
- Loss resolution: 0.001dB
- Distance resolution: 0.01m
- Distance accuracy: ±(1m+test distance×3×10-5+sampling resolution) (excluding refractive index error)
- Data storage: more than 80,000 test curves
- Red light source: 10mW, CW/2Hz

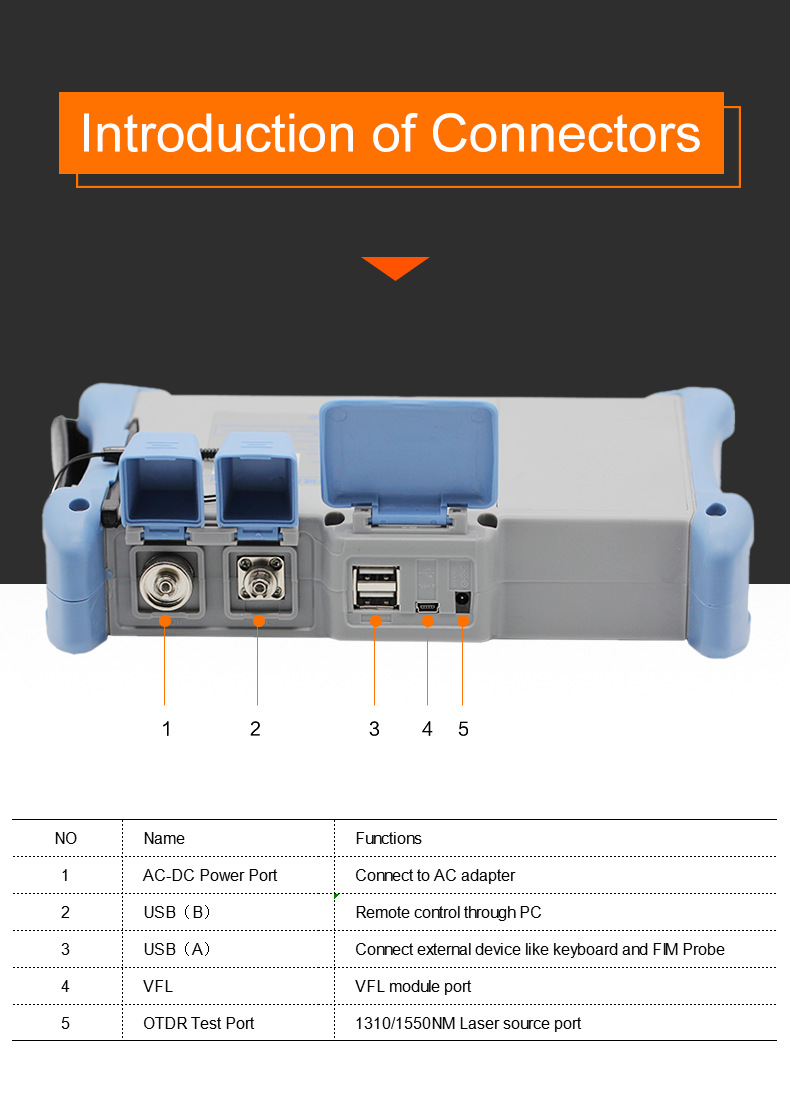

- Interface: 3 USB ports (Type Ax2, Type Bx1)
- Display: 5.6-inch touch screen
- Battery: 7.4V/4.4Ah lithium battery, can be used continuously for 8 hours
- Environment: Working temperature: -10℃ to +50℃; Storage temperature: -20℃ to +70℃; Humidity: ≤95% (no condensation)
- Size: 253 x 168 x 73.5mm

Features:
- 5.6-inch touch LCD screen, 7.4V/4.4Ah large capacity lithium battery
- Multiple dynamic range and wavelength combinations are available
- The event blind zone can be as low as 0.8m, and the attenuation blind zone is 4m
- Multiple measurement modes, support two operations of touch screen and physical buttons, one button can complete measurement
- With line optical alarm function to maximize the protection of instrument optical modules
- Real-time test function, convenient to observe the real-time fiber connection effect

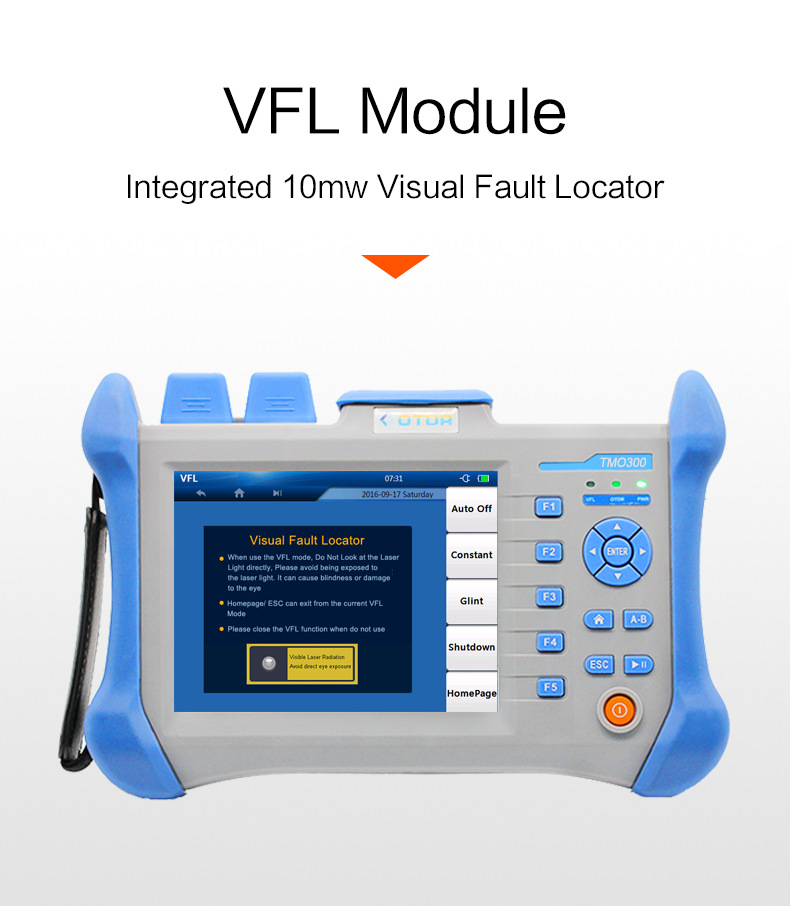

- Built-in high-power red light source can easily detect the fault point in the near-end optical fiber line with naked eyes
- Support Chinese and English input, have a friendly input interface, fully simulate computer keyboard input

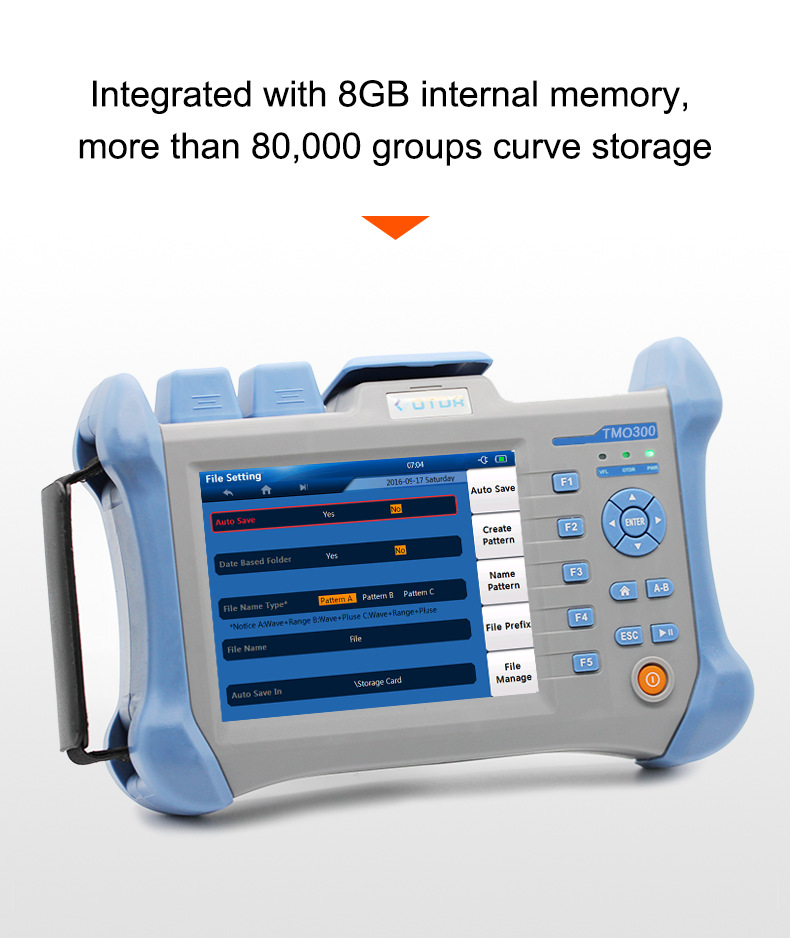

- Built-in 8GB memory, can store more than 80,000 curves
- Configure PC data analysis and simulation software, which can process, generate and print test reports in batches
- Equipped with 2 main USB ports for computer simulation control and external storage devices

Package Included:
- 1 x Set of OTDR Tester
