• QY-PS2-DC/3-SE DC-3GHz 2-Way Resistive Power Splitter DC-3000MHz Resistive Power Divider w/ SMA Port

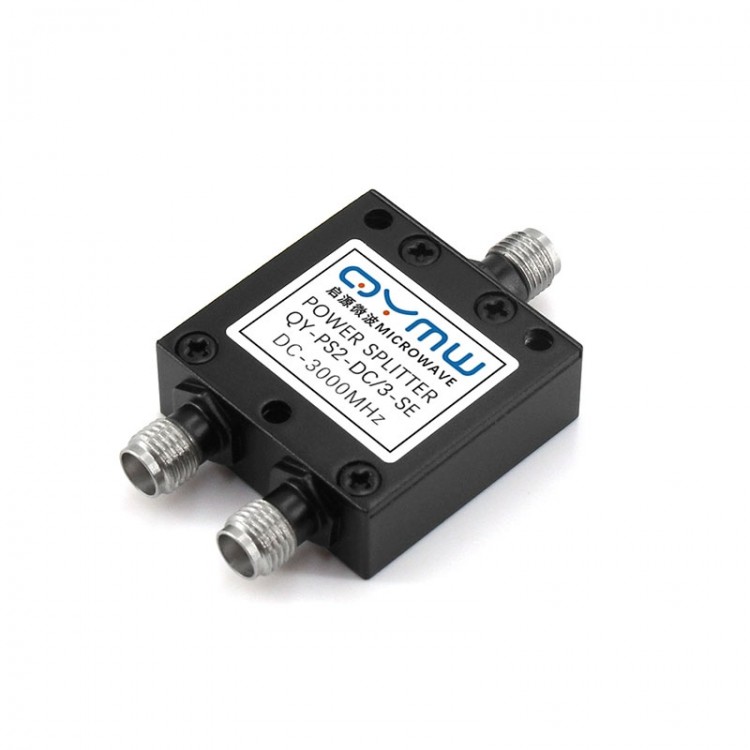

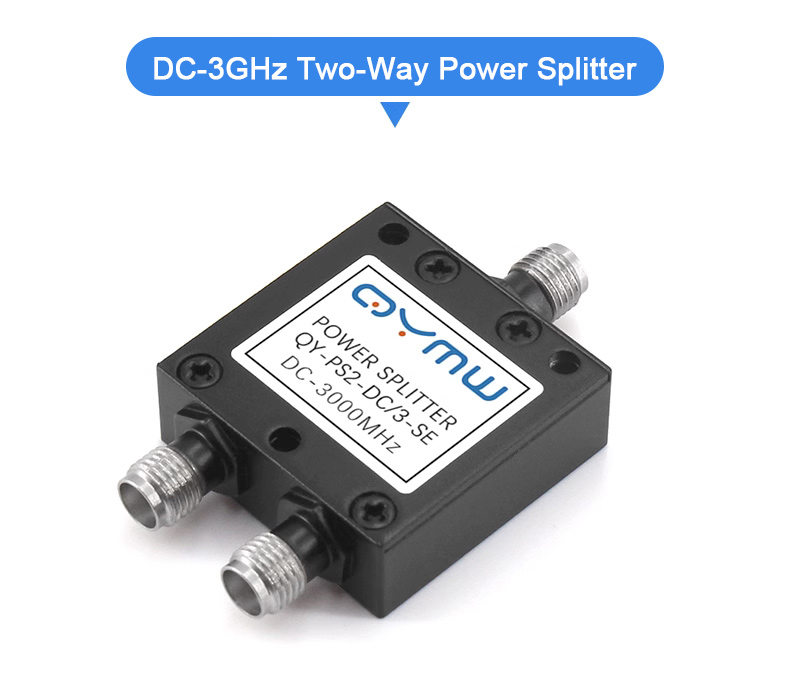

QY-PS2-DC/3-SE DC-3GHz 2-Way Resistive Power Splitter DC-3000MHz Resistive Power Divider w/ SMA Port

Availability: In stock, usually dispatched in 1 business day

  • Price:$55.40
  • Price in reward points: 554 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.29 $53.18 $51.52 $49.31 Contact US
Quantity:

QY-PS2-DC/3-SE DC-3GHz 2-Way Resistive Power Splitter DC-3000MHz Resistive Power Divider w/ SMA Port

Features:

- RF resistive power splitter
- With SMA female connector
- Connectors made of stainless steel
- Durable to use

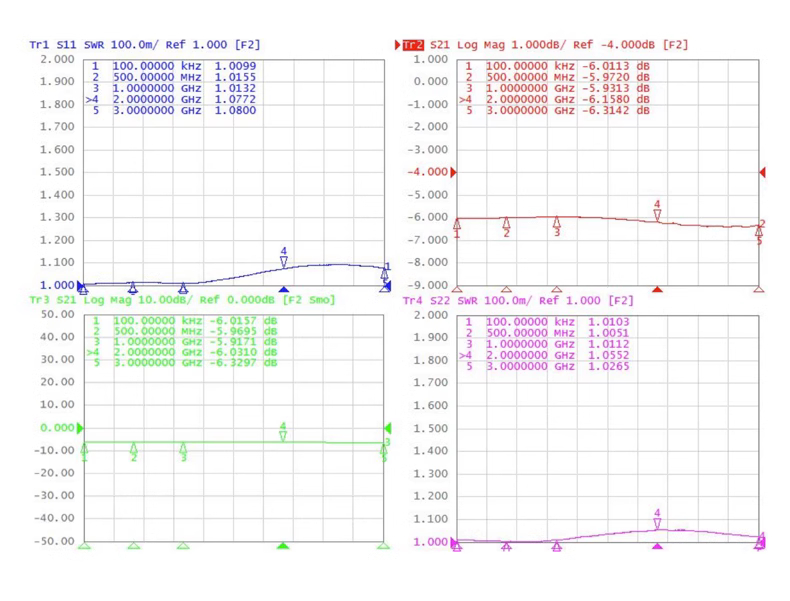

Specifications:
- Model: QY-PS2-DC/3-SE
- Frequency range: DC~3000MHz
- Insertion loss: ≤ 7dB
- Input standing wave: Typ. 1.16/Max. 1.25
- Output standing wave: Typ. 1.12/Max. 1.25
- Isolation: Min. 5.6dB
- Amplitude balance: ≤ 0.3dB
- Phase balance: ±3°
- Impedance: 50 Ohms
- Port connector: SMA-Female
- Withstand power: 2W
- Operating temperature: -35°C to +75°C
- Surface treatment: black paint

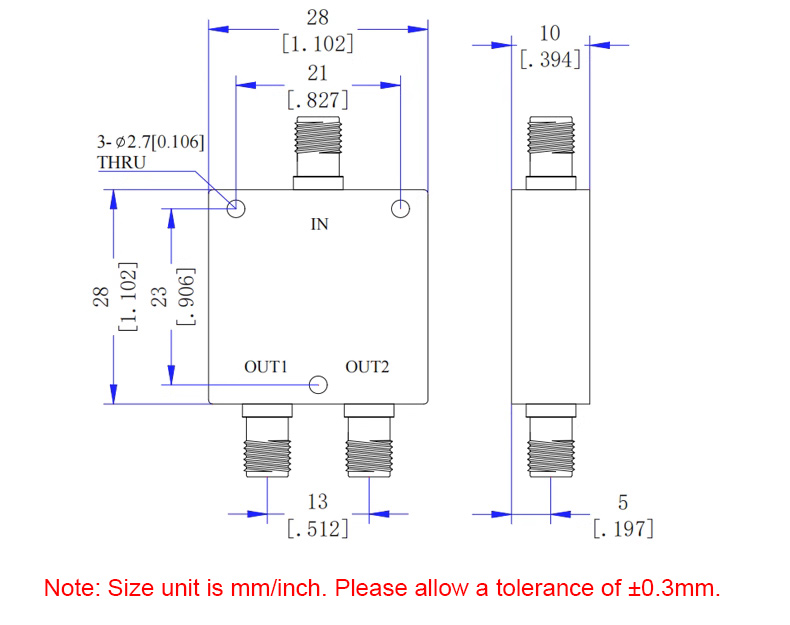

- Dimensions: 28 x 28 x 10mm/1.1 x 1.1 x 0.4"
- Weight: 21g/0.05lb

Package Included:
- 1 x Resistive Power Splitter
