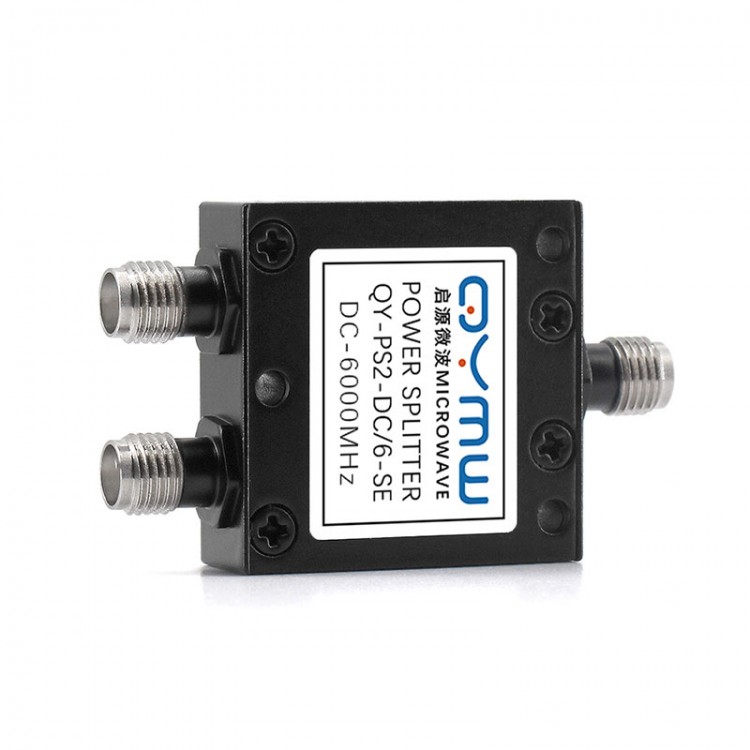

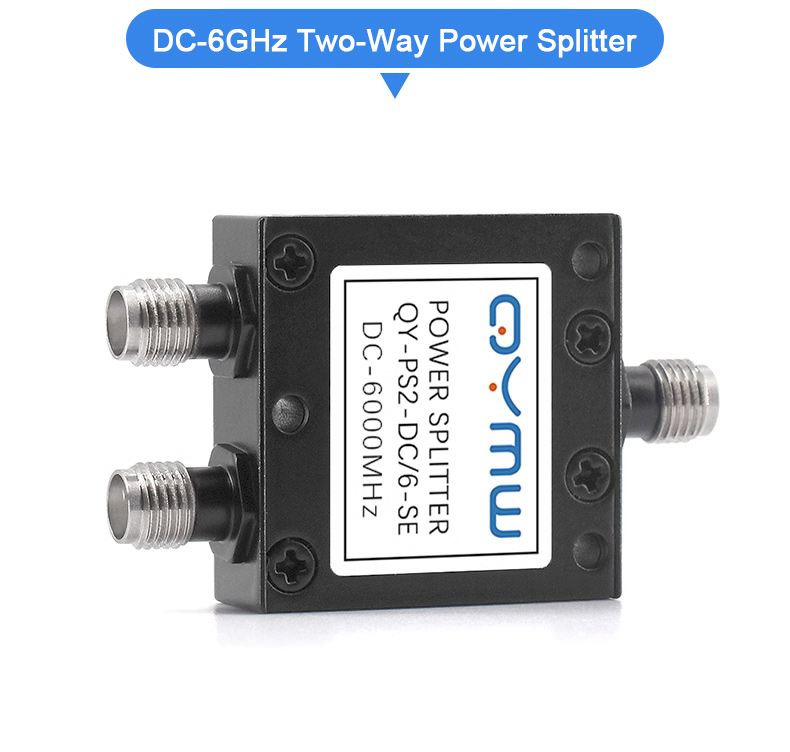

QY-PS2-DC/6-SE DC-6GHz 2-Way Resistive Power Splitter DC-6000MHz Resistive Power Divider w/ SMA Port
Features:
- RF resistive power splitter
- With SMA female connector
- Connectors made of stainless steel
- Durable to use
Specifications:
- Model: QY-PS2-DC/6-SE
- Frequency range: DC~6000MHz

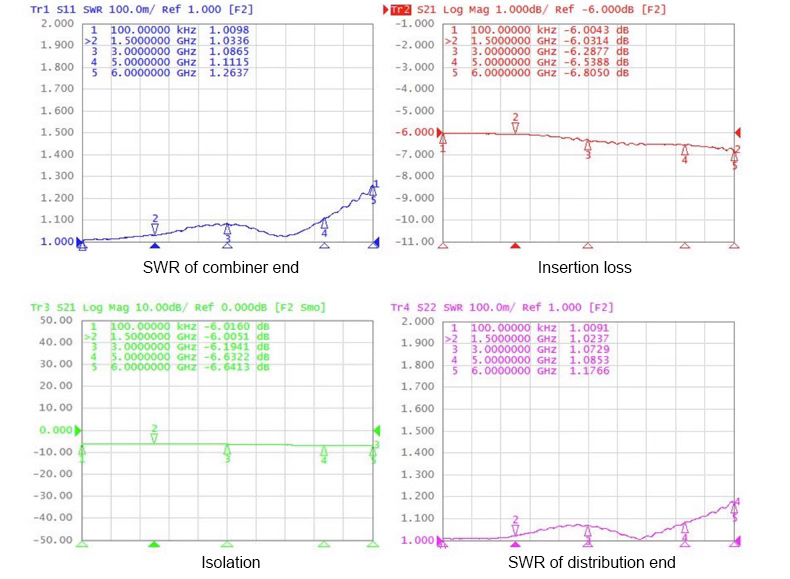

- Insertion loss: ≤7.2dB
- Input standing wave: Typ. 1.16/Max. 1.25
- Output standing wave: Typ. 1.12/Max. 1.25
- Isolation: Min. 5.6dB
- Amplitude balance: ≤ 0.3dB
- Phase balance: ±3°
- Impedance: 50 Ohms
- Port connector: SMA-Female
- Withstand power: 2W
- Operating temperature: -35°C to +125°C
- Surface treatment: Black paint

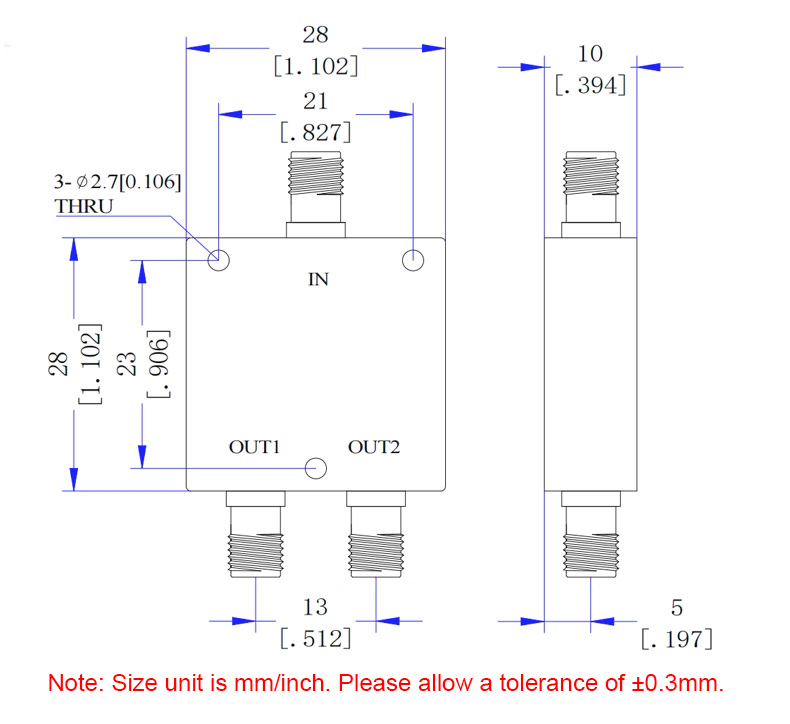

- Dimensions: 28 x 28 x 10mm/1.1 x 1.1 x 0.4"
- Weight: 21g/0.05lb
Package Included:
- 1 x Resistive Power Splitter
