0.5-6G 500-6000MHz 4-Way RF Power Splitter 2.4G/5.8G/WIFI6 RF Power Combiner w/ Aluminum Alloy Shell

Description:

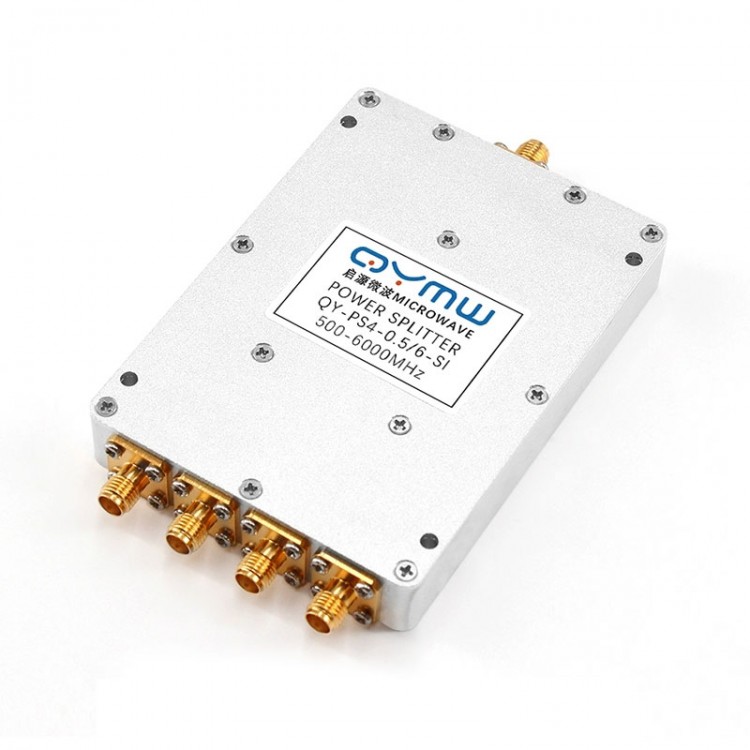

This is a 0.5~6GHz 4-way SMA RF power divider. Its shell adopts aluminum alloy sandblasting oxidation process, which has strong oxidation resistance.

Specifications:
- Frequency range: 500~6000MHz
- Insertion Loss: ≤ 1dB (6.0dB without theoretical loss)
- Input standing wave: Typ. 1.3/Max. 1.45
- Output standing wave: Typ. 1.25/Max. 1.3
- Isolation: Typ. 20dB/Min. 19dB
- Amplitude balance: ±0.3dB
- Phase balance: ±5°
- Impedance: 50 Ohms
- Port connector: SMA-Female
- Withstand power: 35W as a splitter; 2W as a combiner
- Operating temperature: -40°C to +125°C
- Surface treatment: sandblasted guide
- Dimensions: 91.2 x 66 x 14.7mm/3.6 x 2.6 x 0.6"
- Weight: 85g/0.2lb

Package Included:
- 1 x RF Power Splitter
