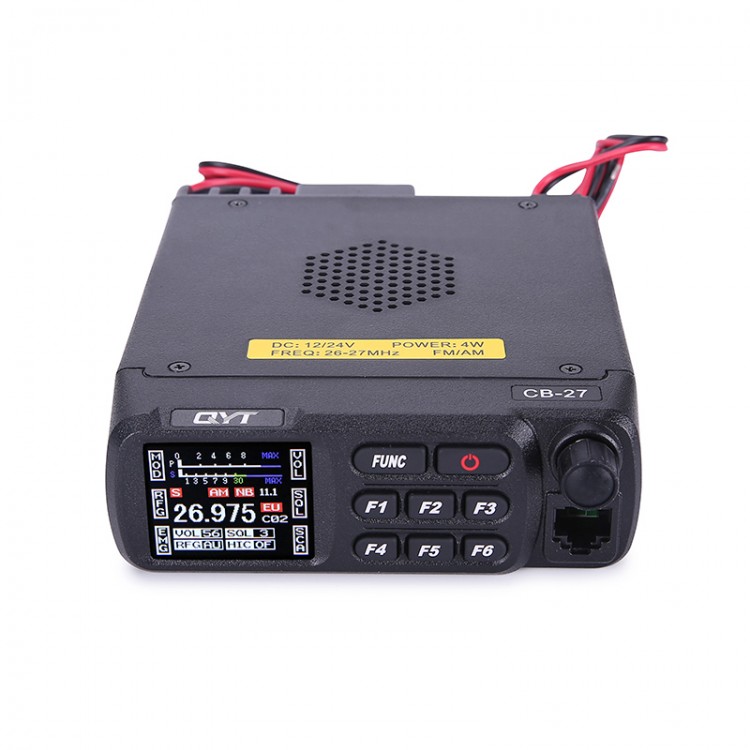

QYT CB-27 26-27MHz AM FM Transceiver 4W CB Mobile Radio Vehicle Transceiver with Color Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$96.92
  • Price in reward points: 969 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $94.98 $93.04 $90.14 $86.26 Contact US
Quantity:

QYT CB-27 26-27MHz AM FM Transceiver 4W CB Mobile Radio Vehicle Transceiver with Color Screen

Specifications:
General Specifications:
- Modulation Mode: AM/FM
- Frequency Range: 26.965-27.405MHz
- Frequency Tolerance: ±5.0ppm
- Input Voltage: 12/24V
- Dimensions: 122 x 158 x 44mm/4.8 x 6.2 x 1.7"
- Weight: 660g/1.5lb
- Frequency Control: PLL Synthesizer
- Operating Temperature Range: -20℃ to +55℃
- Current Drain:  Transmit: 2A MAX; Receive: Squelched 0.3A; VOL Max: 0.8A
- Antenna Connector: UHF, SO-239

Receive (ETSI EN 300 086 Standardized.Test):
- Sensitivity: Less than 1uV for 10dB (S+N)/N
- Image Rejection: 70dB
- Adjacent Channel Rejection: 60dB
- IF Frequencies: 1st 10.695MHz; 2nd 455KHz
- Automatic Gain Control (AGC): Less than 10dB change in audio; Output for inputs from 10 to 50000uV
- Squelch: Less than 1uV
- Audio Output Power: 3 Watt into 8 ohms
- Frequency Response: 300-3000Hz

Transmit (ETSI EN 300 086 Standardized.Test):
- Power Output: 4Watt AM/ FM
- Transmission Interference: Inferior to 4nW (-54dBm)
- Frequency Response: 300-3000Hz
- Modulated signal distortion: Inferior to 5%
- Output Impedance: 50 ohms

Package Included:
- 1 x Radio station
- 1 x Microphone
- 1 x DC power cable
- 1 x Mobile mounting bracket
- 1 x Bag of mounting hardware
- 1 x User manual
