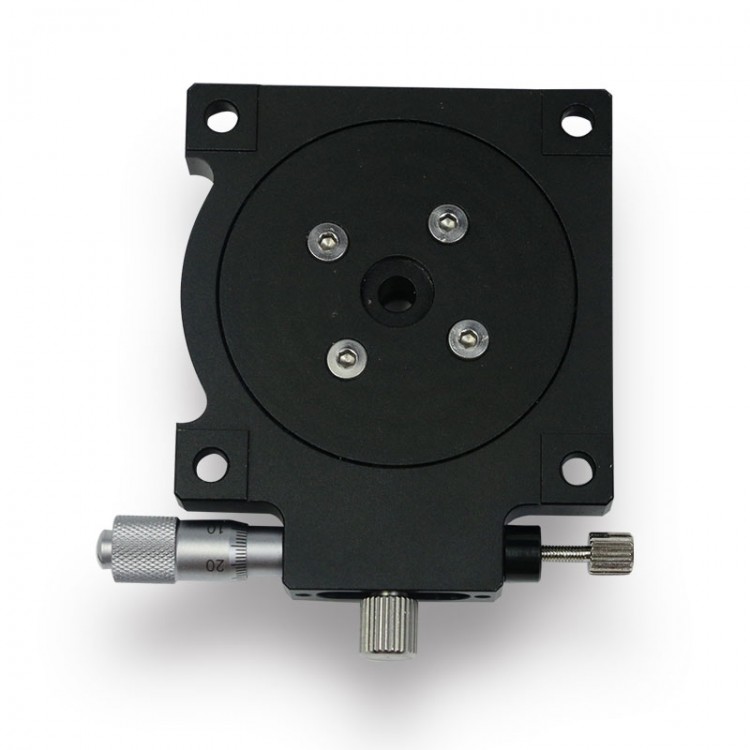

R Axis 60*60mm Manual Displacement Platform Micrometer Rotating Sliding Table RS60-L
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
- Rotating platform enables fine adjustment of the angle of the platform to the approximate location, using the thickness adjusting switch screws, can be fine-tuned using a micrometer
Parameters:
- Model: RS60-L
- Adjustment: Coarse 360° rotation, fine adjustment ±5°
- Material: Aluminum Alloy (Surface black anodizing)

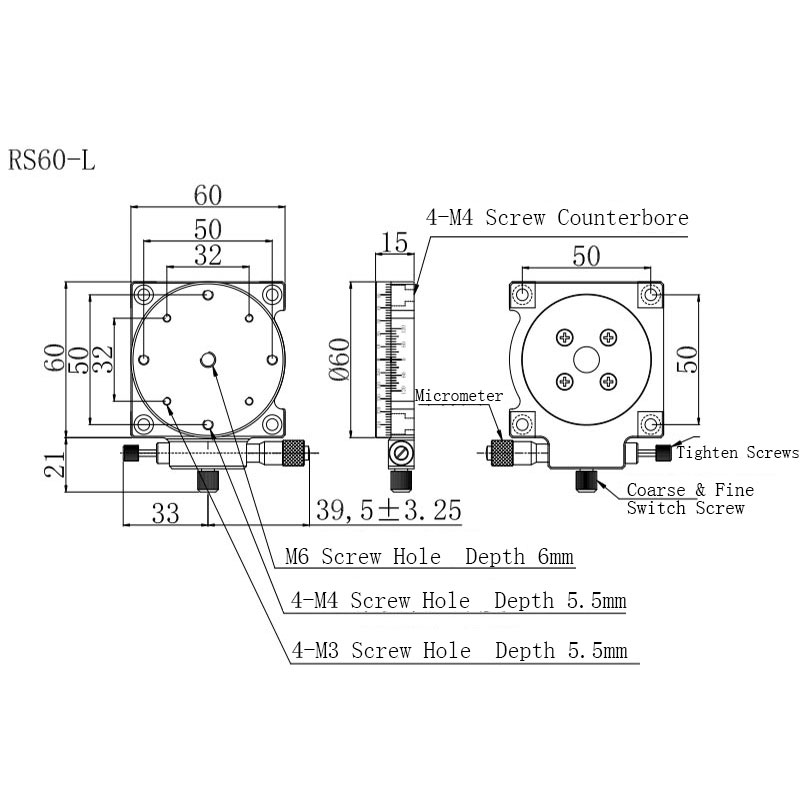

- Dimension: 60 x 60 mm
- Moving Rail: running-in installation
- Drive Mode: micrometer
- Minimum Scale of Vernier: 0.1°
- Minimum Scale of Micrometer: 0.015°
- Load: 29.4N (5kgf)
- Accuracy: 10μm
- Surface Run-out: 20μm
- Parallelism: 30μm
- Weight: 0.22kg
Package Included:
- 1 x Manual Displacement Platform
