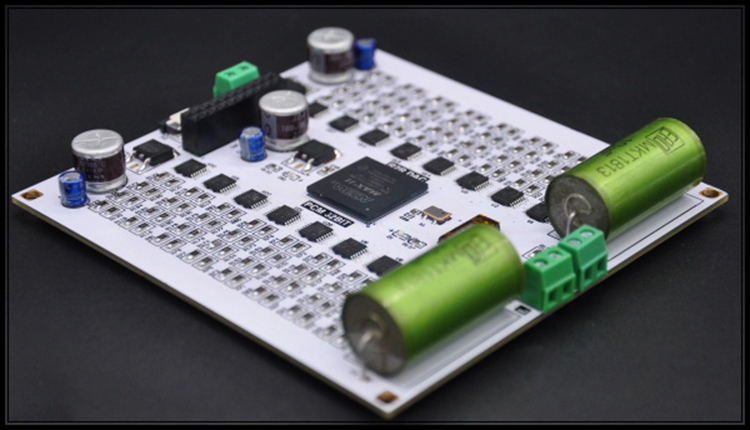

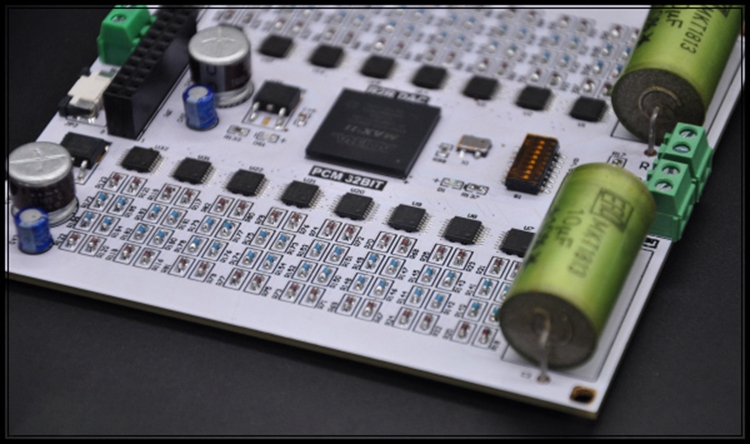

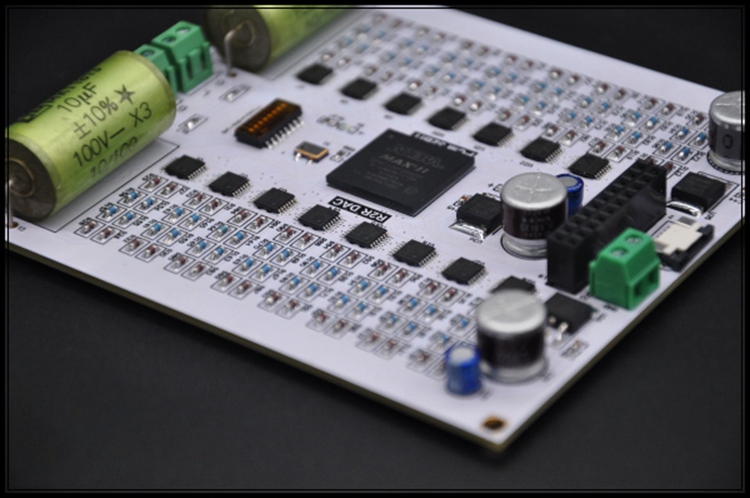

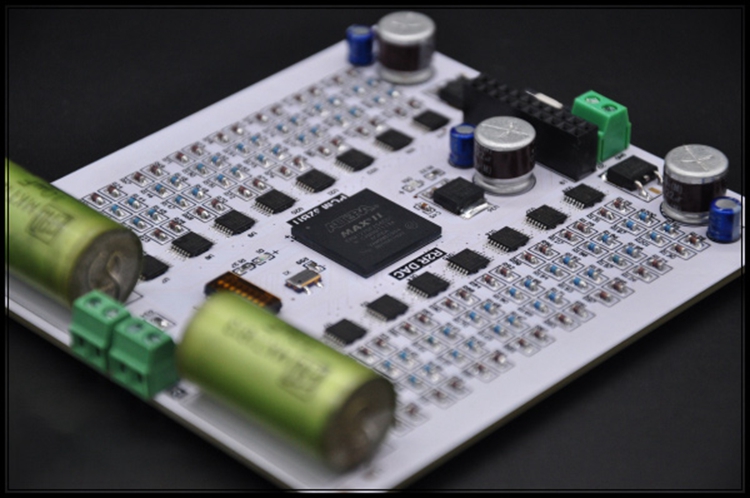

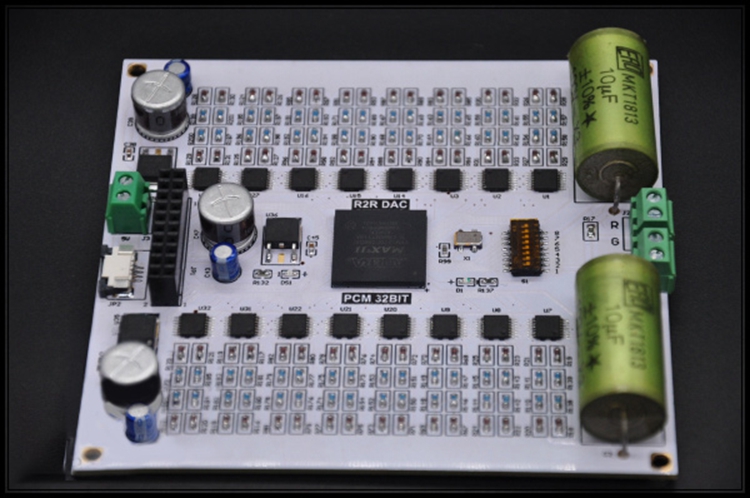

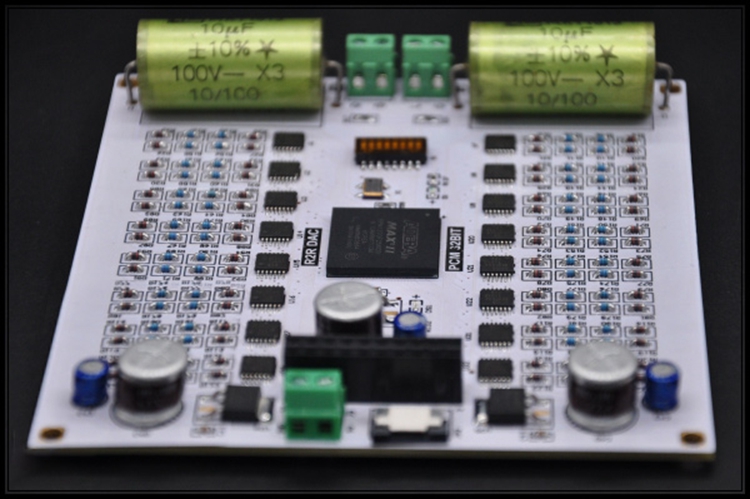

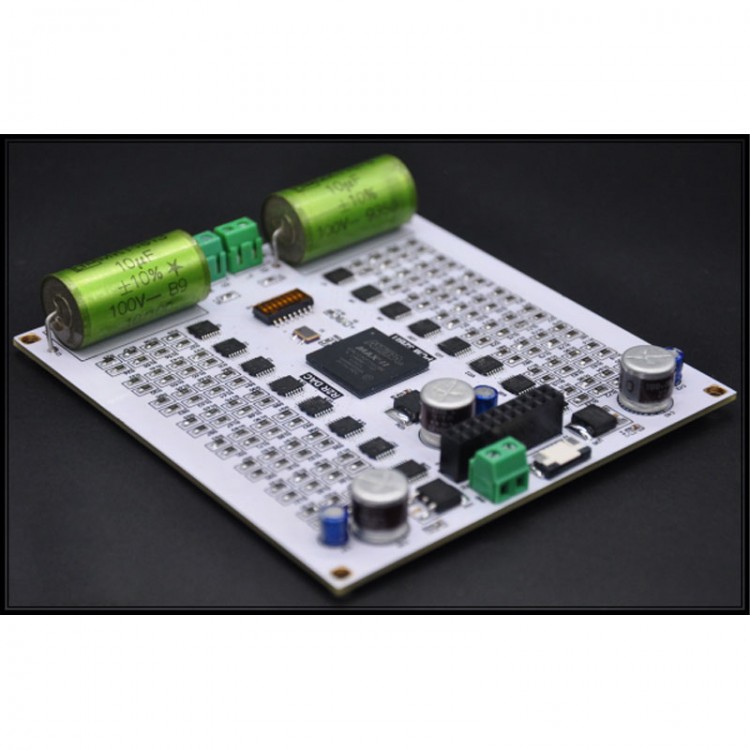

R2R PCM 32Bits Fully Discrete Decoder Board DAC Module Stereo Display CD Coaxial with MELF Resistor

R2R PCM 32Bits Fully Discrete Decoder Board DAC Module Stereo Display CD Coaxial with MELF Resistor

Description:
- This module is a complete direct decoding PCM. It can use for FOOBAR and other software to play PCM format audio files in combination with Italian interface for Amanero USB.
- Standard IIS data interface is reserved, and it can also be connected with other USB interfaces for PCM32bit decoding.

Features:
- External dimension: 102 x 96 x 18mm
- For Amanero USB interface standard input and output interface can realize seamless docking.
- Output interface, left and right channels are output independently, and each sound is output after the electrodeless capacitance (ERO MKT yellow sprite axial copper foot fever capacitance)
- Support single-ended or balanced output: single-ended or balanced output mode can be set.
- Design of 32-bit decoding circuit
PCM format: 32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k, 352.8k, 384k
PCM supports 32-bit, 24-bit and 16-bit audio data formats.
- 0.1% high-precision low temperature drift chip resistor is used.
- Independent power supply: the left channel, right channel and system CPU are powered independently in their respective zones.
- Power supply: low ripple LDO and ELNA special audio capacitor are used to form the filter circuit.
- The system adopts 5V power supply, multi-layer board design and strong anti-interference ability.
- It uses special FPGA to realize: software filter, decoding and other algorithms to restore the true original sound.
- With display function: OLED display module, which can display and play audio source audio format (PCM) in real time.
- There are standard fixed hole positions at four corners.

Package Included:
- 1 x Board
