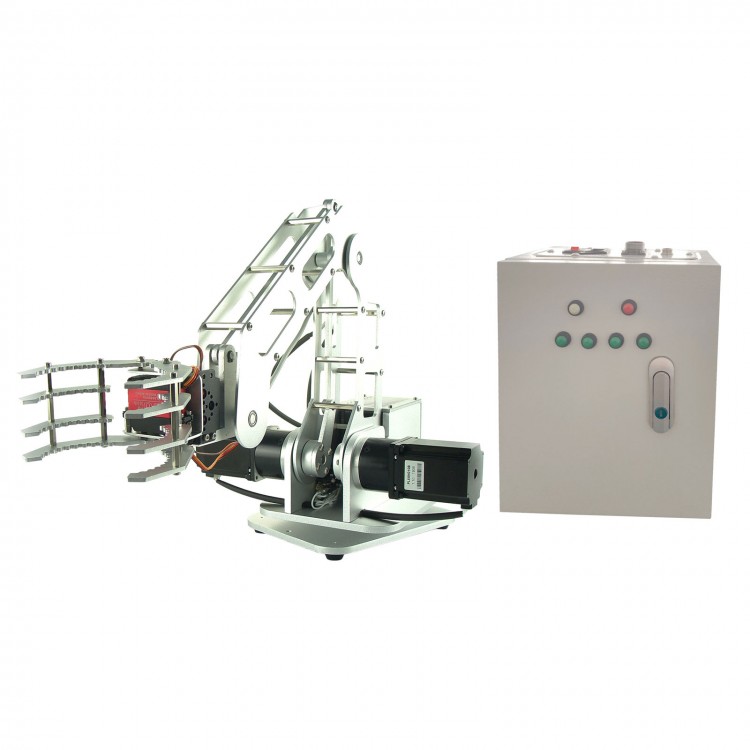

R580 4Axis Robotic Arm Industrial Robot Arm 2.5kg 57 Gear Motor APP for Android (Electric Claw)

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,261.70
  • Price in reward points: 12617 Reward Points: 126
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,236.47 $1,211.23 $1,173.38 $1,122.91 Contact US
Quantity:

R580 4Axis Robotic Arm Industrial Robot Arm 2.5kg 57 Gear Motor APP for Android (Electric Claw)

Features:

- This is 4-Axis Robotic Arm Electric Claw Version
- Support WiFi control: Control the arm via mobile phone APP. After connecting to WiFi, open MC.EbotB
- App only supports for Android mobile phones
- 3pcs 57 gear motors: 1:10 ratio; accuracy 0.3mm
- 6061 aluminum alloy frame with oxidation treatment and premium bearings
- Super long arm 580mm
- Max. Load capacity up to 2.5kg
- Fast to edit programs
- Easy operation

Specifications:
- Number of Axis: 4-Axis
- Gear Motors: 57 Gear Motor
- Deceleration Ratio: 1:10
- Backspace: ≤15 arc minute
- Load Capacity: 0.8-2.5kg
- Maximum Extension Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communications Interface: WiFi
- Power Supply Voltage: 100-240V, 50/60HZ
- Power Supply Input: 24V/20A DC
- Power: 500W Max
- Working Temperature: -10℃ to 60℃

Axes’ Parameters:
- Axis Motion Parameter: 0° to 85, Max 320° /s (@250g)
- Base Motion Range: -10° to + 95°, Max 320°/s (@250g)
- Arm Motion Range: -90° to + 90°, Max 480°/s (@250g)
- Axis Rotation Range: -90° to + 90°, Max 480°/s (@250g)

Physical Characteristics:
- Base Size: 220 x 168mm
- Material: Aluminum Alloy
- Controller: For Android Mobile Phones or Tablet PC
- Fixing Way: Base Fixing Holes

APP Program:
- Software: APK
- I/O Expansion Ports:
  4-Way I/O Output, 2-Way MOS Drive, 2-Way Relay Nodes
  4-Way I/O Input: to trigger four groups of stored actions
  2-Way Servo Port: to control 5V small analog motor
  To store four groups of actions, of each group there are up to 254 nodes

End Effector:

- Type: Claw
- Drive Mode: Electric
- Claw Sucker Diameter: 20mm
- Claw Pressure: -35Kpa

Package Included:
- 1 x 4-Axis Robot Arm Electric Claw Version
- 1 x Control Box
