Radiolink SE100 M8N GPS Module of High Accuracy for GLONASS/BeiDou APM Pixhawk Flight Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$38.80
  • Price in reward points: 388 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.02 $37.25 $36.08 $34.53 Contact US
Quantity:

Radiolink SE100 M8N GPS Module of High Accuracy for GLONASS/BeiDou APM Pixhawk Flight Controller

Features:

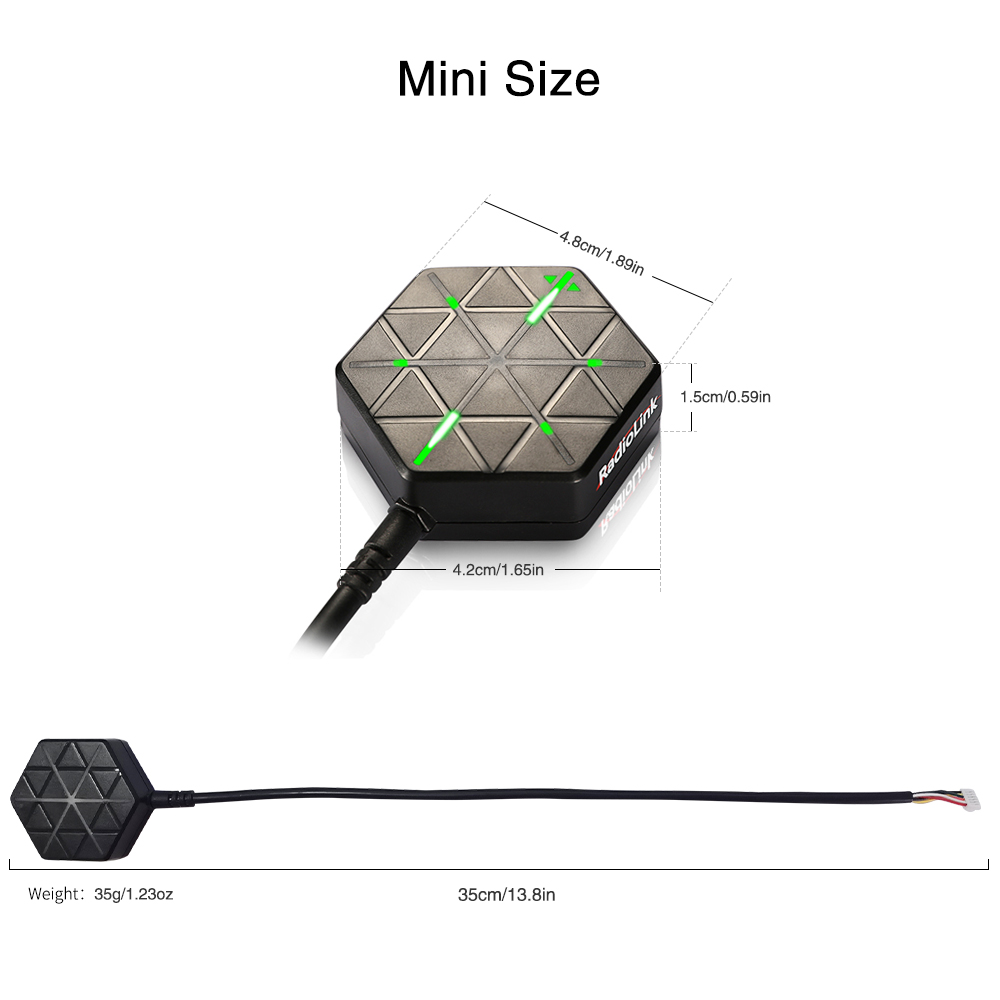

- Mini Size: This mini GPS module is for Radiolink Pixhawk Flight Controller. It is perfect for you racing drone and quadcopter.
- Excellent Stability: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter. Double Filter: SAWF (Surface acoustic wave filter) for Murata, independent dual filtering technology, stronger anti-interference ability.
- Top Configuration: Design with UBX-M8030 (M8) for U-box, 72-channel, it is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 for Honeywell.

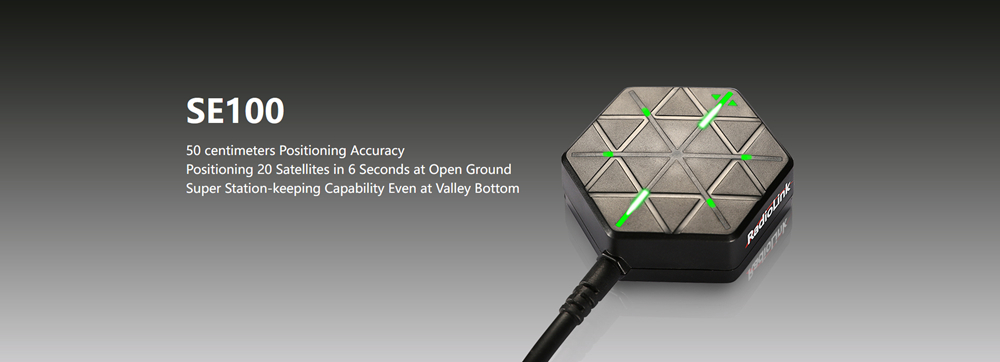

- Accurate and Quick to Position: 50cm/19.7" precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F and BeiDou B1.
- High-performance: Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.

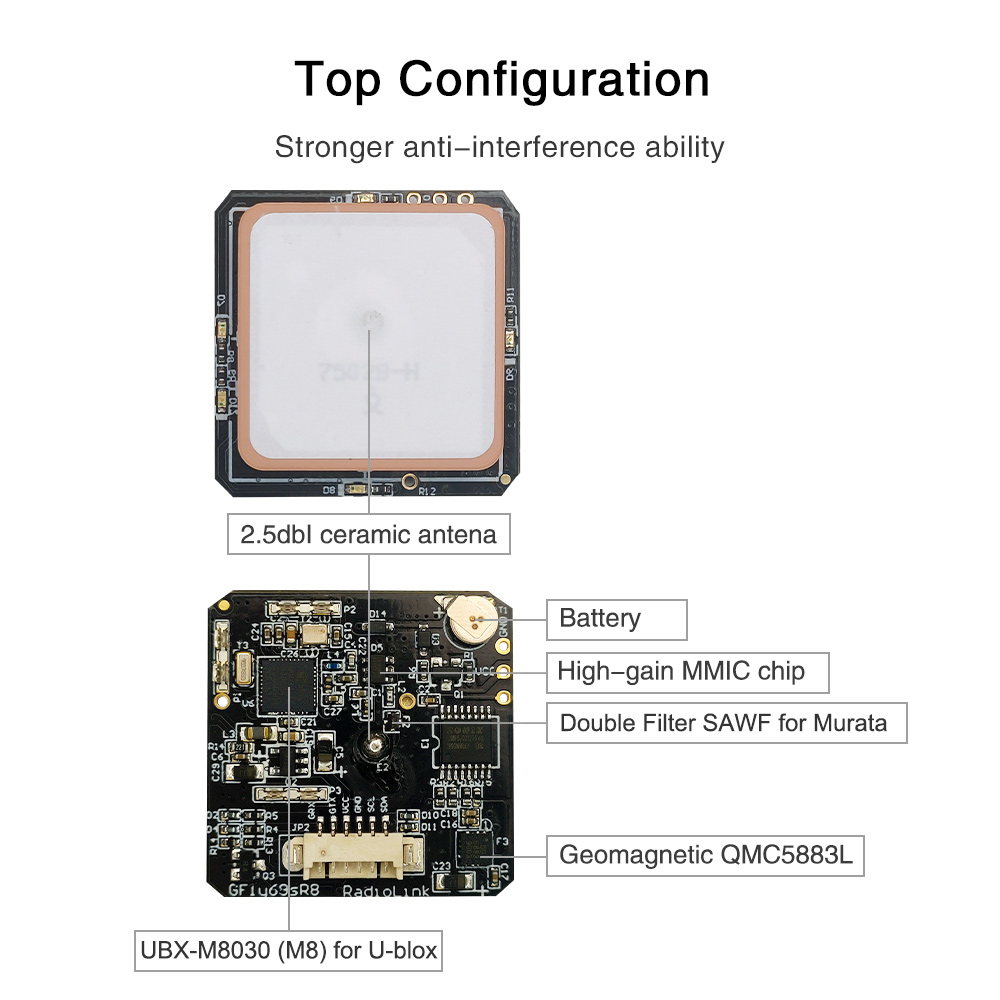

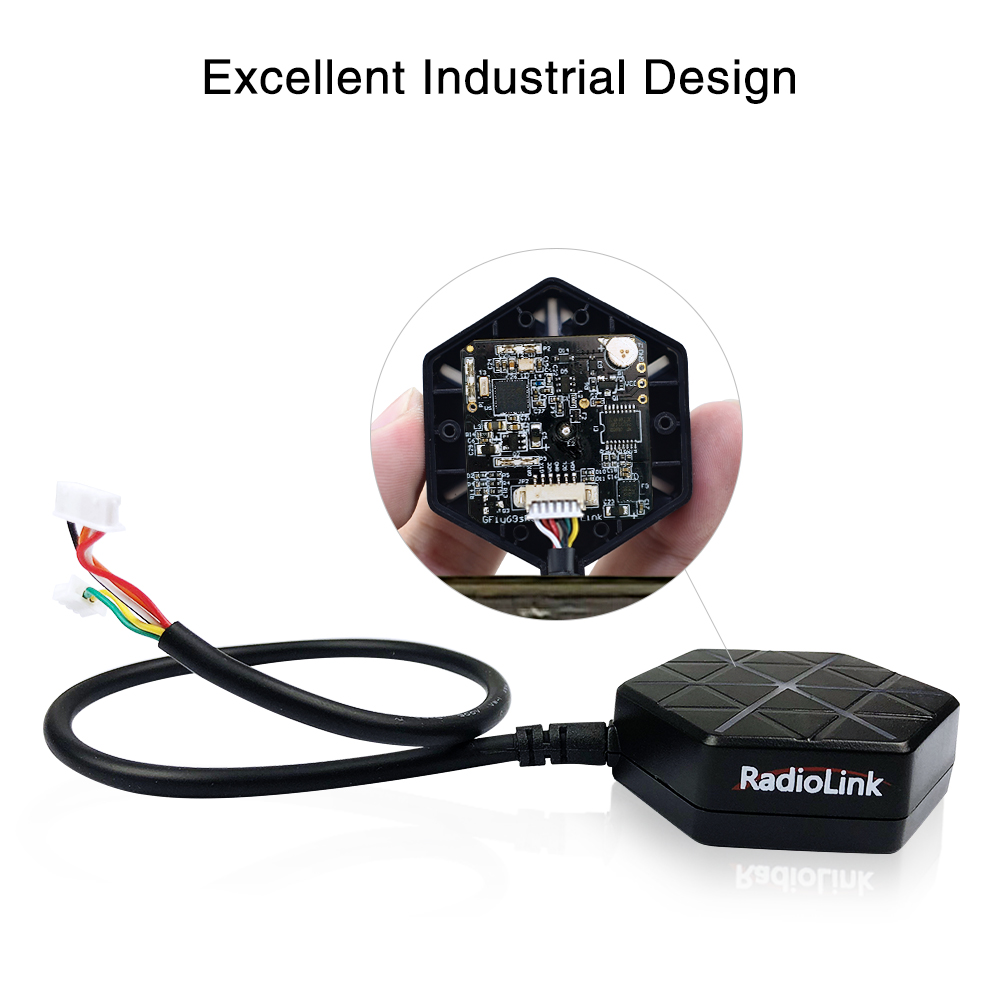

Top Configuration:
- GPS decoder chip: Radiolink M8N GPS, with UBX-M8030 (M8) for U-blox, 72-channel, MMIC BGA715L7 for Infineon, is much better than single GNSS 7N
- Geomagnetic: HMC5983 for Honeywell
- Antenna: 2.5dbI high gain and selectivity ceramic antenna
- Power amplify IC: MMIC BGA715L7 for Infineon
- Double Filter: SAWF (Surface acoustic wave filter) for Murata

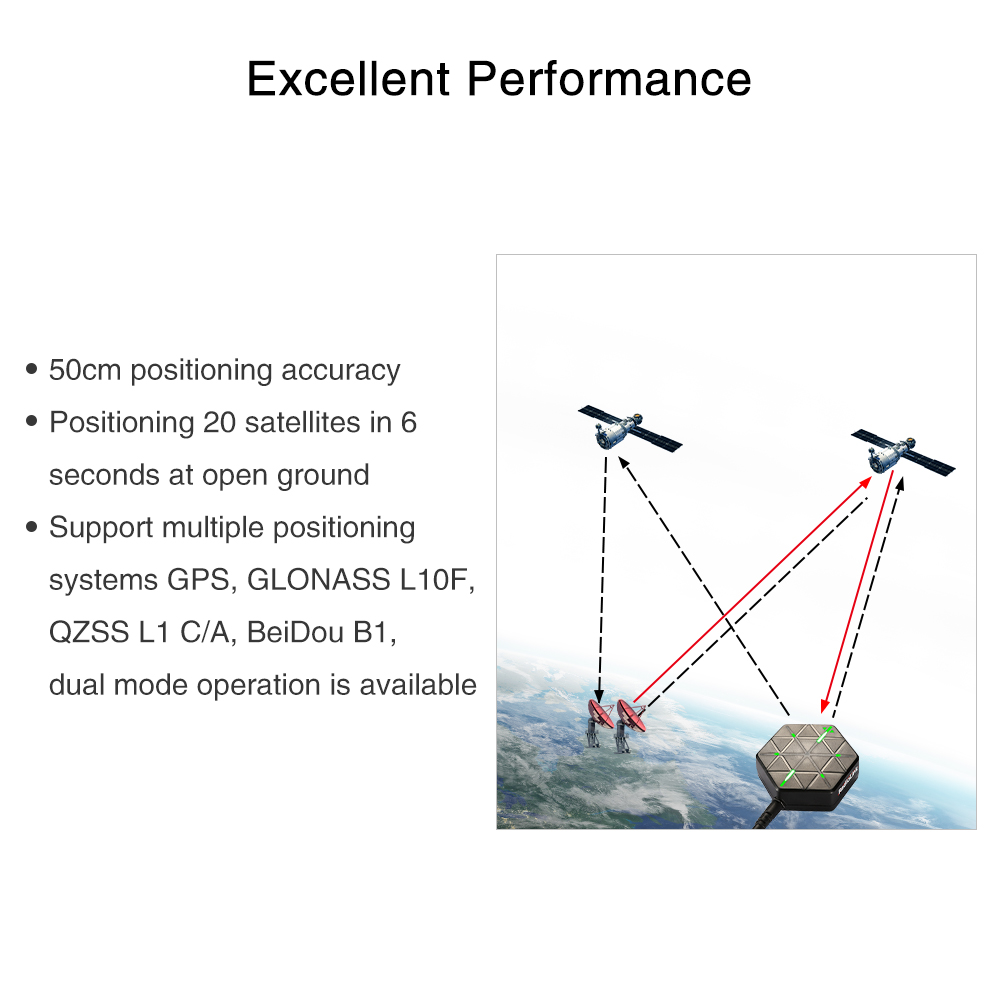

Excellent Performance:

- 50cm/19.7" position accuracy.
- Positioning 20 satellites in 6 seconds as open ground.
- Valley station-keeping ability.
- Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F, Beidou B1, SBASL1 C/A:WAAS, EGNOS and MSAS.

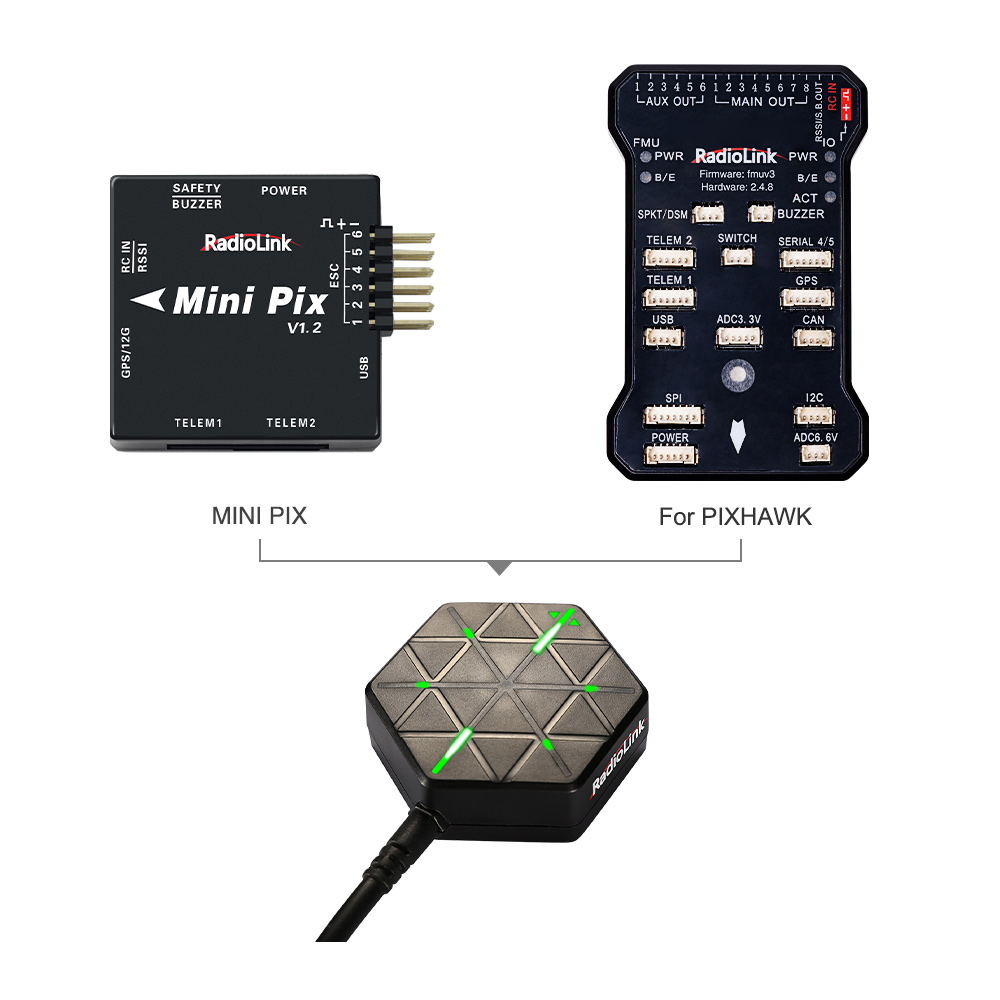

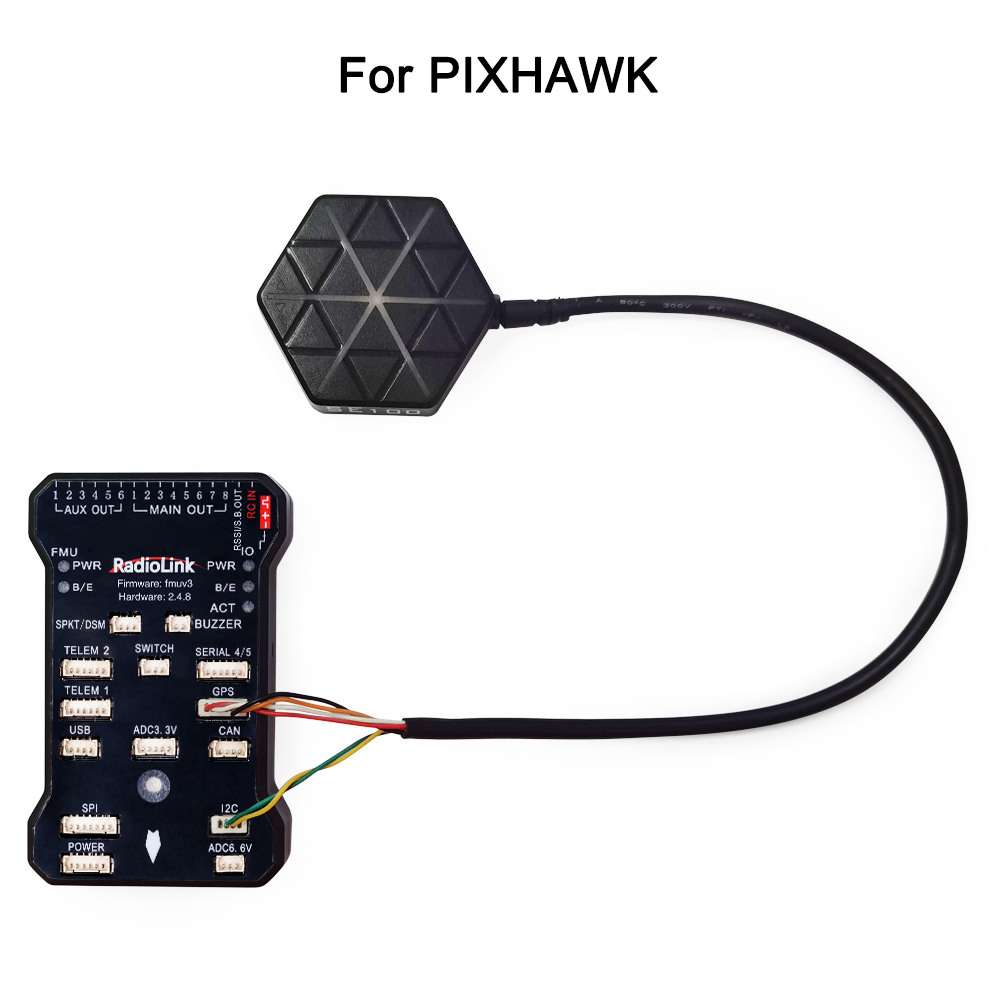

Assembly Selection for PIXHAWK:

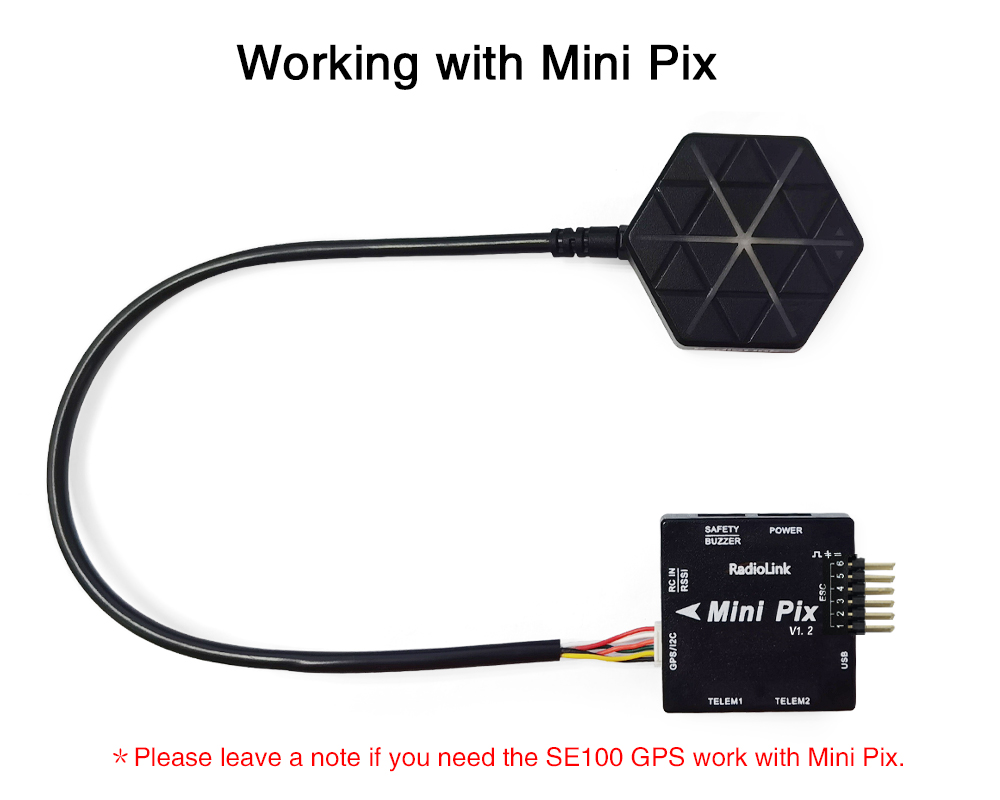

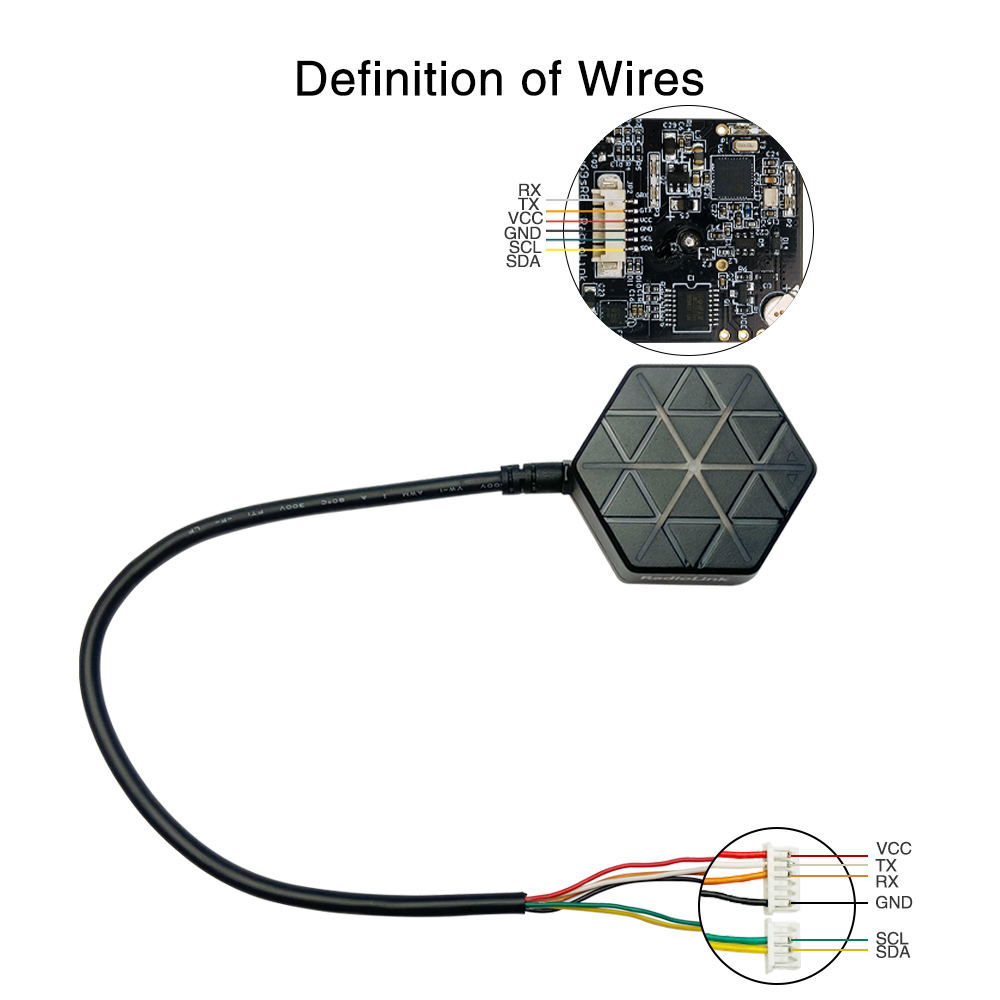

The connection cable interface of the Radiolink M8N SE100 is the same as the external socket for PIXHAWK. It is a 6P MX interface. Users who want to use it on the Radiolink Mini PIX need to purchase a new socket extension for connection.

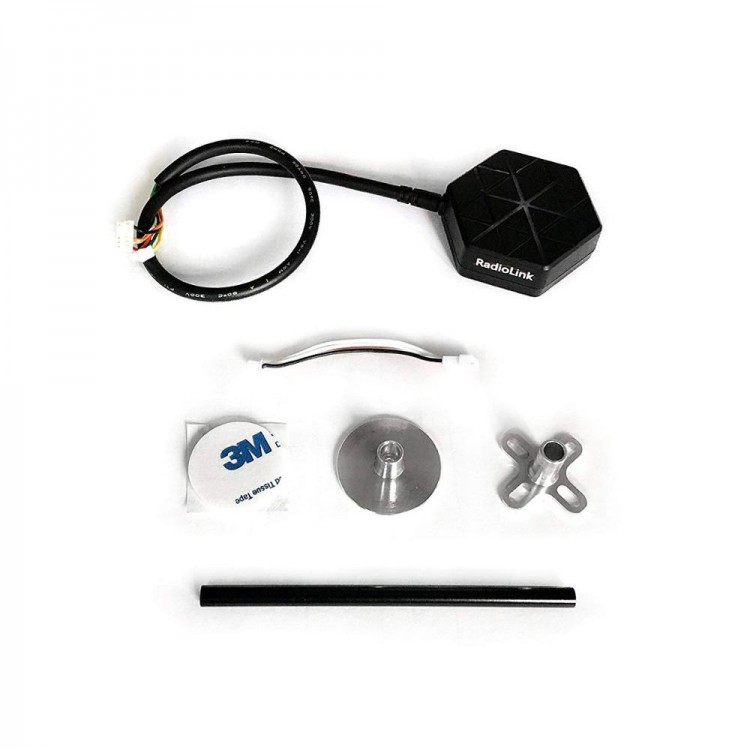

Package Included:
- 1 x GPS module
- 1 x Set of GPS bracket
- 1 x Adapter cable
- 1 x Double-sided tape
