Raspberry Pi X832 V1.2 3.5inch SATA NAS Storage Expansion Board for Raspberry Pi 4B

Raspberry Pi X832 V1.2 3.5inch SATA NAS Storage Expansion Board for Raspberry Pi 4B

Description:

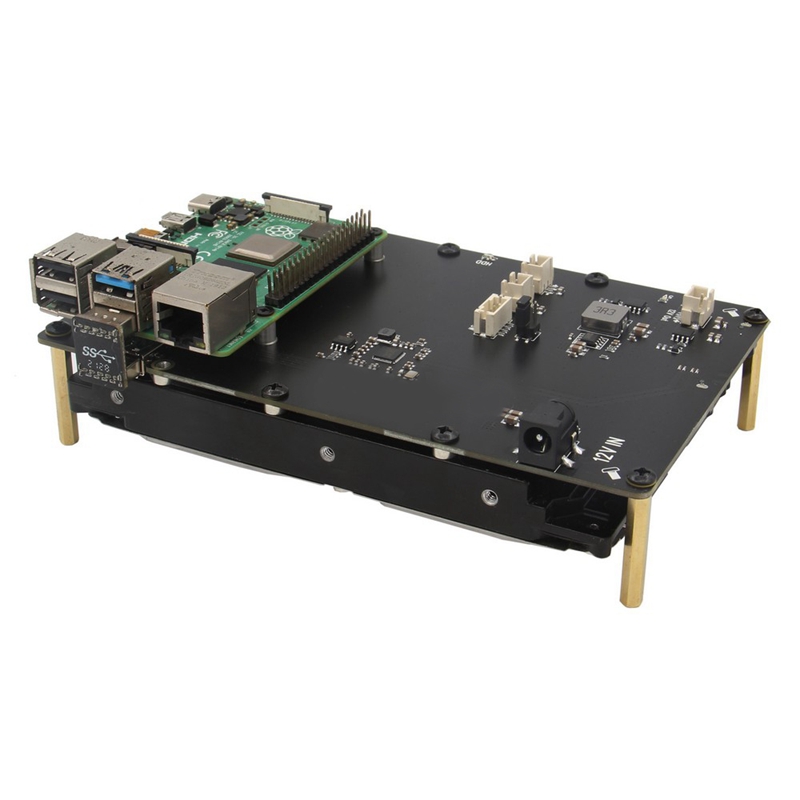

- The X832 3.5-inch SATA HDD expansion board provides a simple and fast way to create a larger storage solution for Raspberry Pi 4B. Its elegant and compact design allows easy connection of a 3.5-inch HDD to Raspberry Pi. The USB 3.0 port provides a high-speed data transfer rate of up to 5Gbps, which can transfer a large amount of data in a few seconds. Built in LED indicators indicate read and write status - no longer guessing.
- The X832 is the perfect storage solution for home media centers and building network attached storage (NAS) for storing and transferring your videos, music, and digital photos. The X832 also supports booting the operating system from the hard disk to open applications, provide web services, and copy files more quickly.
- More details: wiki.geekworm.com/X832

Power supply requirement:
- Power: 12VDC +/-5%, ≥3A
- Port and connector:
 DC socket - 5.5 x 2.5mm
 USB socket - USB3.0 A type
 Power connector - XH2.54 2pin
 SATA socket - 7 +15P female head

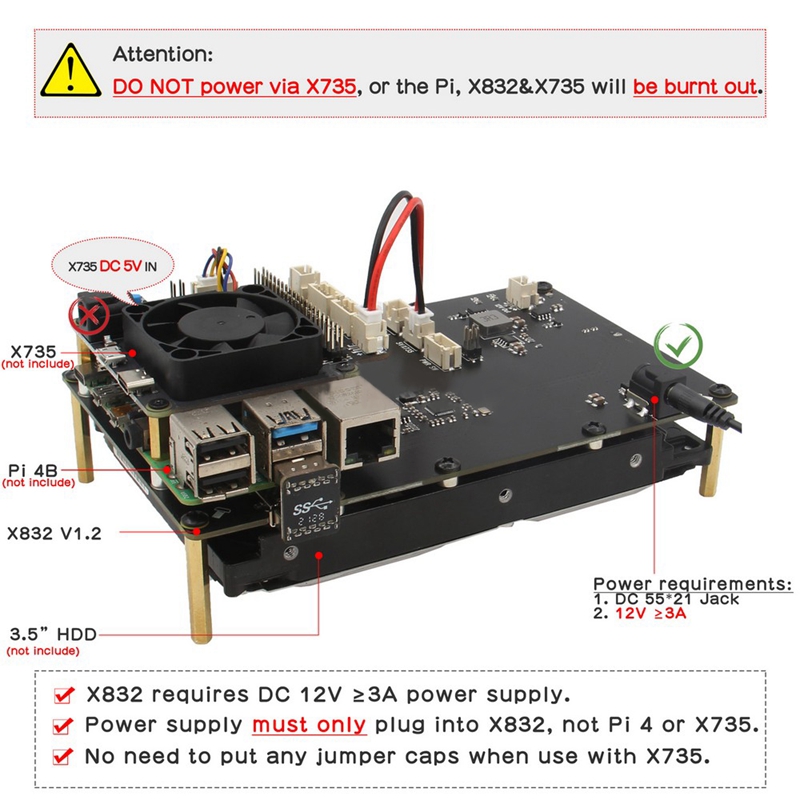

Note:
- It must use with DC 12V ≥ 3A power adapter; Be sure not to use a power adapter with other voltage values.
- Whether used with X735 or not, the DC 12V power supply must be connected to the X832 DC 12V IN port instead of X735 or Raspberry Pi, otherwise the entire kit may be burned.
- Do not power the Raspberry Pi motherboard separately.

Features:
- The ideal storage solution of Raspberry Pi - 3.5 "SATA HDD expansion board
- Supports up to 14TB of 3.5-inch SATA hard drives (HDD)
- Allows booting the operating system from HDD/SSD for faster application opening, network services, and file copying
- Only a single power supply is needed to power Raspberry Pi 4 through XH2.54
- Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
- USB3.1 Gen1 5Gb/s connection provides plug and play function on Raspberry Pi 4
- Fast file transfer via PC or Mac via high-speed USB3.1 5Gb/s connection
- Red LED indicates power status, blue LED indicates drive status
- Blue LED indicates drive status
- Specially made USB3.1 jumper, connected to Raspberry Pi - no other cable required
- The onboard XH2.54 power connector can supply power to other devices
- The onboard PH2.0 connector allows the use of an external self-locking power switch
- Compatible with X735, providing intelligent power management and cooling functions
- Compatible with X710, providing wide input voltage (6-36V) and intelligent power management
- PCB size: 162.8mm x 101.6mm

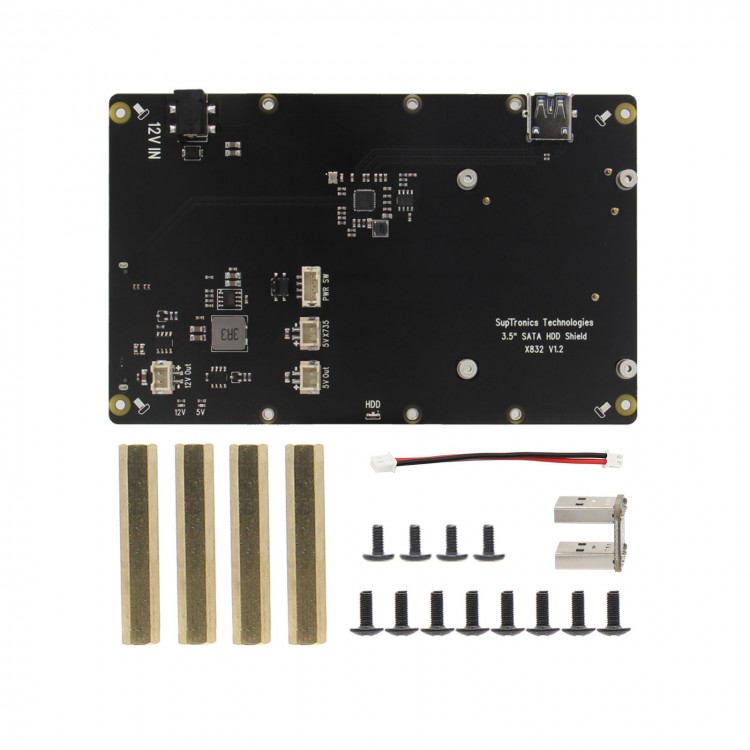

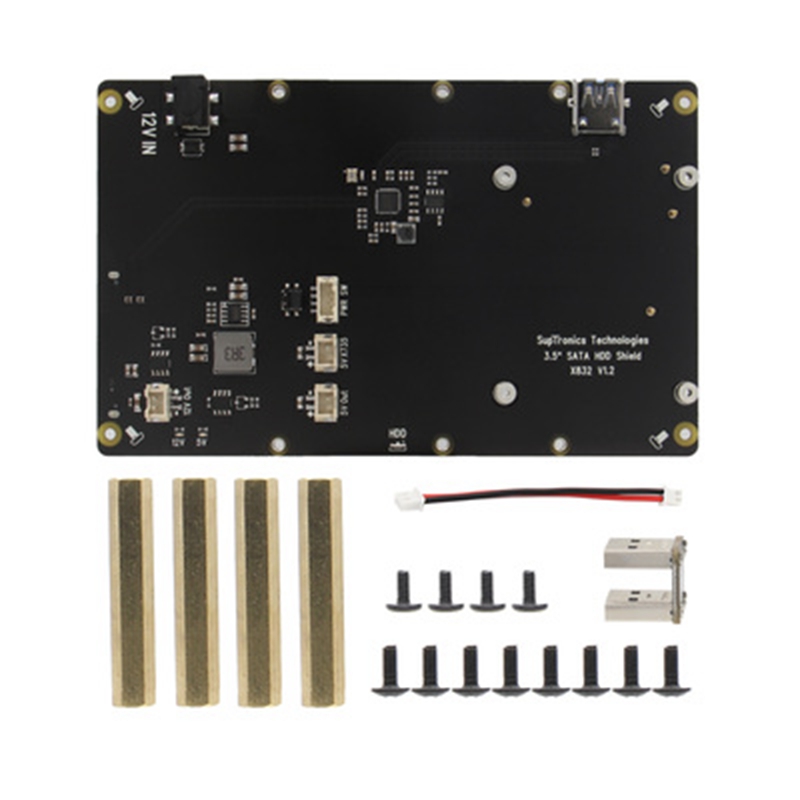

Package Included:
- 1 x X832 Expansion Board
- 1 x USB 3.0 Connector Bridge
- 1 x Screw pack
