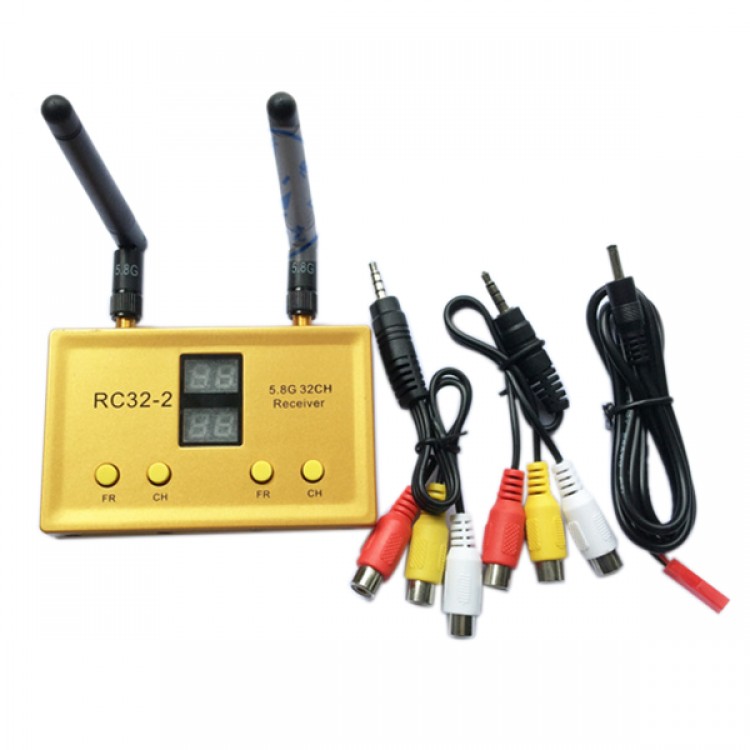

RC32-2 DC 12V 5.8G 32CH FPV Weirless Dual Channel AV Receiver Different Signals RX

RC32-2 DC 12V 5.8G 32CH FPV Weirless Dual Channel AV Receiver Different Signals RX

Specifications:
1. Receiving frequency: 5.6GHz-5.95GHz ISM 32 CH
2. Working voltage: 6.0V + + 24.0V (12V is good)
3. Supply current: <130 MA / DC 12V
4. Video output: 0.2Vp-P + /75 1V
5. Audio output: 0.5 ~  2.0Vp-P/10KOhm
6. TV format: PAL / NTSC / SECAM (AUTO)
7. Wireless reception sensitivity: <-90dBm (15dBuV)
8. Antenna: 5.8G 3dB
9. Antenna connector: SMA external screw internal needle
10. Weight: 115g
11. Dimensions (length x width x height): 97x61x15mm
12. Working temperature: -10 ~ + 85 degree C

CHSEL:

Features:
- 32 channel
-  built-in dual receiver 2 separate output, while receiving different signals
- Unique channel search function
- Large input voltage range, very low current consumption
- Digital display, high brightness, very intuitive working state
- Two 6 switch buttons: FR key to switch frequency, CH key to switch channel.
- With power failure memory function: replay the last frequency and channel
- Unique video and audio signal output

Introduction of pin:
1. Channel:
Put on the power, press the "CH" key to change the channel, "CH" digital display will change synchronously, the "CH" figures show a change in the periodicity is from 1----8.
2. Frequency:
Put on  the power, press the "FR" button to change the frequency, "FR" digital display will change synchronously, the "FR" digital display changes periodically from  A-B-E-F.
3. Press the button for 2 seconds, the system will enter the search state.
4. Power supply / Channel
5. short press button, select different channels, 8 - 1.
6. AV-2 AV-1: audio and video at the same time, can receive 2 different signals.
7. ANT:5.8GHZ antenna, the antenna is required to match the hole.

Package included:
- 1 x RC32-2 DC 12V 5.8G 32CH FPV Weirless Dual Channel AV Receiver
