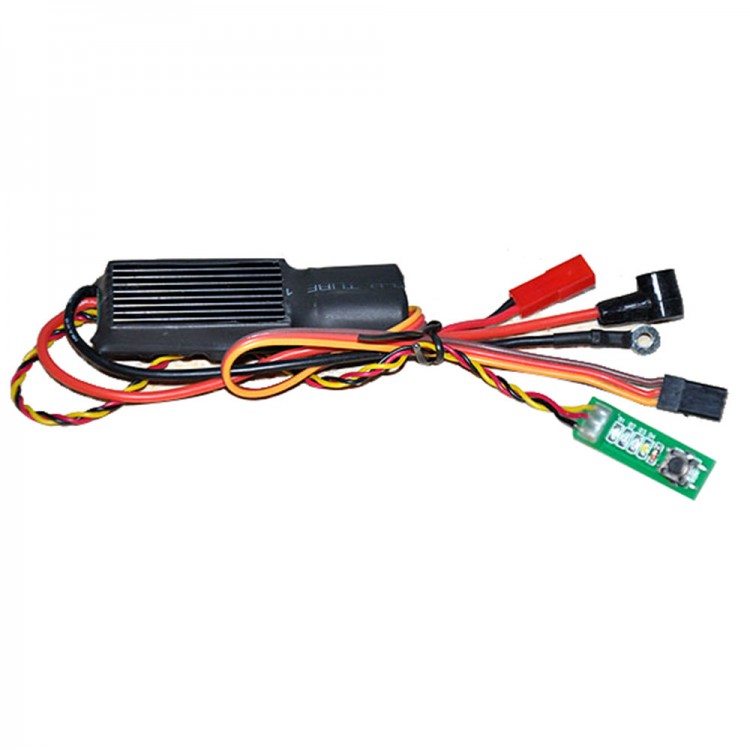

RCD3012 Smart 2 in 1 BEC Linear Voltage Regulator for RC Helicopter Fixed-wing Copters

Description:

- RCD3012 is a linear voltage regulator BEC system with built-in high efficient smart glow plug driver. The system provides stable power to receivers and servos, and it can programmable output voltage either 5.9V or 7.2V by user needs. It uses the smart method to replace the traditional glow engine igniter.



- The linear voltage regulator can output 5A mps current constantly, pulsed overload current can reach 20A mps. compared to switch mode regulator, the linear regulator has no ripple and no EMI interference to other devices such as receiver or GPS, it is especially suitable for big size models, Scale RC planes, 3D helicopters and UAV. The built-in glow plug driver not only can be triggered by manual but also can be triggered through transmitter remotely, the output cables connecting to receiver can be power supply and accept the control signals at same time.



Specifications:

- Glow Driver & Linear BEC 2 IN 1

- Programmable BEC output voltage: 5.9 V or 7.2 V

- Linear mode Regulator, Pulsed Current output 20Amps, Continuous Current output 5Amps

- Glow plug ignition can be manual control or remote control operated

- Checking glow plug damaged or not automatically

- Time out protection, short circuit, low voltage and overheat protection

- Fails afe trigger switch

- Low voltage alarm

- Weight: 34g
