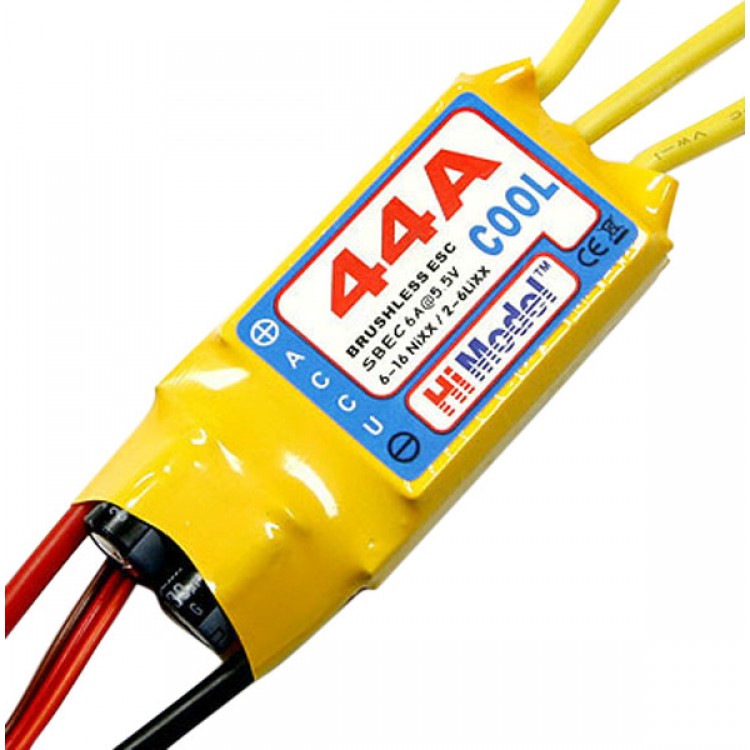

• HiModel COOL Series 2-6S 44A Brushless Speed Controller 44A/SBEC

HiModel COOL Series 2-6S 44A Brushless Speed Controller 44A/SBEC

Availability: Out Of Stock

  • Price:$35.25
  • Price in reward points: 353 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $34.55 $33.84 $32.78 $31.37 Contact US
Quantity:

HiModel COOL Series 2-6S 44A Brushless Speed Controller 44A/SBEC
Description
:
- HiModel COOL Series Brushless Speed Controller for airplane/helicopter etc.

Features:
- Super fine and smooth touch of speed controlling, first-rate accurate linearity and quick-respond speed of throttle.
- With High Performance CPU of 24MHZ, Separate voltage regulator IC for MCU (Micro Controller Unit), high capability of anti-interference to decrease the possibility out of control.
- Low-voltage cut-off protection of battery, blocked rotation protection and throttle signal lose protection, etc. All these functions can prolong the service life of ESC effectively.
- Good and safe performance of power-on. The motor won’t be started no matter which position the throttle stick is on when the battery is connected.
- Low torque "soft start," protecting gear box
- LED status indicator (LED keep shine under full throttle)
- Easy Installation, can change motor rotation direction by Prog-card
- Compatible for fixed wing airplane and helicopter; perfect governor mode for helicopter
- BEC circuit,SBEC output 6A
- With new generation MOSFET, lower internal resistance, stronger resistance to impulse current
- MOSFET in independent PCB, the thickness of copper plate reaches 800μm, the thickness of high current ESC copper plate reaches 1200μm). Super low impedance and strongest resistance to high current which could effectively reduce the temperature rise, improve the quality and make the ESC work at optimal efficiency
- It can be compatible with a programming card (optional component), which has a simple and visual surface so as to change the parameters conveniently at any time anywhere (reference to the manual for programming card).

Specfication:

HiModel COOL ESCs for Airplanes/Helicopters
Type
Continious Current(A)
Max Current(A)
Lipo Cell Number
BEC Mode
BEC Volt/Current
Weight
Dimension (LxWxH)mm
COOL 6A/LBEC
6A
7A
Linear Mode
5V/0.8A
4g
25*12*4
COOL 11A/LBEC
11A
13A
2- 3
Linear Mode
5V/2A
10G
25*17*3
COOL 13A/LBEC
13A
16A
2- 3
Linear Mode
5V/2A
12g
25*17*5
COOL 22A/SBEC
22A
25A
2- 4
Switch Mode
5.0V/4A
27g
32*24*11
COOL 33A/SBEC
33A
40A
2- 4
Switch Mode
5.0V/4A
29g
32*24*11
COOL 41A/SBEC
41A
50A
2- 4
Switch Mode
5.0V/4A
35g
32*24*11
COOL 44A/SBEC
44A
55A
2- 6
Switch Mode
5.5V/6A
55g
51*31*12
COOL 66A/SBEC
66A
80A
2- 6
Switch Mode
5.5V/6A
57g
51*31*12
COOL 88A/SBEC
88A
110A
2- 6
Switch Mode
5.5V/6A
63g
51*31*13
COOL 110A/SBEC
110A
150A
2- 6
Switch Mode
5.5V/6A
74g
51*31*13
COOL 155A/SBEC
155A
200A
2- 6
Switch Mode
5.5V/6A
79g
