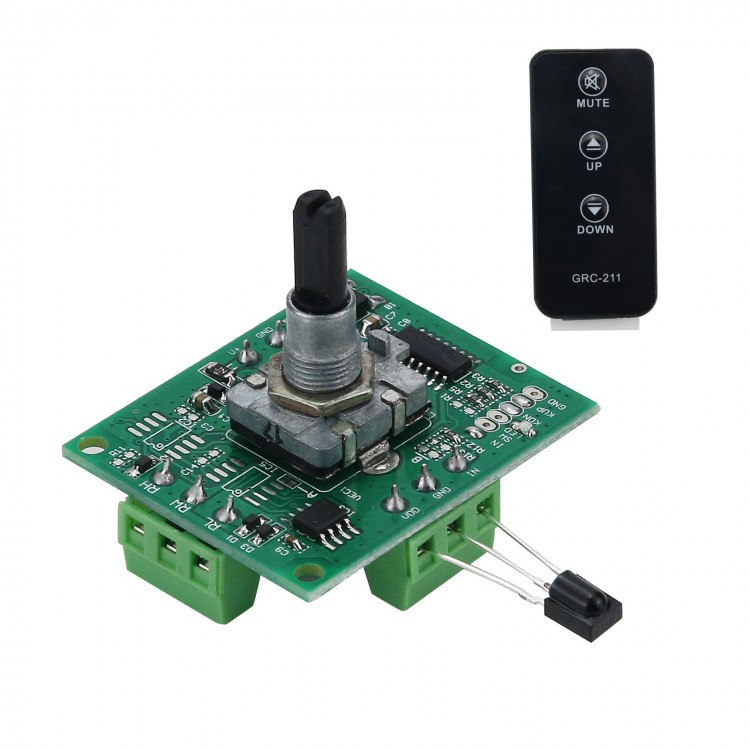

Remote Control Potentiometer Digital Potentiometer Module 10K Variable Resistance For Digital Tuner
Instructions For Use:
1) Use infrared remote control or manual control to change resistance
2) Wide voltage (DC 5V-12V) power supply, PCB board size: 3.9 x 4.2CM/1.5 x 1.7 Inch
3) 10K full-scale potentiometer, if you want other resistance values, please leave a message or contact customer service
4) The middle tap of the potentiometer slides between 0-10k, a total of 100 levels (typical impedance of the potentiometer sliding end is 40 ohms)
5) The RL and RH ports of digital potentiometer correspond to the low end and high end of the sliding rheostat respectively, allowing input voltage from -5V to +5V.
Applications:
It is widely used for digital tuner, programmable control amplifier, bridge adjustment circuit, digitally controlled adjustable DC power supply, etc.
Package Included:
- 1 x Digital Potentiometer Module
- 1 x Remote Controller
