RF Signal Generator RF Frequency Generator Frequency Source w/ OLED Display 137.5MHZ-4.4GHZ ADF4350
Features:
- Operating Frequency Range: ADF4350V4.0(137.5MHZ-4.4GHZ)
- Frequency Step: 10KHz
- Max. Output Level Dynamic: 60DB
- Local Oscillator Stability: 0.28PPM
- Power Supply: 9-15V
- Weight: Less than 200g
- OLED display, button operation interface and USB interface
- With PC software, providing communication protocols. USB-serial chip PL2303SA, baud rate 115200BPS

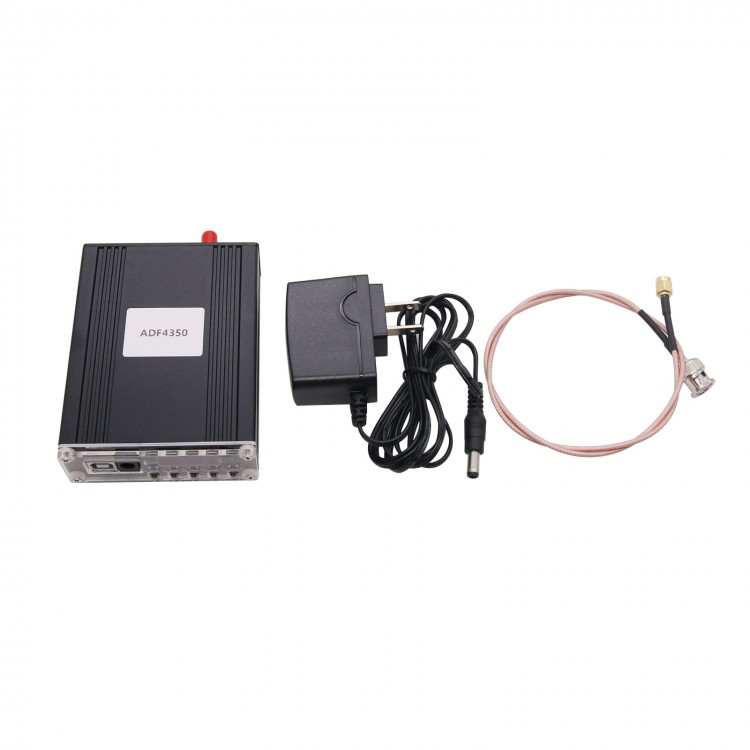

Package Included:
- 1 x RF Signal Generator
- 1 x 12V Power Adapter
- 1 x SMA-Q9 Cable
Note: Please contact us for PC software after purchasing. Thank you!
Operation Introduction:

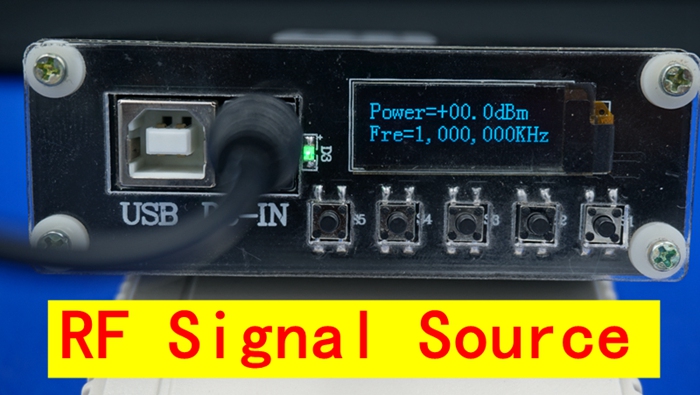

1. Display Interface When Powered
- S1: Right shift cursor
- S2: Cursor value reduces
- S3: OK (After the data is changed, you need to press the confirmation button)
- S4: Cursor value increases
- S5: Left shift cursor

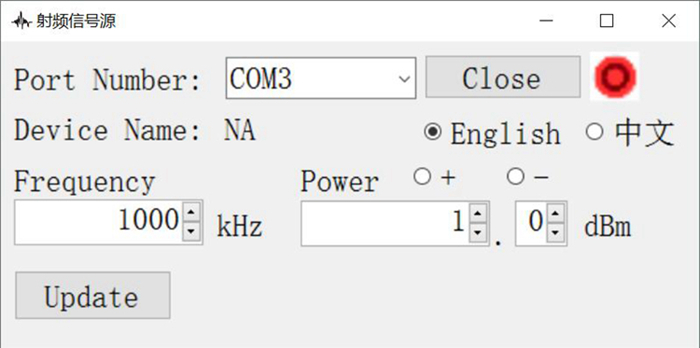

2. PC Software:

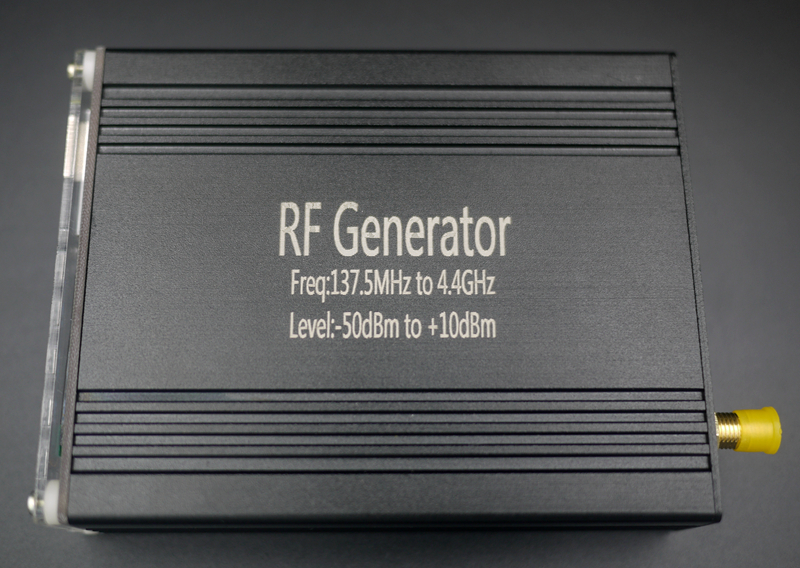

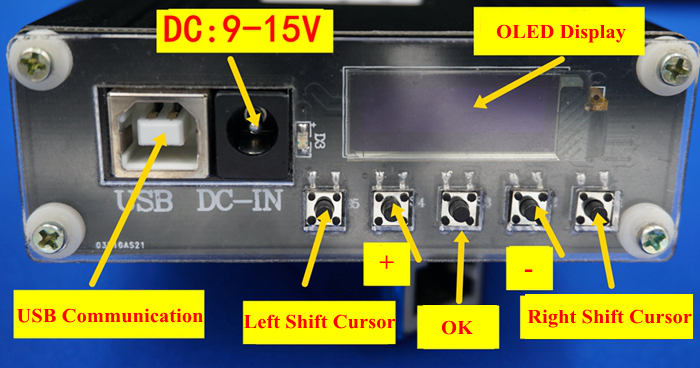

3. Front Panel:

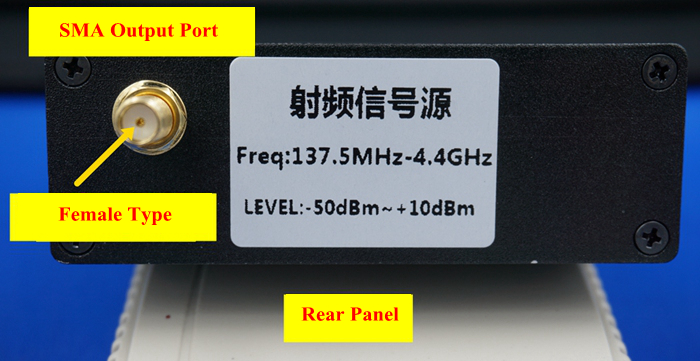

4. Rear Panel:
Measured Spectrum:

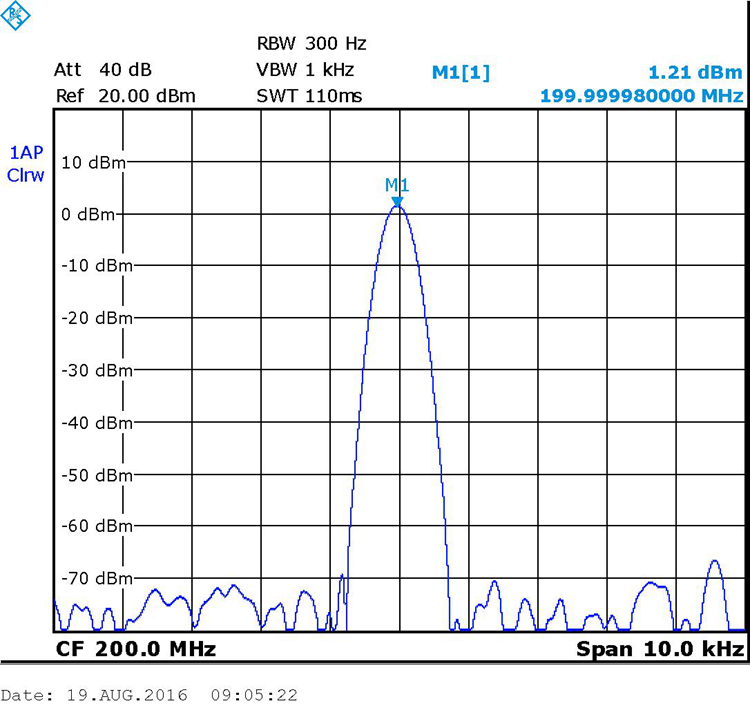

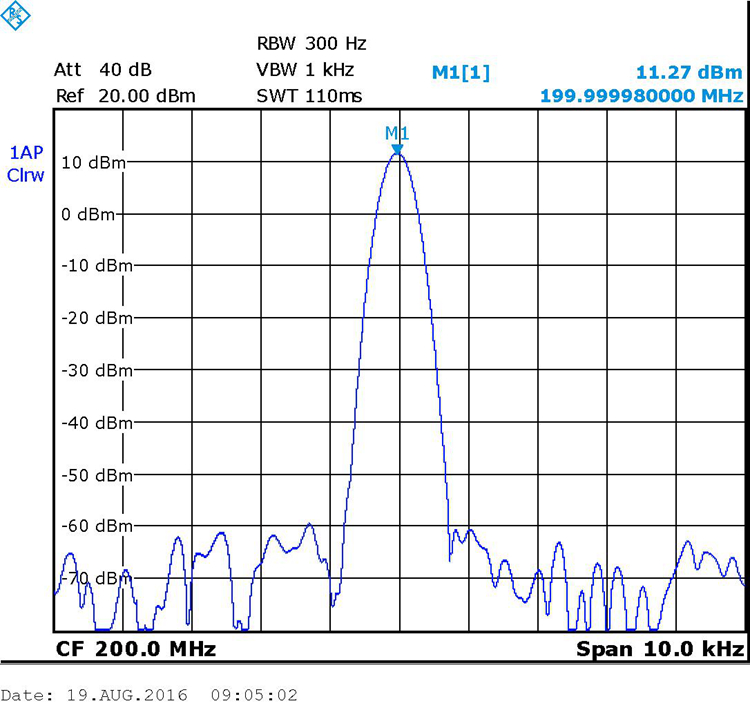

1. Test @0.2GHz

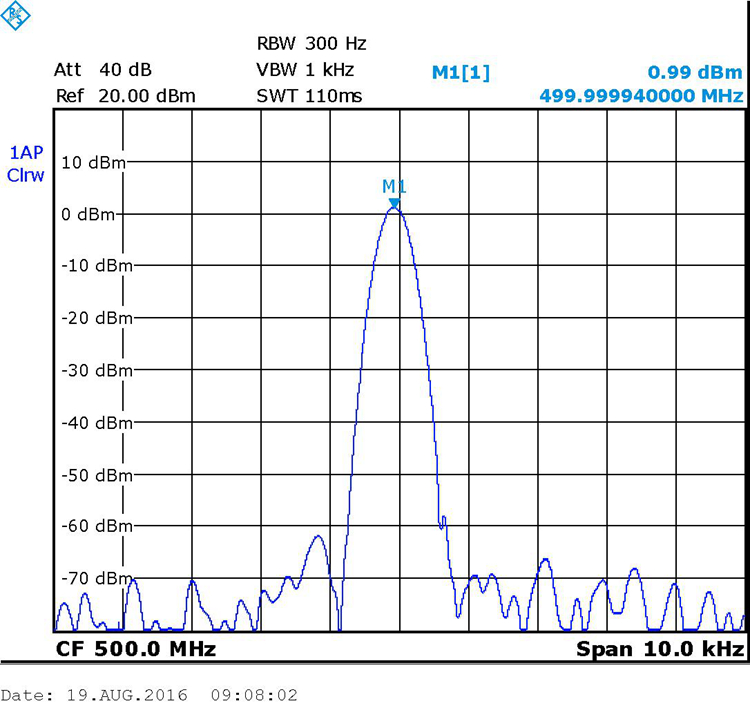

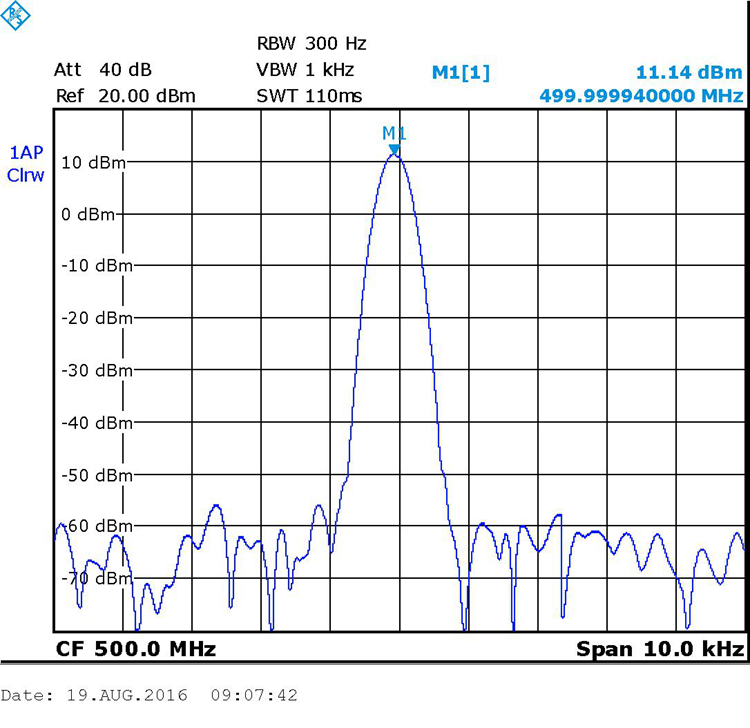

2. Test @0.5GHz

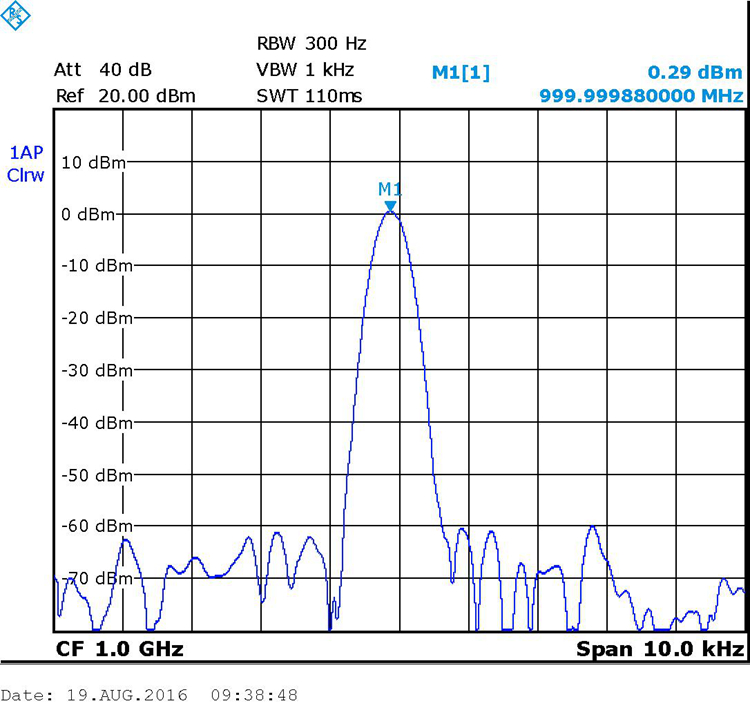

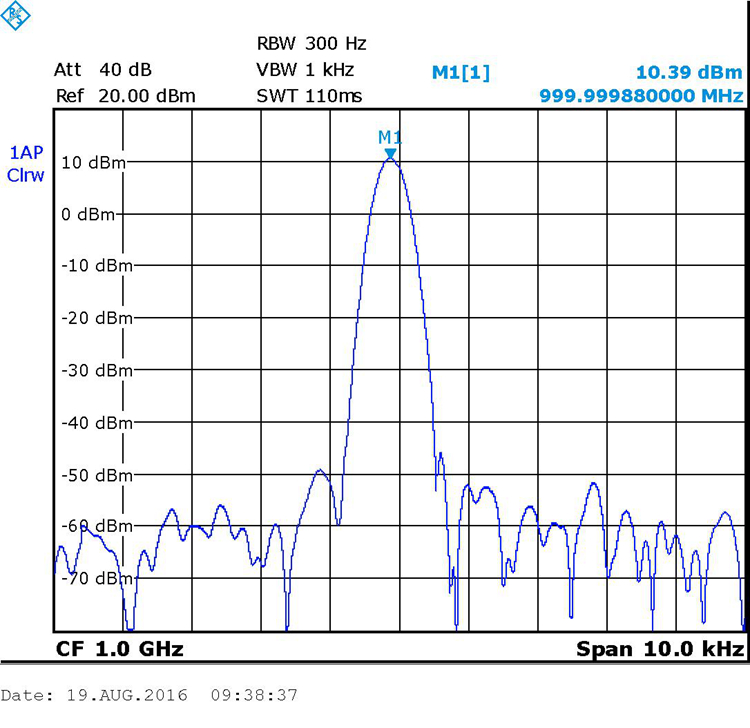

3. Test @1.0GHz

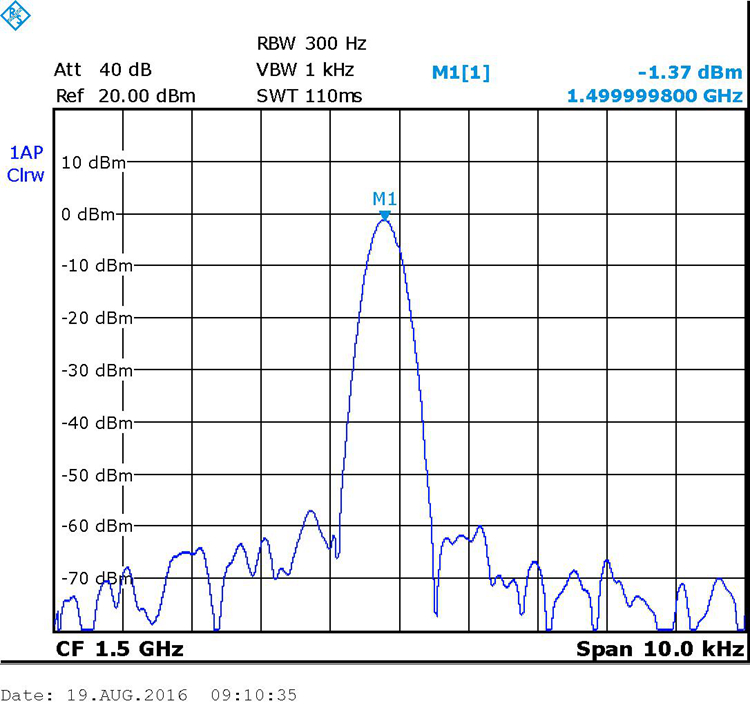

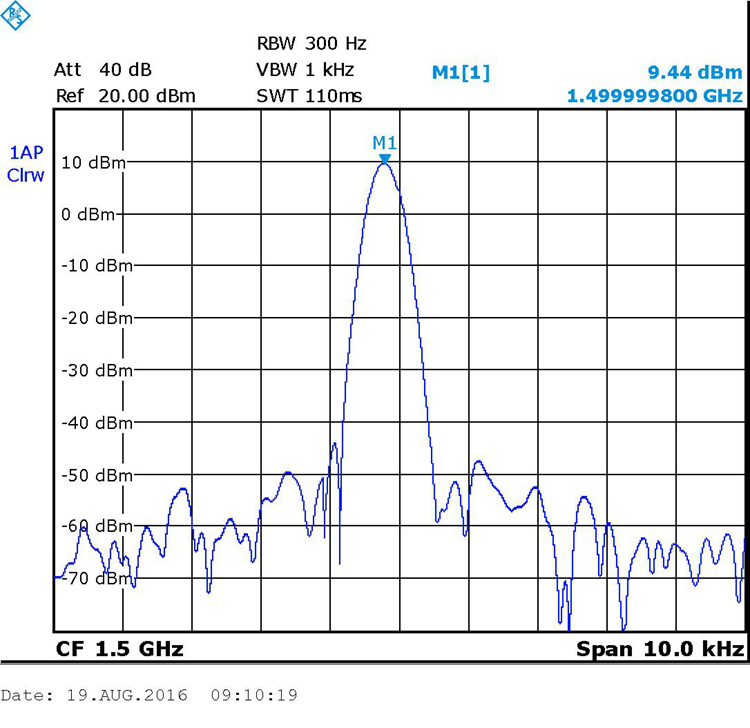

4. Test @1.5GHz

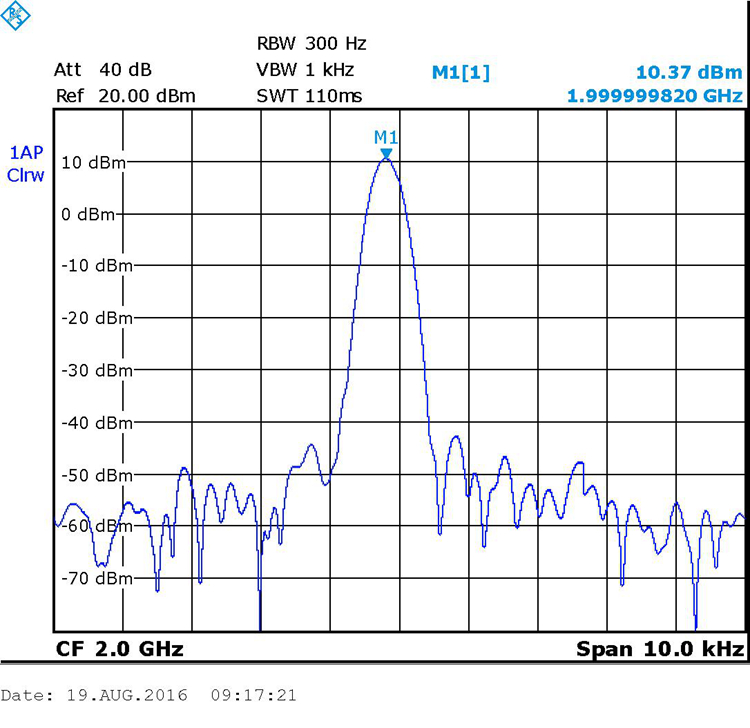

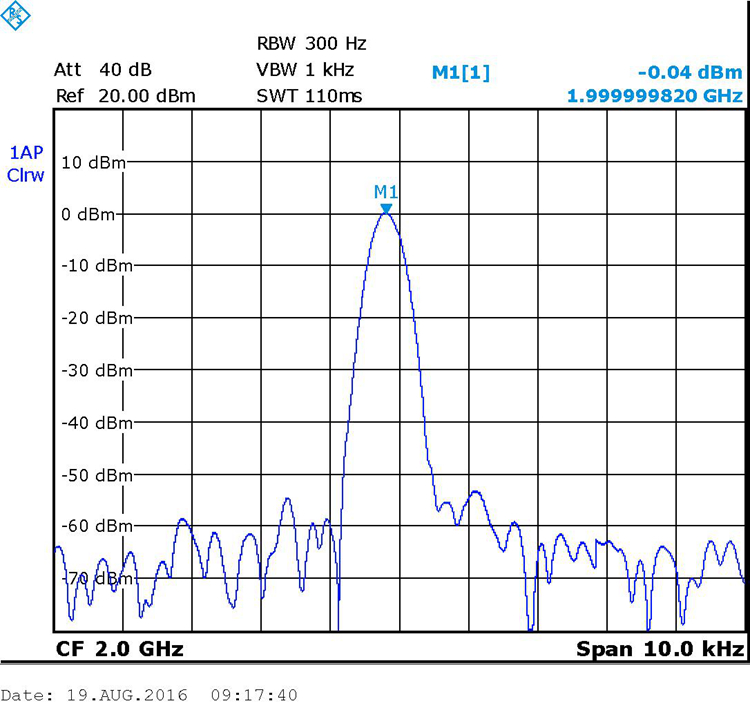

5. Test @2.0GHz

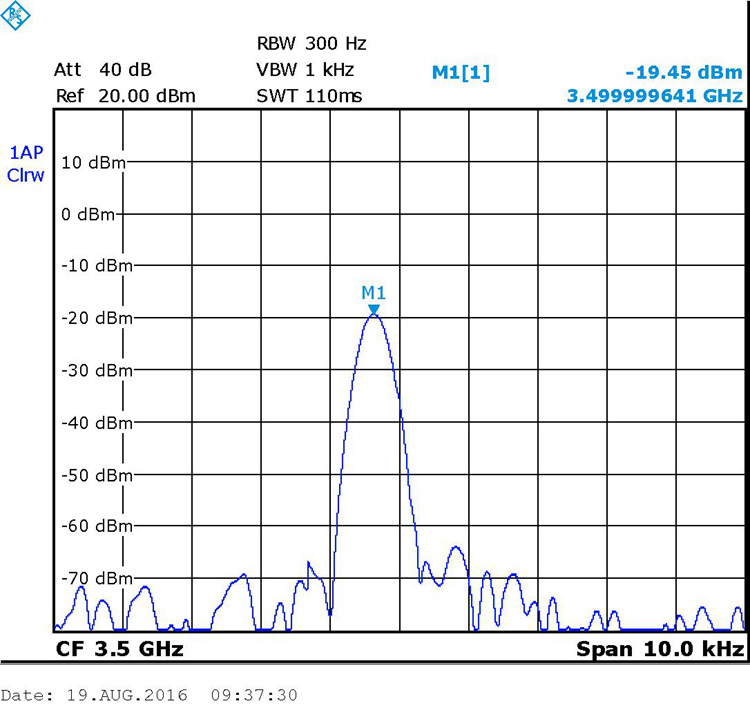

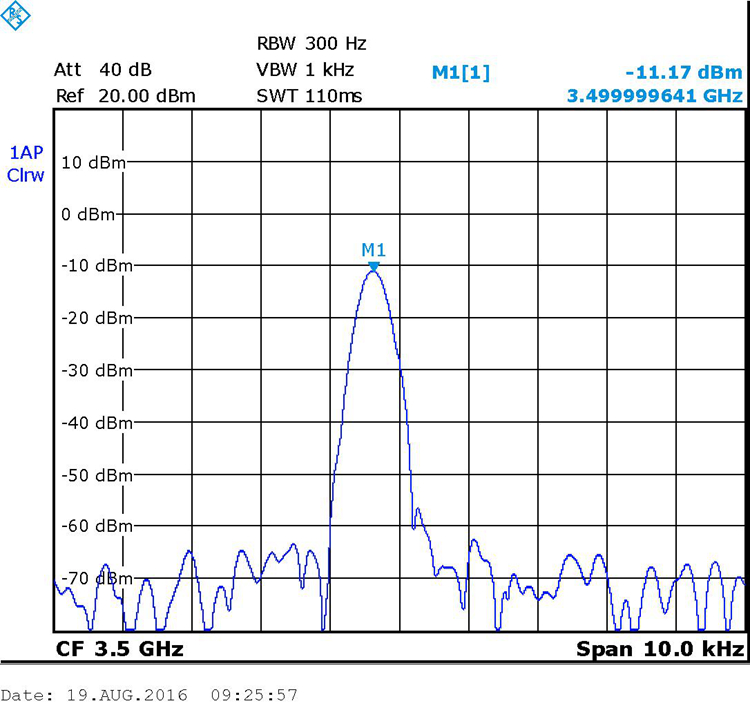

6. Test @Over 3GHz
