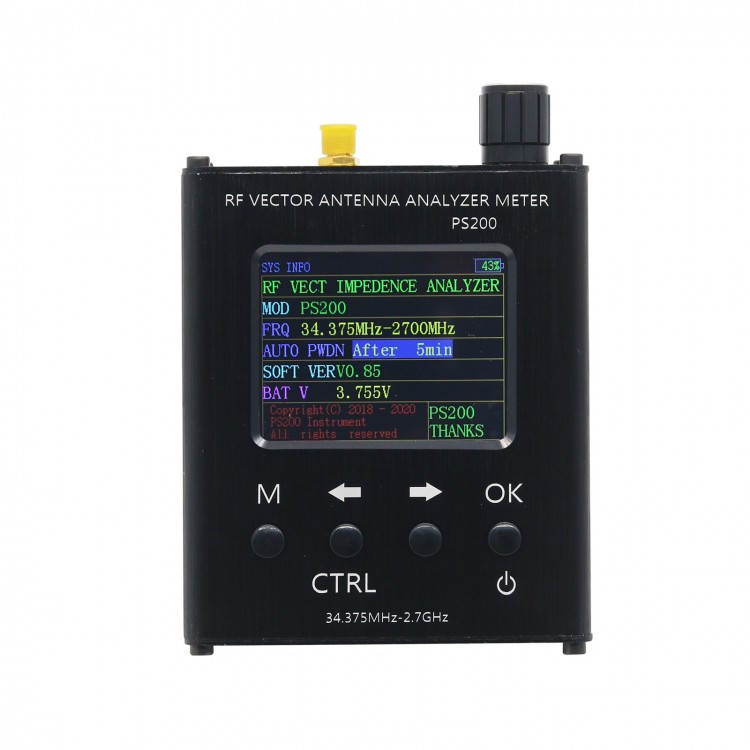

RF Vector Antenna Analyzer SWR Meter 34.375MHZ-2.7GHz For Resistance Impedance SWR S11 PS200 N1201SA+

Availability: In stock, usually dispatched in 1 business day

  • Price:$109.21
  • Price in reward points: 1092 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $107.03 $104.84 $101.57 $97.20 Contact US
Quantity:

RF Vector Antenna Analyzer SWR Meter 34.375MHZ-2.7GHz For Resistance Impedance SWR S11 PS200 N1201SA+

Description:

This instrument has four interfaces: single point measurement, scanning, system information, correction and calibration.

The default boot into single-point measurement interface.

Note: For the convenience of users, each time calibration correction options will automatically change to users' calibration. Meanwhile, in order to ensure the integrity of the calibration, the calibration process, the automatic shutdown function fails, the consistent boot.

Startup and Shutdown:
Hold down the CTRL key off press the power switch button.
The boot state, long press (2S above) the switch button, after the release, the instrument will shut down.
The boot state, long press (2S above) the switch button, after the release, the instrument will shut down.

Attention:
You need to hold down the second key and the fourth key at the same time to turn it on.

Recommended Usages:
1.In order to ensure the accuracy of measurement and calibration, preheat the instrument at least 15 minutes.
2.Try to use good quality RF cable and connectors.
3.Calibrated cable marked to the next may not need to calibrate and direct use.
4.Test cable process affect the measurement accuracy, it is recommended that, where possible, do not choose too long test cable.
5.Before measurement and calibration, make sure you are not in a strong wireless signal, so as to avoid interference caused by inaccurate measurements.
6.If the impedance measurements themselves do not understand, you can refer to a vector network analyzer instructions and tutorials. This instrument is equivalent to a single-port vector network analysis.

Specifications:
- Frequency: 34.375MHZ-2.7GHz
- Spacing: 1kHz
- Display: 2.4-inch TFT Pixel 320x240 (QVGA)
- Nominal Capacity: 2000mAH(7.4Wh)
- Power Dissipation: <1.5W
- Charging Current: 400mA
- Charging Port: USB(For charging only)
- Automatic Power Off: Adjustable(Always on; 5mins~60min)
- Measure Facts: Resistance/reactance/SWR/s11
- Resolution Ratio: 4bits effective digits
- Frequency Accuracy: ±5ppm
- Connector: SMA-K
- Measuring Range:
* Impedance: 0.1Ω~1000Ω(Absolute value of impedance);
* SWR: 1.000~65;
* s11(dB): 0dB to -60dB
- Error (single point measurement):
* Impedance: <Absolute value of impedancex3%±0.1Ω(Z<200Ω, <1.5GHz)
* SWR: <Effective readingx10%±0.1
* s11 (dB/°): 0.1 dB /5° (0dB to -10dB); 1 dB /10° (-10dB to -20dB); 5dB/20° (-20dB to -40dB)
- Directivity: <35dB(35MHz~2GHz after calibration); <30dB(2GHz~2.7GHz)
- Scan Points: 280
- Output Level: -18dBm
- Working Temperature: 0℃~40℃
- Atmospheric Pressure: 860hPa~1060hPa
- Dimensions: 98 x 86 x 30mm

Package Included:
- 1 x Set of Antenna Analyzer

Note: Please note that the original model number of this item is N1201SA+.
