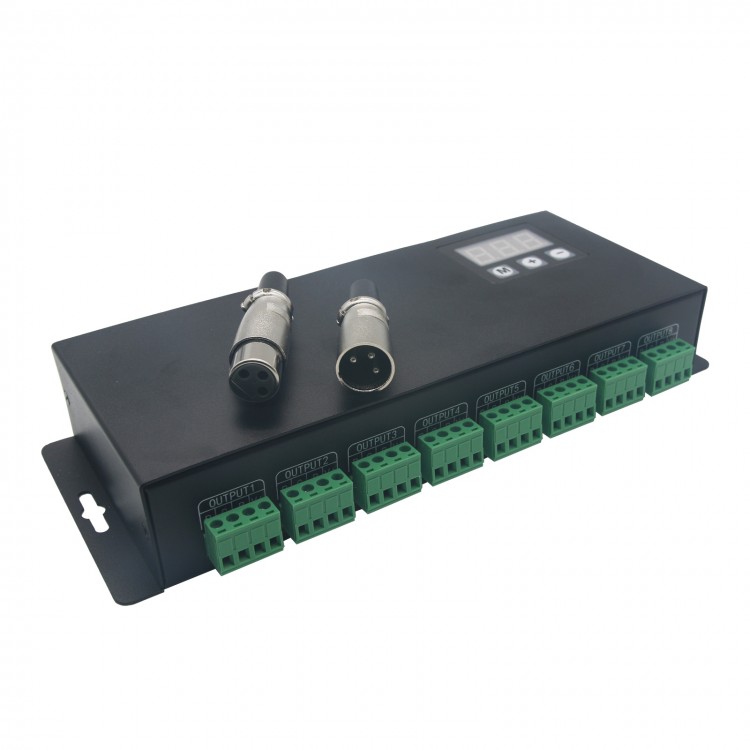

RGB DMX Decoding Driver 24 Channel DMX512 Power Decoder RGB LED Controller BC-824
Introduction:

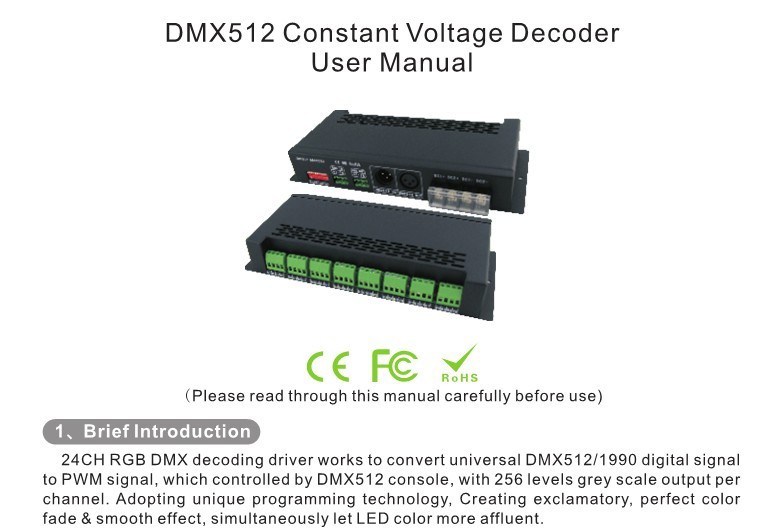

24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal, which controlled by DMX512 console, with 256 levels grey scale output per channel. Adopting unique programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED color more affluent.

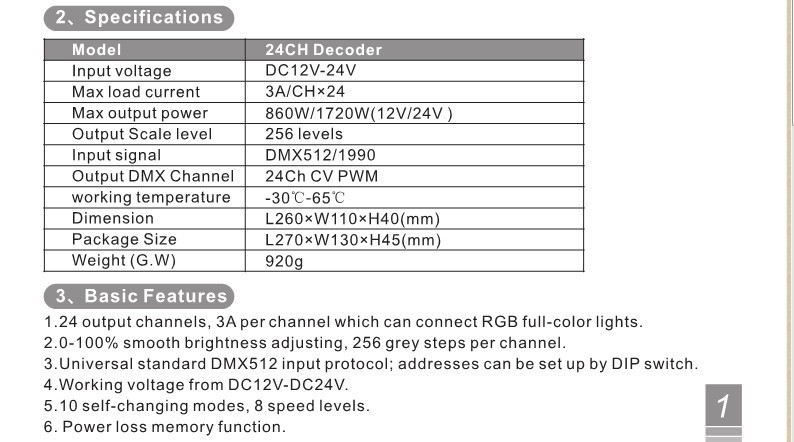

Product parameter:
- Model: BC-824
- Input voltage: DC12V-24V
- Max load current : 3A/CH×24
- Max output power: 860W/1720W(12V/24V )
- Output Scale level: 256 levels
- Input signal: DMX512/1990
- Output DMX Channel: 24Ch CV PWM
- Working temperature: -30-65 DEG C
- Dimension: L260×W110×H40(mm)
- Package Size: L270×W130×H45(mm)
- Weight (G.W): 920g
Feature function:
- 24 output channels, 3A per channel which can connect RGB full-color lights.
- 0-100% smooth brightness adjusting, 256 grey steps per channel.

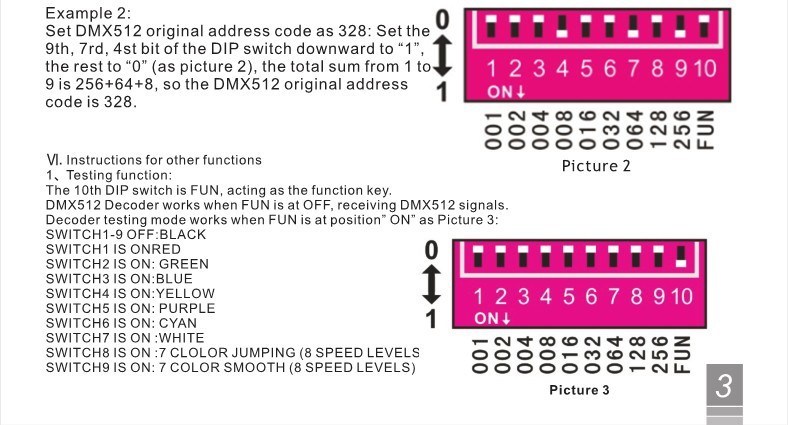

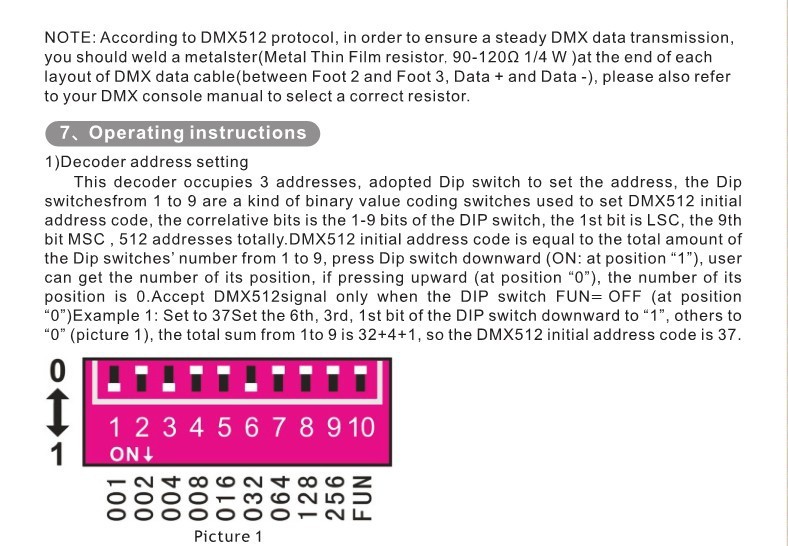

- Universal standard DMX512 input protocol; addresses can be set up by DIP switch.
- Working voltage from DC12V-DC24V.
- 10 self-changing modes, 8 speed levels.
- Power loss memory function.
Package list:
- 1 x RGB DMX Decoding Driver
