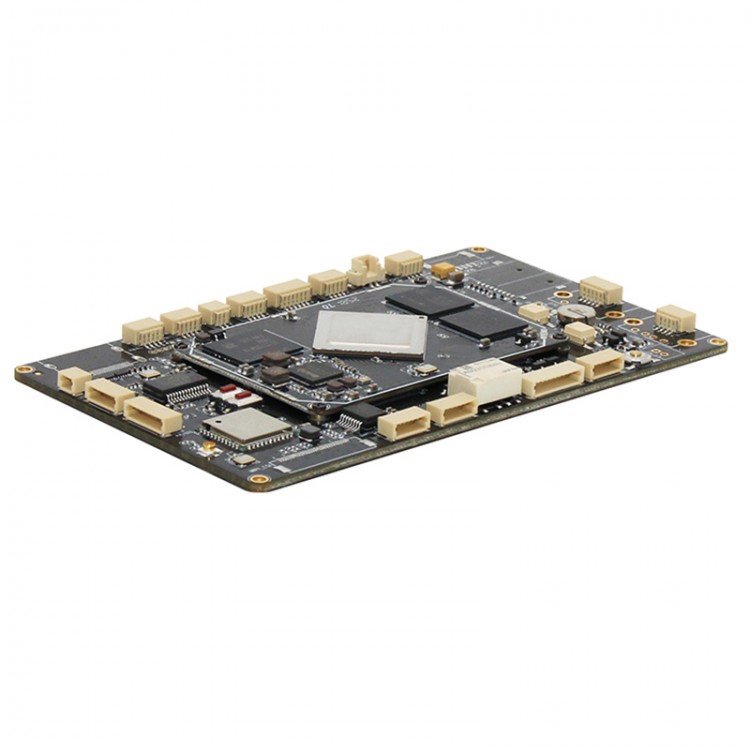

RK3288 Camera Development Board Quad-Core for Facial Recognition Andriod 5.1 DLT-3288C Only Board

RK3288 Camera Development Board Quad-Core for Facial Recognition Andriod 5.1 DLT-3288C Only Board

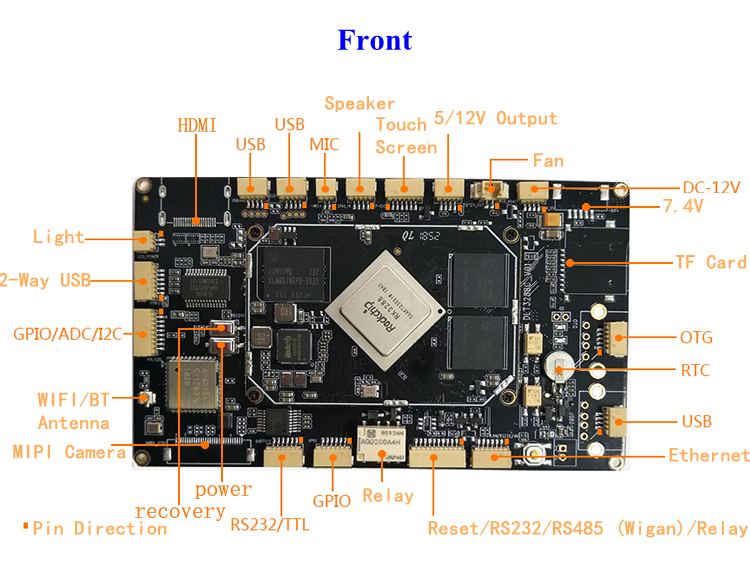

Main Functions:
- CPU: RK3288, Quad-core, 1.8GHz
- Memory: 2G
- Built-in Memory: EMMC 8G, 16G, 32G Optional
- Decoding Resolution: up to 3840*2160
- Operation System: for Android 5.1
- Network: Ethernet, Optional WIFI/Bluetooth Module, External Expansion 3G/4G Module
- Video Display: Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.
- Picture Format: Support BMP, JPEG, PNG, GIF, etc.
- USB2.0 Port: 5-Way USB HOST (WAFER Socket); 1-Way OTG (WAFER Socket)
- MIPI Camera: 30pin FPC Port for 1300w camera
- Serial Port: 2-Way RS232 Serial Port (One can be used for TTL), 1-Way TTL, 1-Way RS485
- WIFI/BT: Built-in 2.4GHz WiFi, Bluetooth 4.2 (Optional)
- Ethernet: One 10/100M Ethernet Port (WAFER Socket)
- TF Card: TF Card (Optional)
- MIPI Output: to Drive LCD Screen with Multiple Resolutions
- EDP Output: to Drive LCD Screen with Multiple Resolutions
- HDMI Output: 1-Way, for 1080P output (Optional)
- Audio Input Output: Built-in Single Amplifier Output (Optional Dual Amplifier), External Microphone
- Wigan Input: 1-Way; Optional RS485, Wigan Input
- Light: 1-Way (Can be controlled by software)
- GPIO: 6-Way (Can be controlled by software)
- Fan: 1-Way (Can be controlled by software)
- Relay: 1-Way (Can be controlled by software)
- 5V/12V Input: 1-Way + 1-Way, the default value is 0V when power on
- Button: ON/OFF, Upgrading Button
- RTC: Support
- ON/OFF Timer: Support
- Operating Temperature: -20 to 70℃

Package Included:
- 1 x Camera Development Board

Note: Only development board is included. Cameras are not included in this package.
