RM520NGLAA-M20-SGASA IoT 5G Global Remote Control Network Module Support GPS Positioning with QTMR0021ZJ Adapter Board

RM520NGLAA-M20-SGASA IoT 5G Global Remote Control Network Module Support GPS Positioning with QTMR0021ZJ Adapter Board

Description:
- RM520N-GL is a 5G Sub-6 GHz module designed specifically for IoT/eMBB applications. Adopting for 3GPP Release 16 technology and supporting both 5G NSA and SA modes.
- The RM520N-GL adopts M.2 packaging and is compatible with the 5G module RM50xQ series, LTE-ACat6 module EM06, Cat12 module EM12/EM12xR/EM120K series, and Cat16 module EM160R-GL, making it convenient for customers to migrate from LTE-A to 5G.

Advantages:
- Specially designed for IoT/eMBB applications, supporting both 5G/4G/3G M.2 modules.
- Support comprehensive coverage of multiple network standards such as 5G and LTE-A.
- Supports NSA and SA modes.
- Integrated multi constellation GNSS receiver to meet the demand for fast and accurate positioning in different environments.
- High speed, low latency, and high stability.
- LTE:
  Downstream: LTE Cat 19
  Upstream: LTE Cat 18
- 3G HSPA+:
  Downstream: 42Mbps
  Upstream: 76Mbps

5G Module Specification:
- Area/operator: global
- Module size: 30 x 52 x 2.3mm
- Module weight: about 8.7g
- Power supply voltage: 3.135 - 4.4V, typical value 3.7V
- Power consumption: 195uA at shutdown; 4.7mA at sleep; 51mA at USB2.0, spare; 70mA at USB3.0, spare
- Working temperature: -30℃ ~ +75℃
- Expansion temperature: -40℃ ~ +85℃

Frequency Band Information:
- 5G NR:
  NSA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
- LTE:
  LTE-FDD: downstream Cat12, upstream Cat13
  LTE-TDD: B1/3/5/8
  LAA: B34/ 38/ 39/ 40/ 41
- UMTS: WCDMA B1/ 2/ 4/ 5/ 8/ 19
- GNSS: GPS/GLONASS/BDS/Galileo

Certification:
- Mandatory / consistency certification: for GCF/ PTCRB/ CE/ Anatel/ CCC/ RCM/ IC/ FCC/ JATE/ TELEC/ KC/ NCC
- Operator certification: for T-Mobile/ AT&T/ Versizon/ Deutsche Telekom
- Other certification: RoHS

Data transmission speed rate:
- 5G SA Sub-6: DL 2.4Gbps; UL 900Mbps
- 5G NSA Sub-6: DL 3.4Gbps; UL 550Mbps
- LTE: DL 1.6Gbps; UL 200Mbps
- WCDMA: DL 42Mbps; UL 5.76Mbps

Interfaces:
- (U)SIM: x 2
- USB2.0: x 1
- USB3.0/3.1: x 1
- PCIe4.0: x 1
- Antenna (Sub-6/GNSS): x 4

Outstanding Characteristics:
- DTMF: support
- DFOTA: support

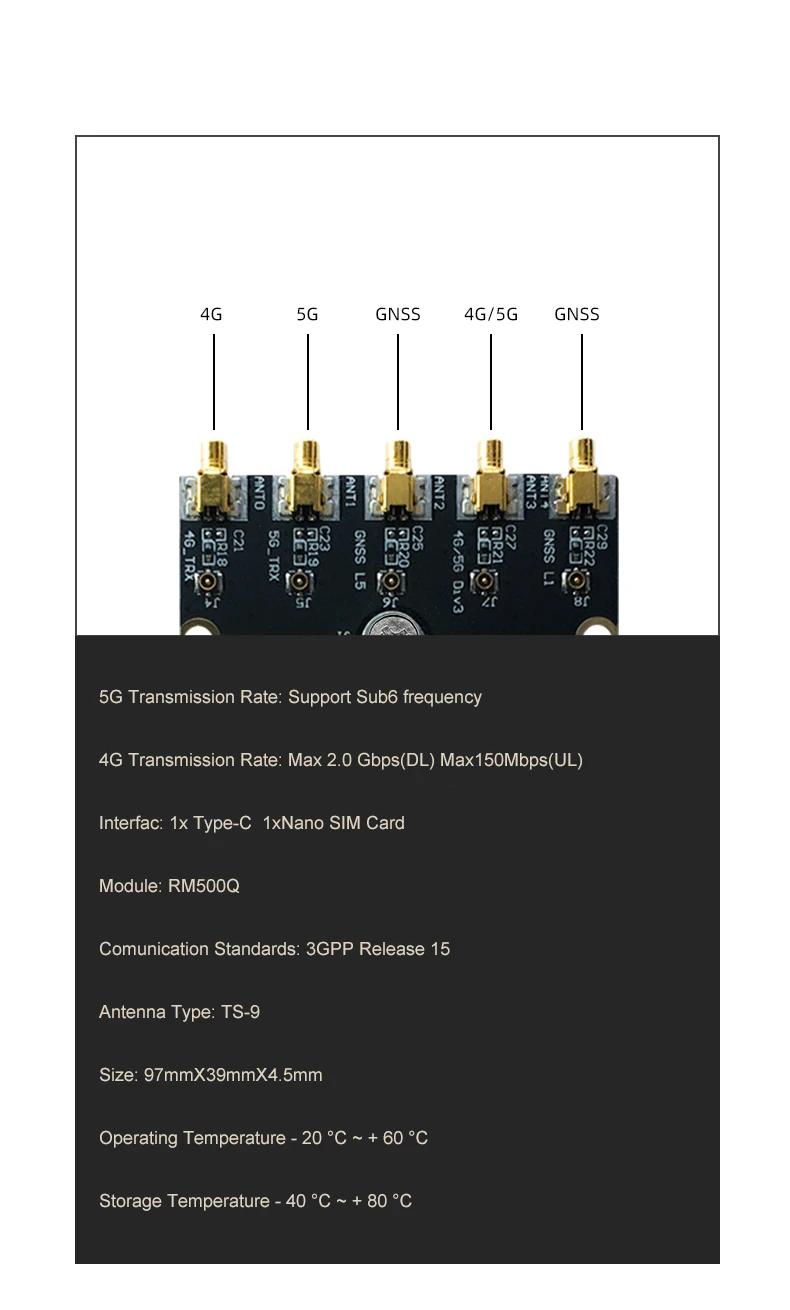

Adapter Board Specification:
- 5G transmission speed rate: maximum speed rate 2.5Gbps (downstream)/900Mbps (upstream) (theoretically)
- 4G transmission speed rate: maximum 2.0Gbps (DL); maximum 150Mbps (UL) (theoretically)
- Interface: USB-C3.0, Nano SIM card slot, M.2 interface
- Size: 90 x 40 x 4.5mm
- Working temperature: -20℃ ~ 60℃
- Storage temperature: -40℃ ~ 80℃

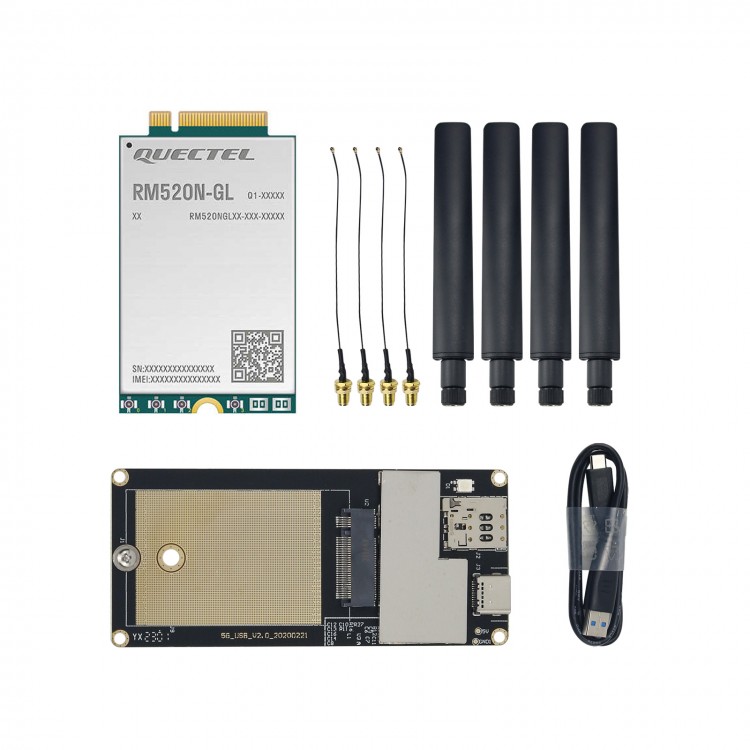

Package Included:
- 1 x 5G Module
- 1 x Adapter Board
- 1 x USB-A to C Data Cable

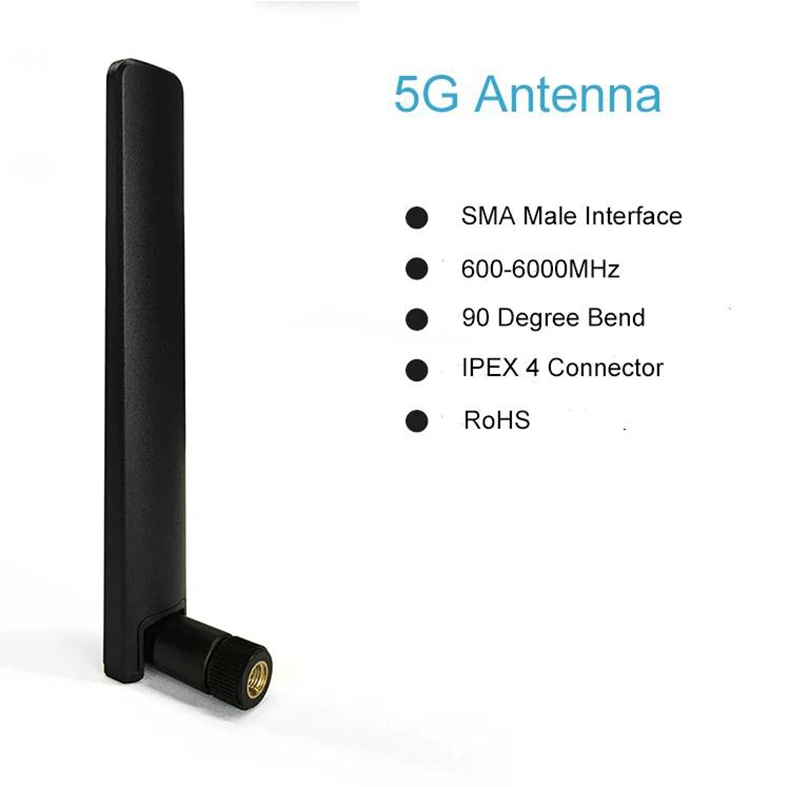

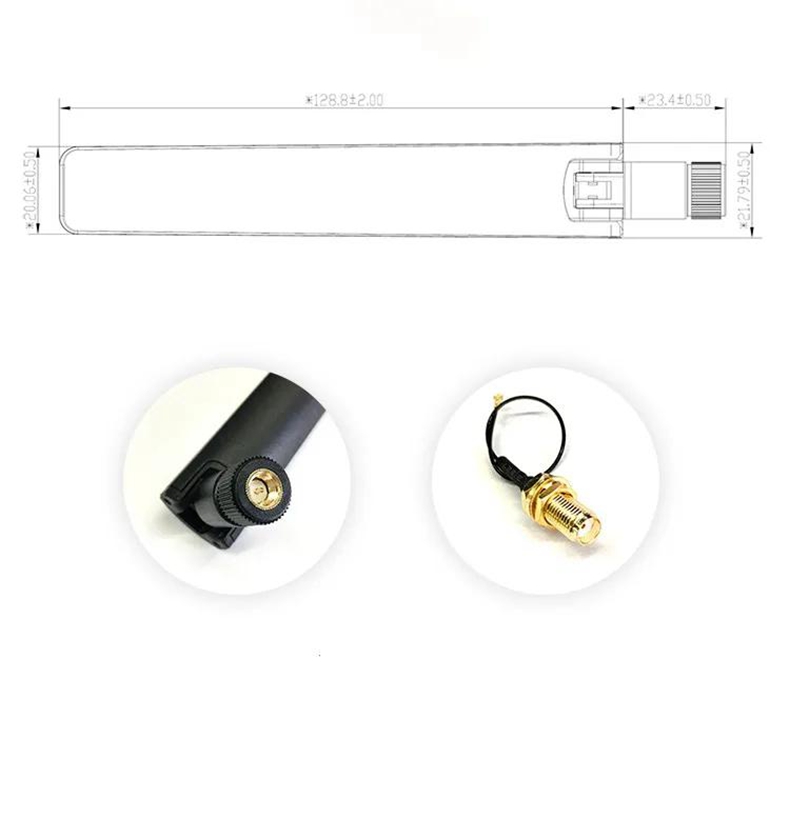

- 4 x Antennas
